Wheel Bearing: Removal

Remove brake guard and remove snap ring for angular ball bearing. See Fig 1 .

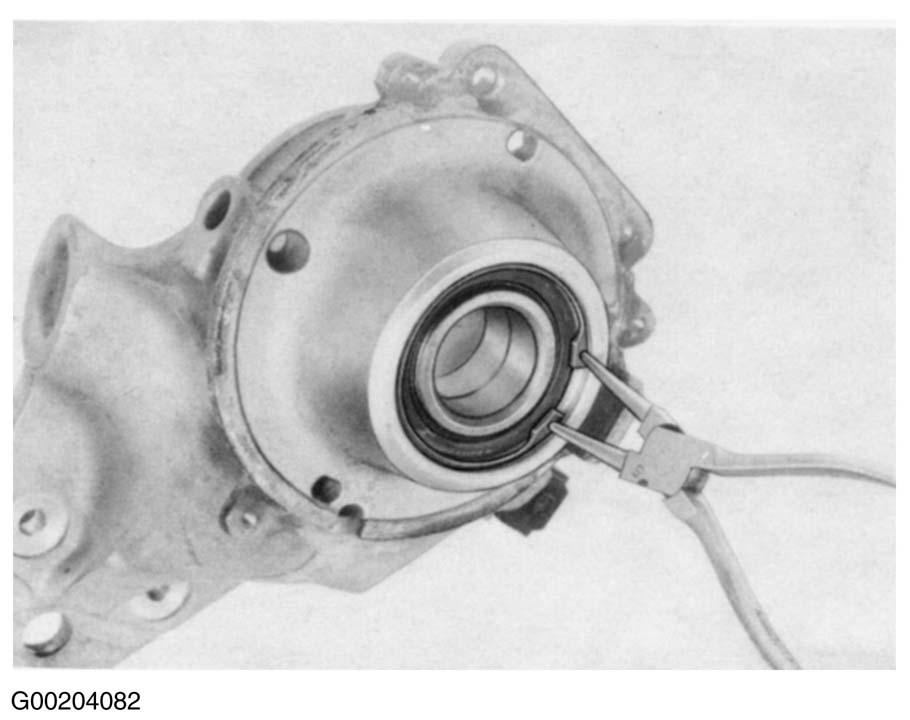

Fig 1: Removing Ball Bearing Snap Ring
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Heat trailing arm to 248-302°F (120-150°C). Mount arm on a suitable base. Use Special Tool VW 432 or equivalent bearing driver to press out bearing. See Fig 2 .

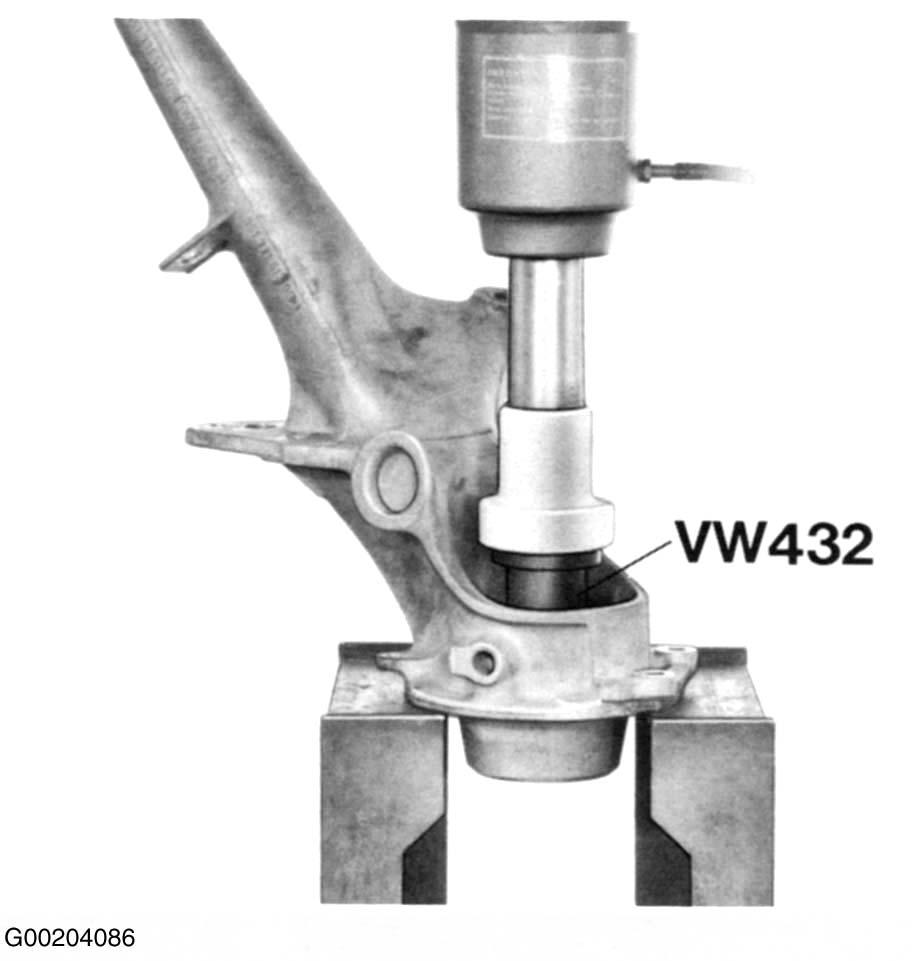

Fig 2: Using Special Tool VW 432 To Remove Angular Ball Bearing From Control Arm
Courtesy of PORSCHE OF NORTH AMERICA, INC.
If necessary, press inner bearing race out of wheel hub using an extractor and Special Tool P 297 A or equivalent driver. See Fig 3 .

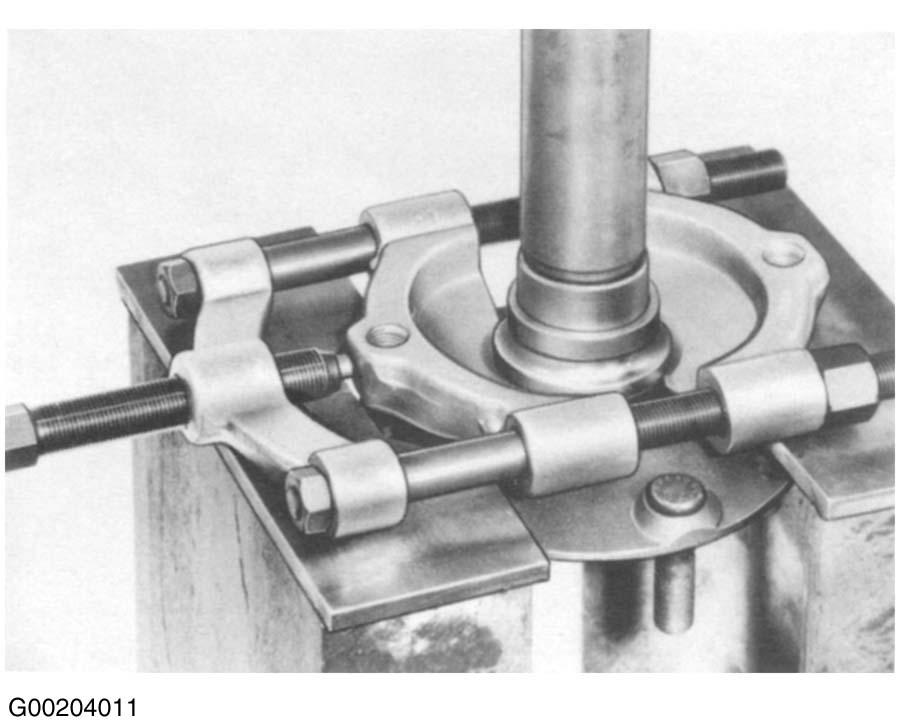

Fig 3: Using Special Tool P 297 A & Extractor To Remove Inner Bearing Race From Wheel Hub

Courtesy of PORSCHE OF NORTH AMERICA, INC.
