Home >> Porsche >> 1988 >> 924 Automatic >> Repair and Diagnosis >> Suspension >> Rear Suspension >> Suspension - Rear >> Removal & Installation >> Notes

Removal & Installation: Notes

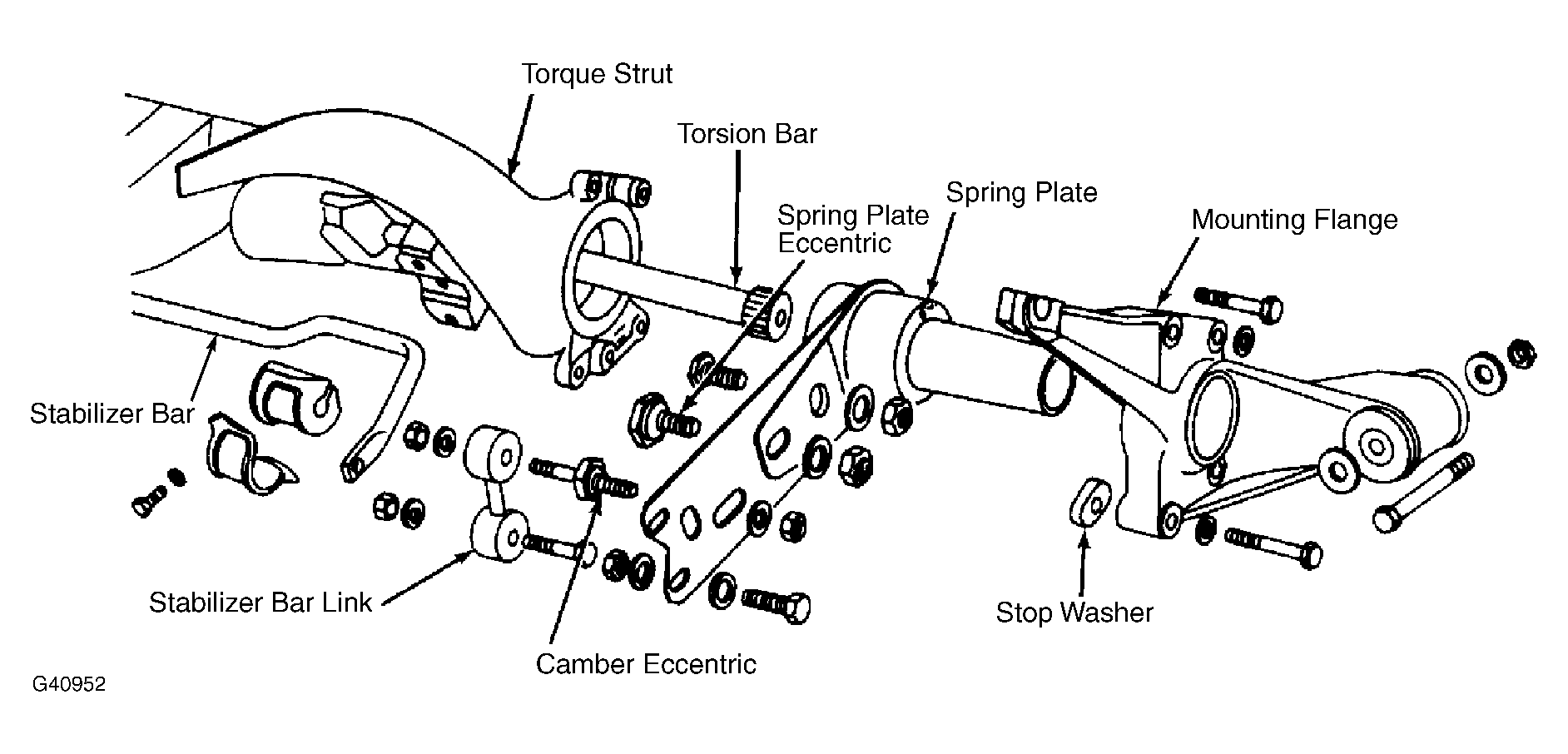

Fig 1: Exploded View of Rear Suspension

G40952
