Section 3 (Wiring Diagrams): Wiring Diagram

WARNING: This page is about a different car, the 1987 Porsche 928. However, it is still accessible from the selected car via links, so may be relevant.

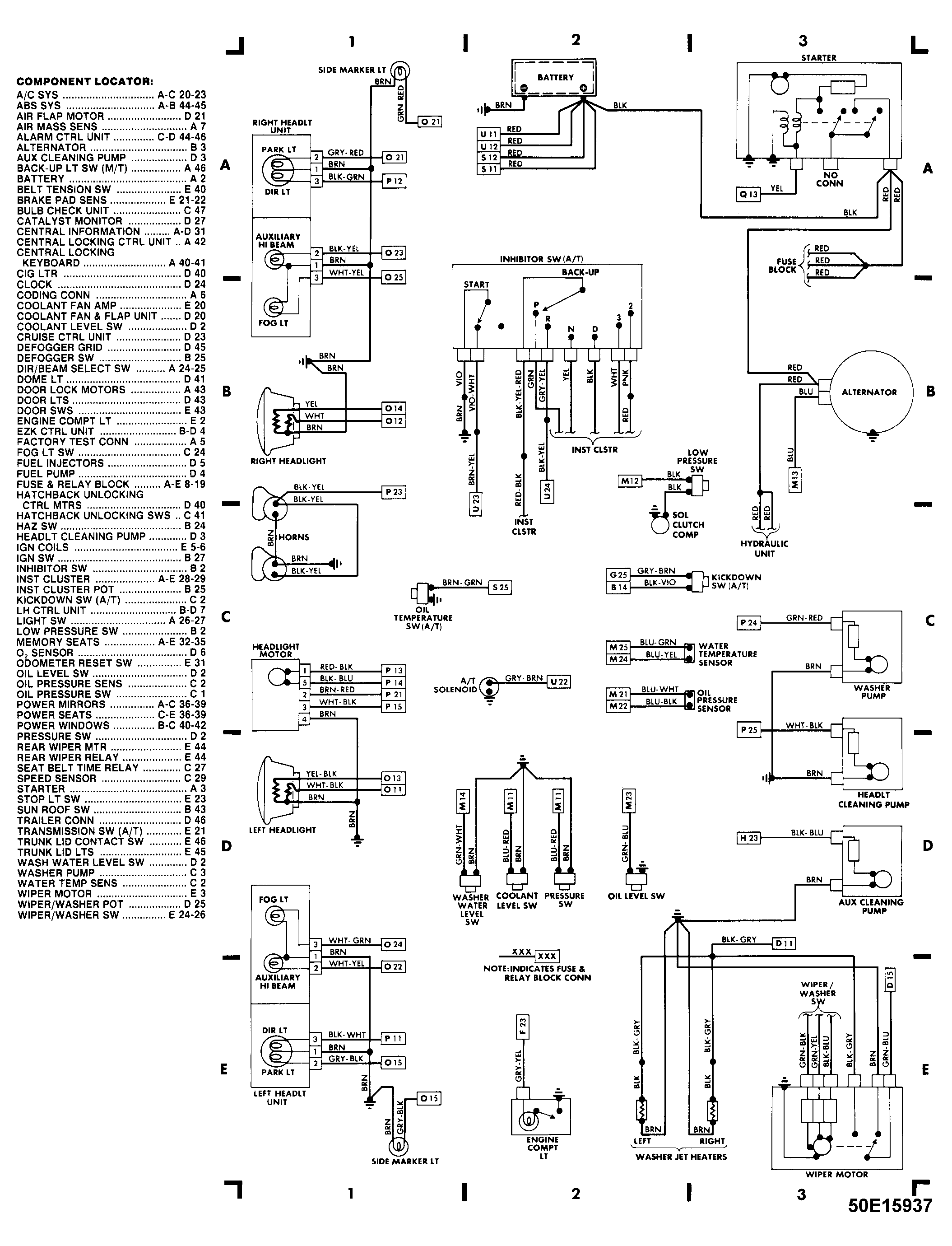

Fig 1: Engine Compartment (Grids 1-3)

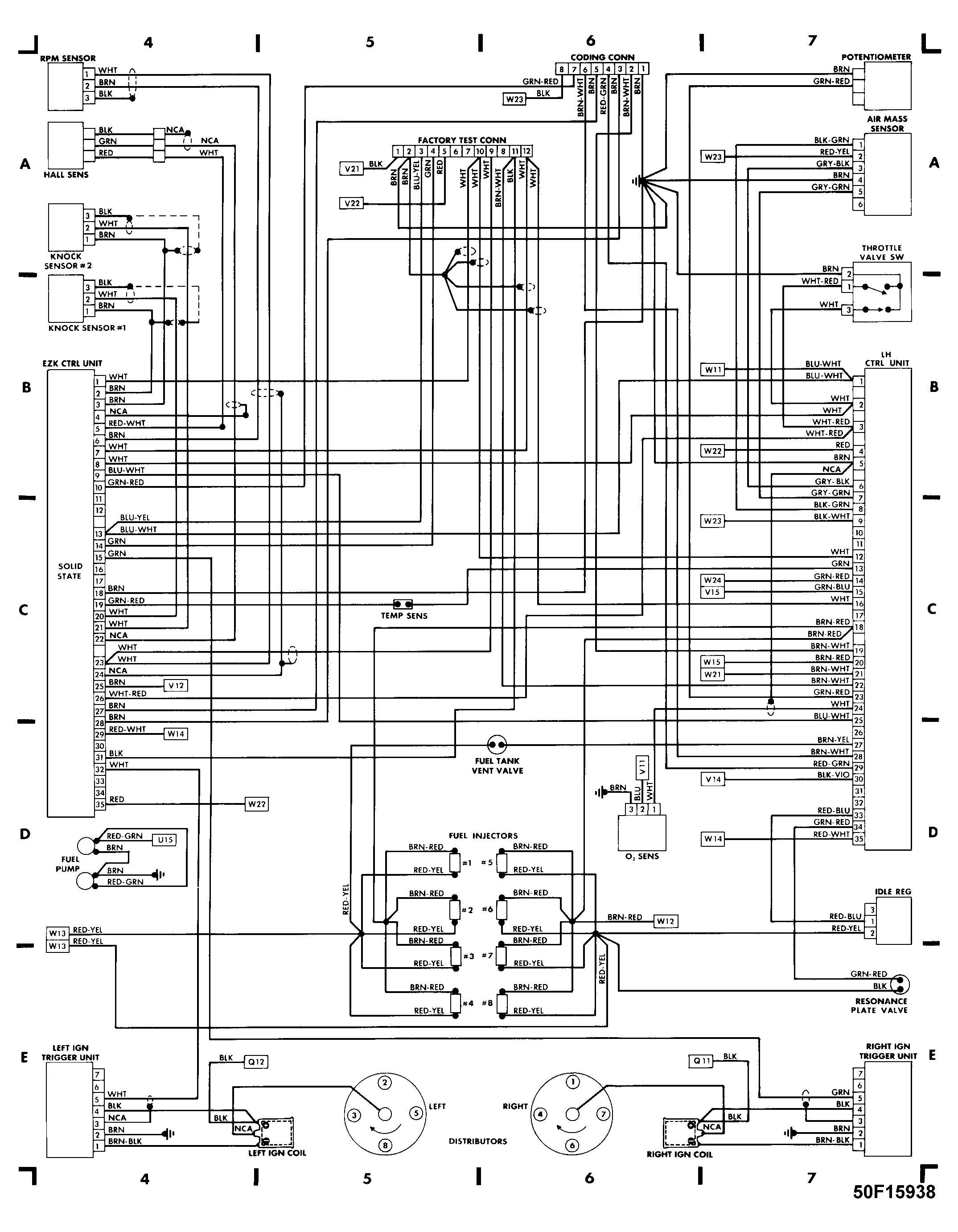

Fig 2: Engine Compartment (Cont.) (Grids 4-7)

Fig 3: Fuse & Relay Block (Grids 8-11)

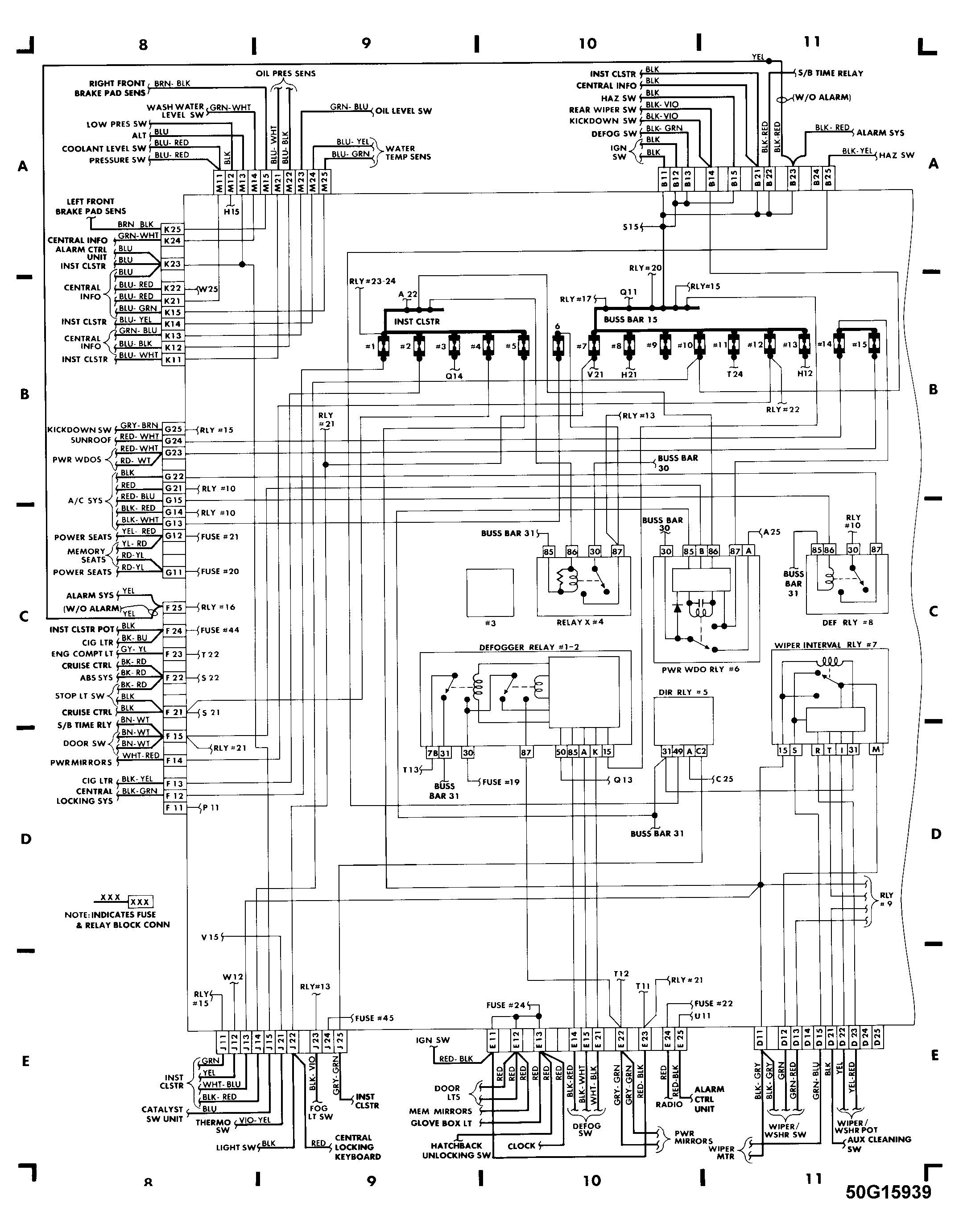

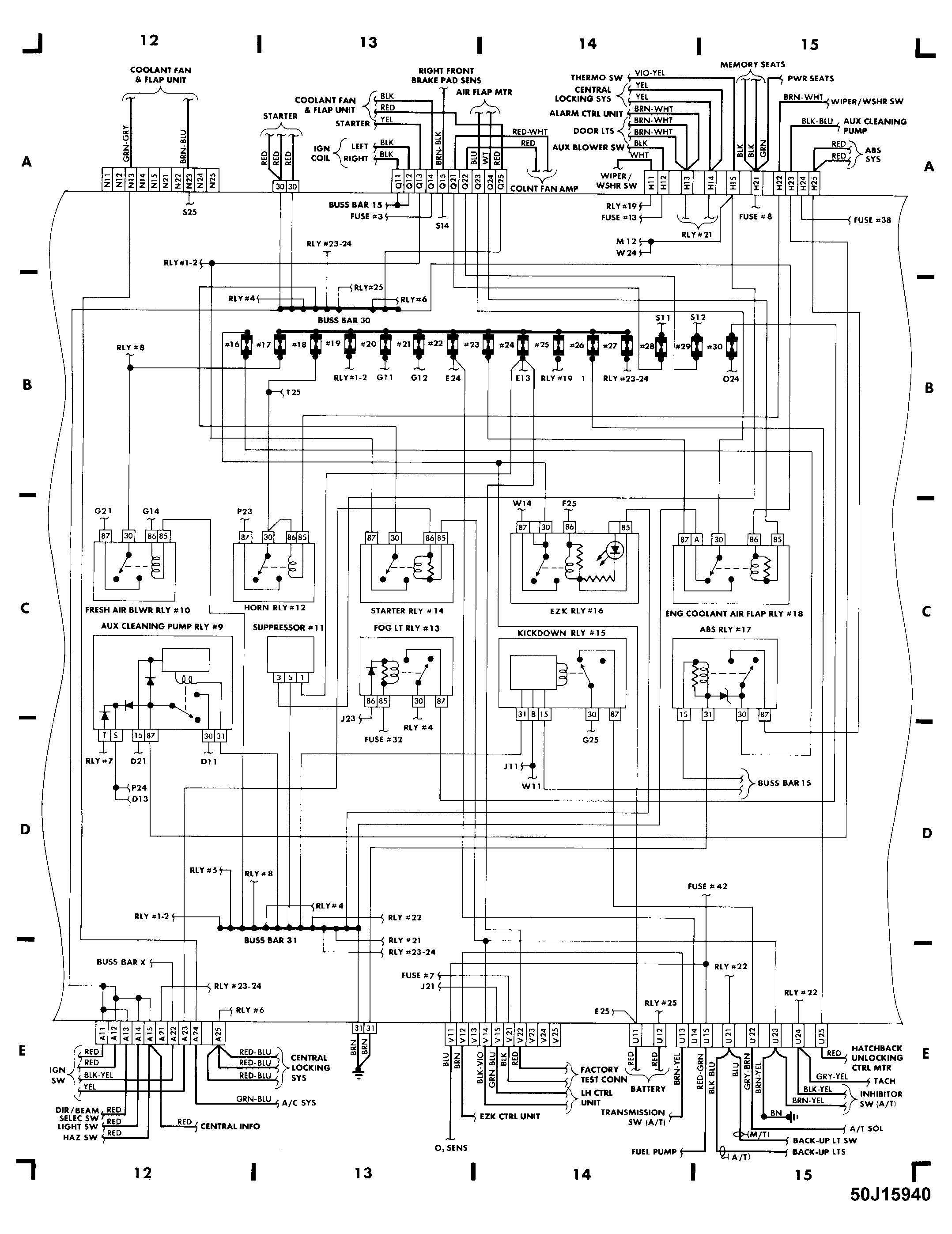

Fig 4: Fuse & Relay Block (Cont.) (Grids 12-15)

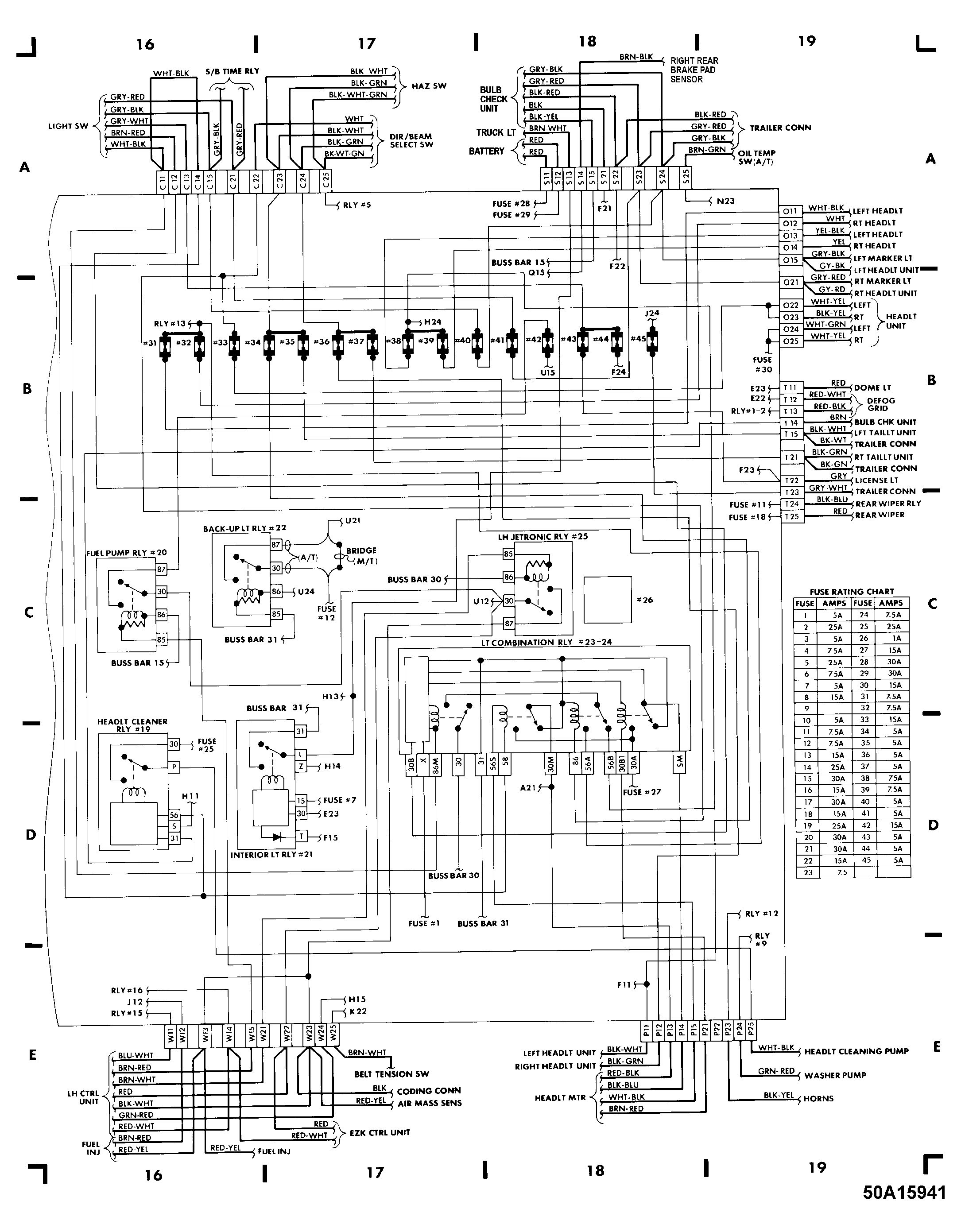

Fig 5: Fuse & Relay Panel Block (Grids 16-19)

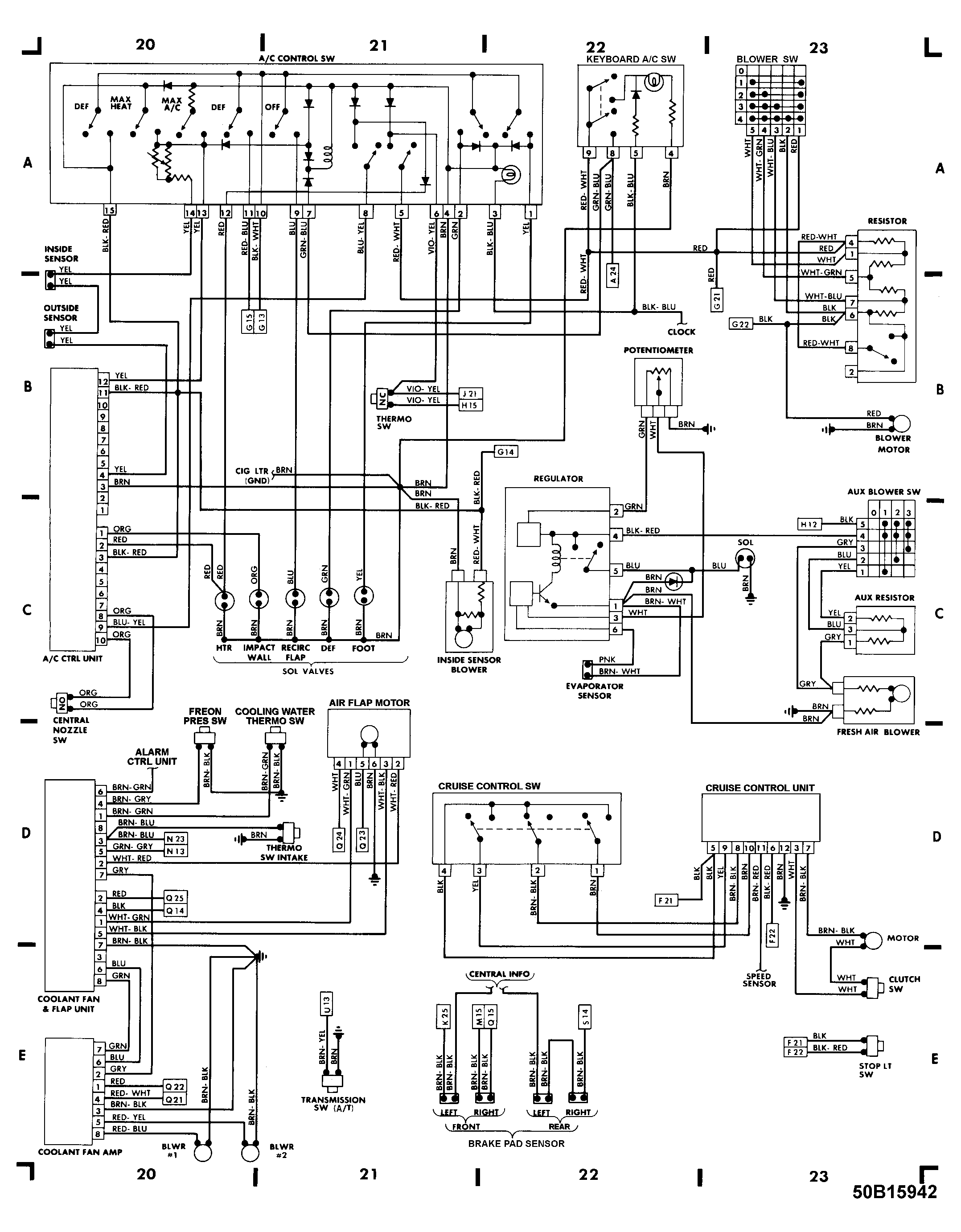

Fig 6: Underdash (Grids 20-23)

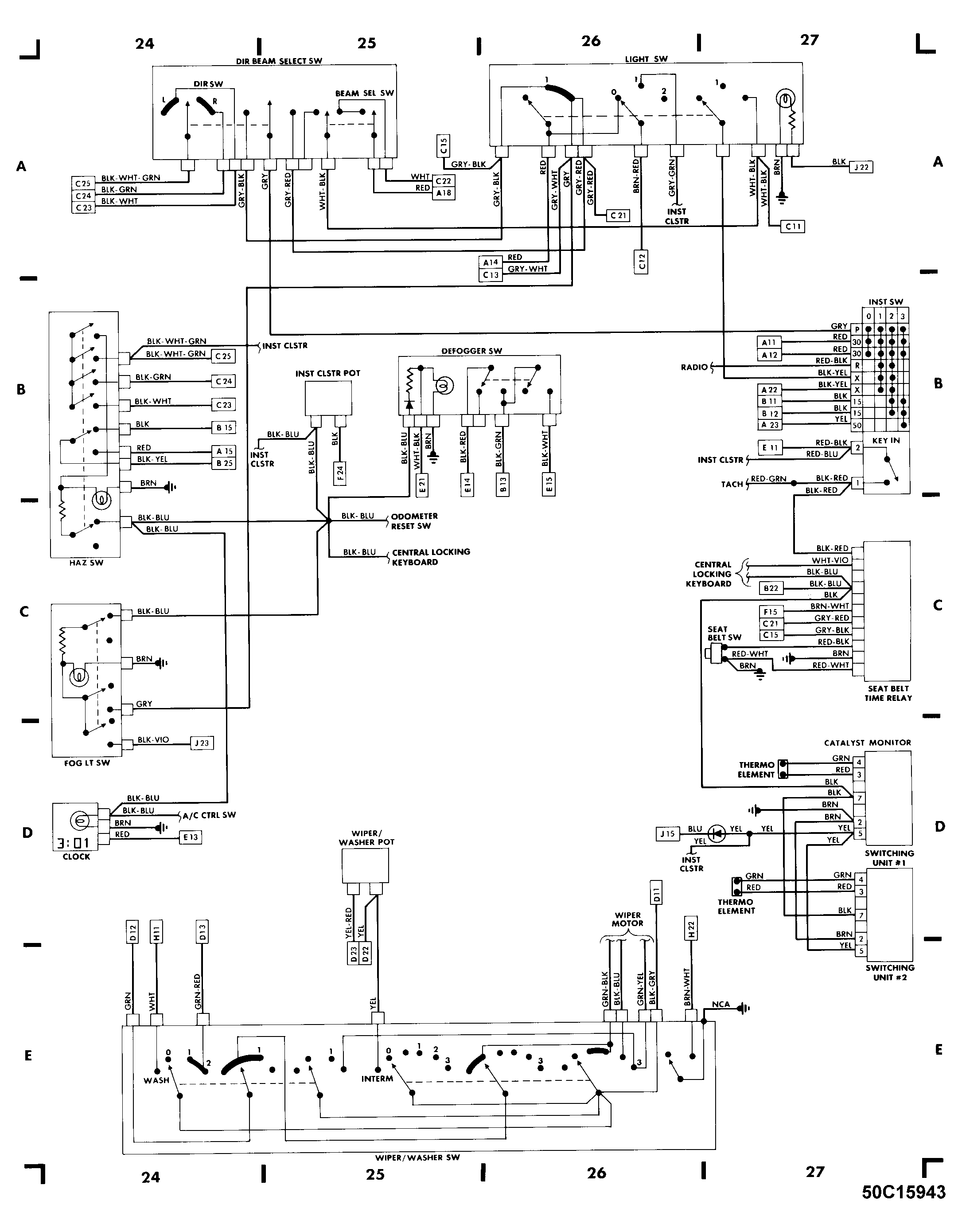

Fig 7: Underdash (Cont.) (Grids 24-27)

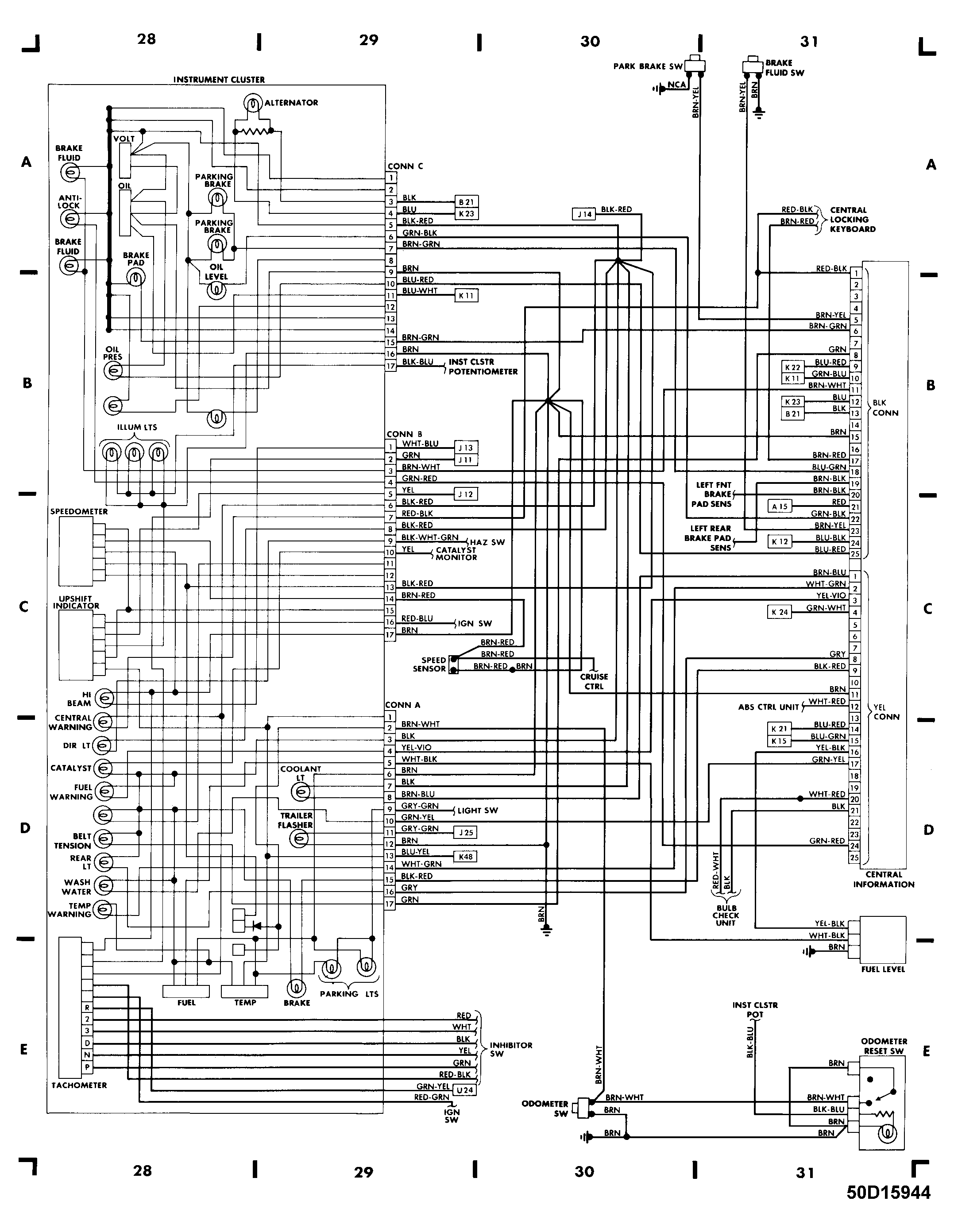

Fig 8: Instrument Panel (Grids 28-31)

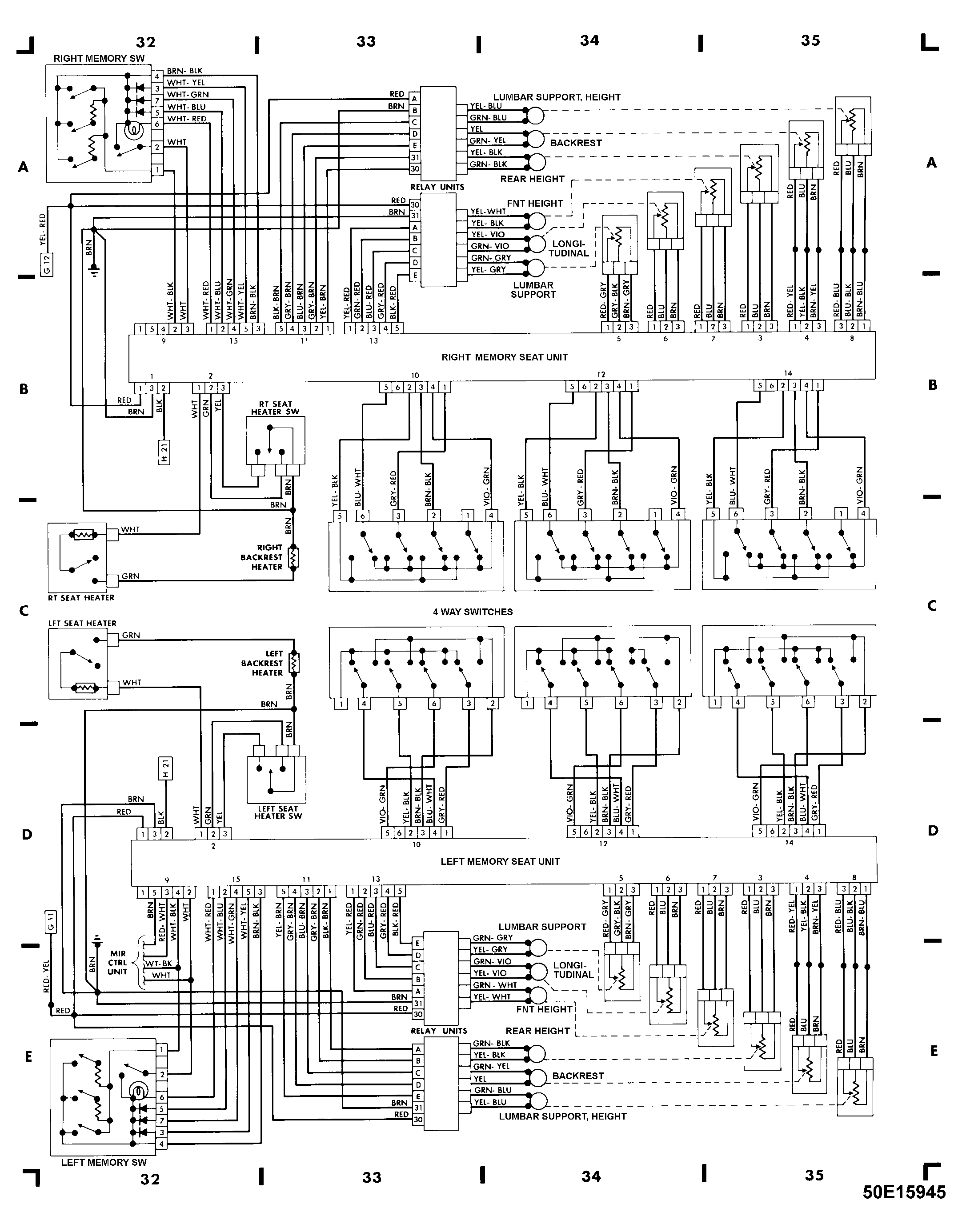

Fig 9: Rear Compartment & Accessories (Grids 32-35)

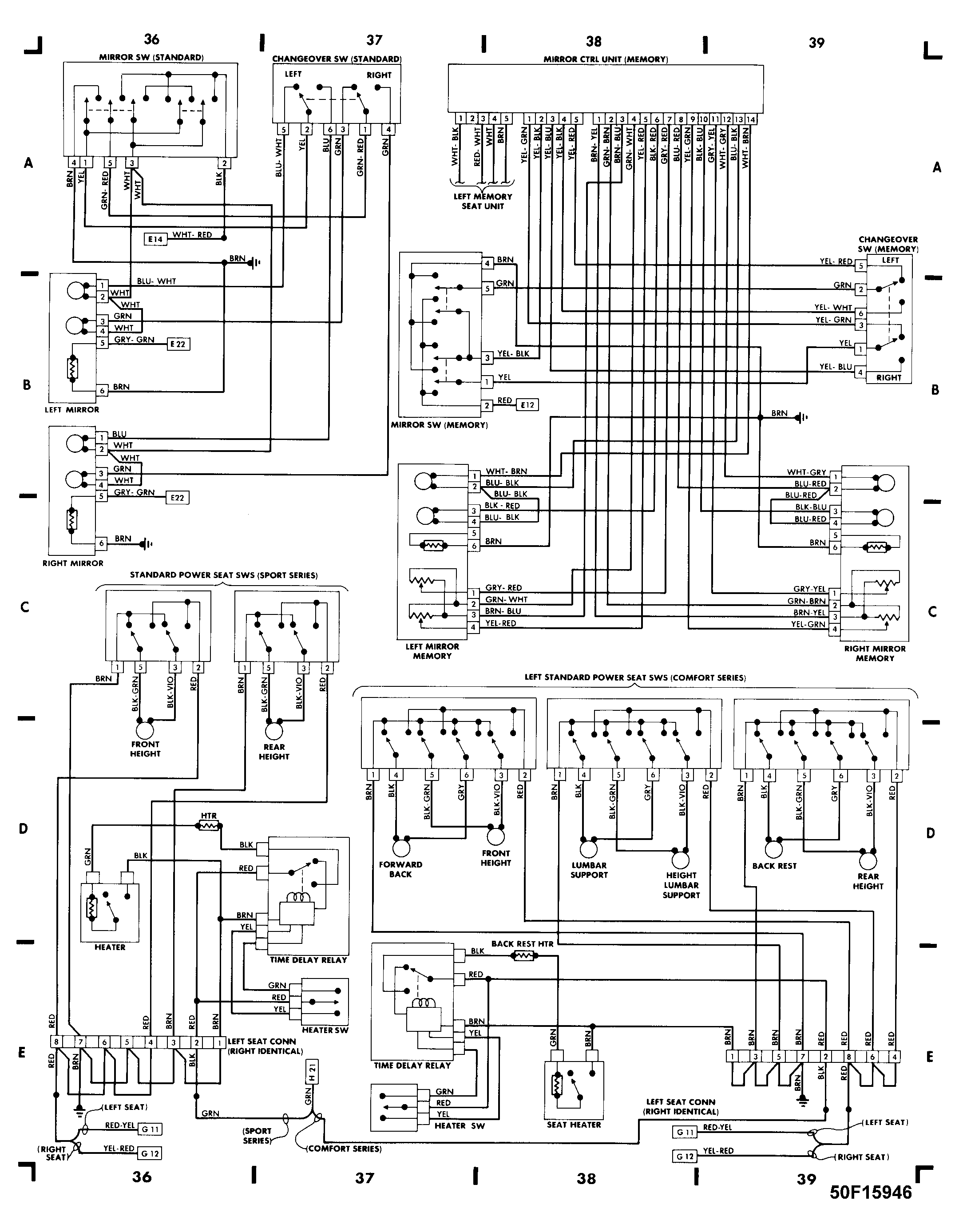

Fig 10: Rear Compartment & Accessories (Cont.) (Grids 36-39)

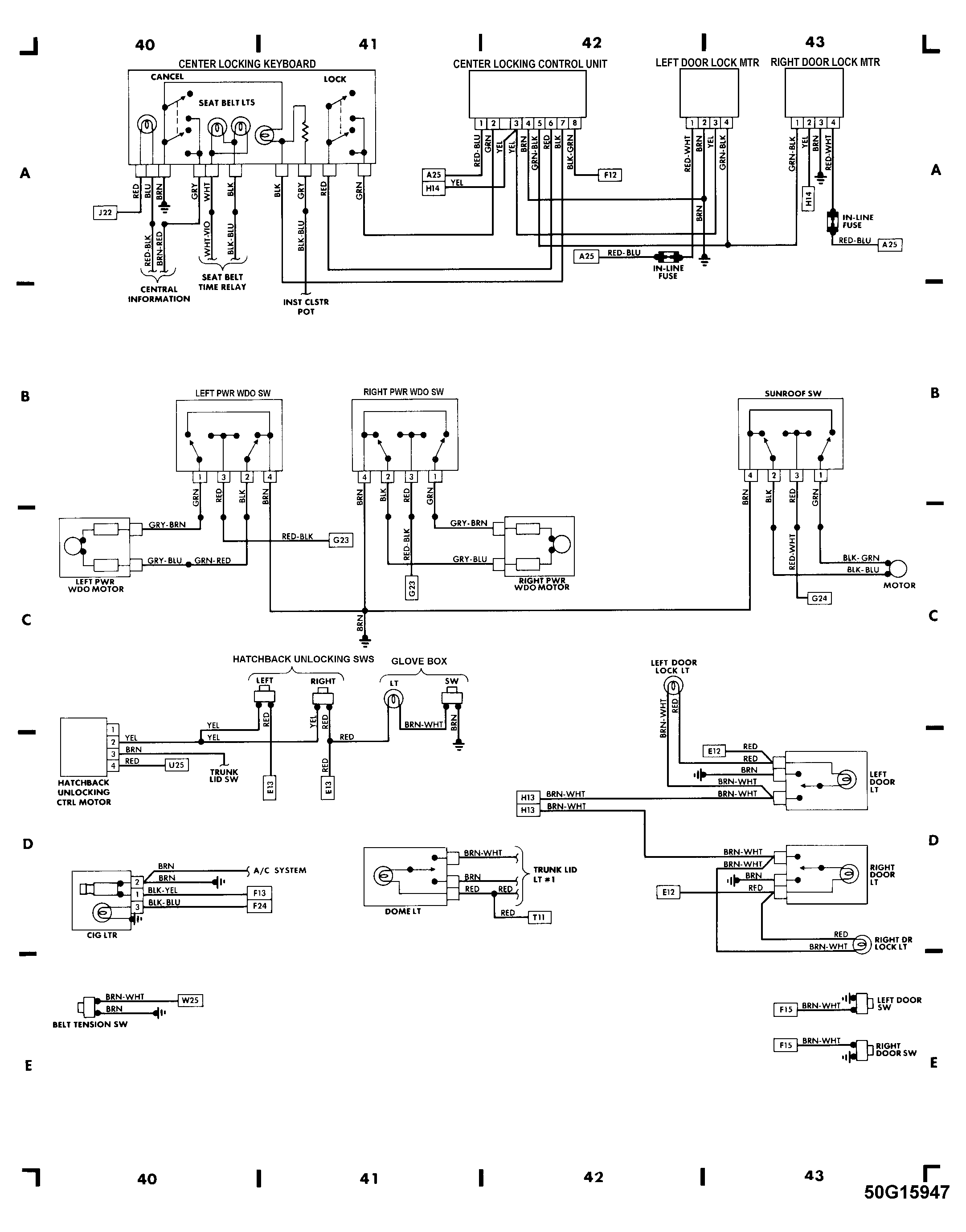

Fig 11: Rear Compartment & Accessories (Cont.) (Grids 40-43)

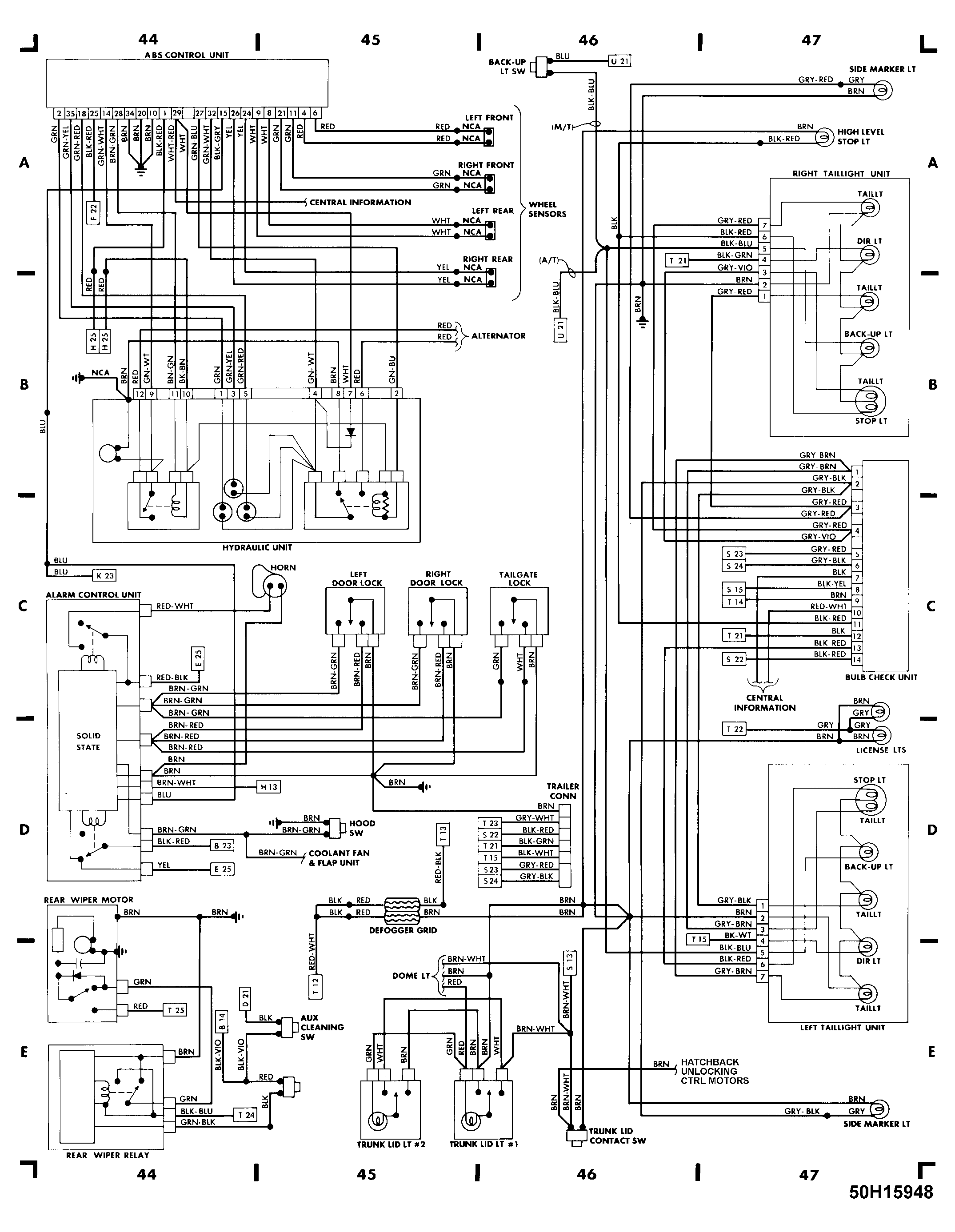

Fig 12: Rear Compartment & Accessories (Cont.) (Grids 44-47)
