Section 2 (Wiring Diagrams): Wiring Diagram

WARNING: This page is about a different car, the 1987 Porsche 924. However, it is still accessible from the selected car via links, so may be relevant.

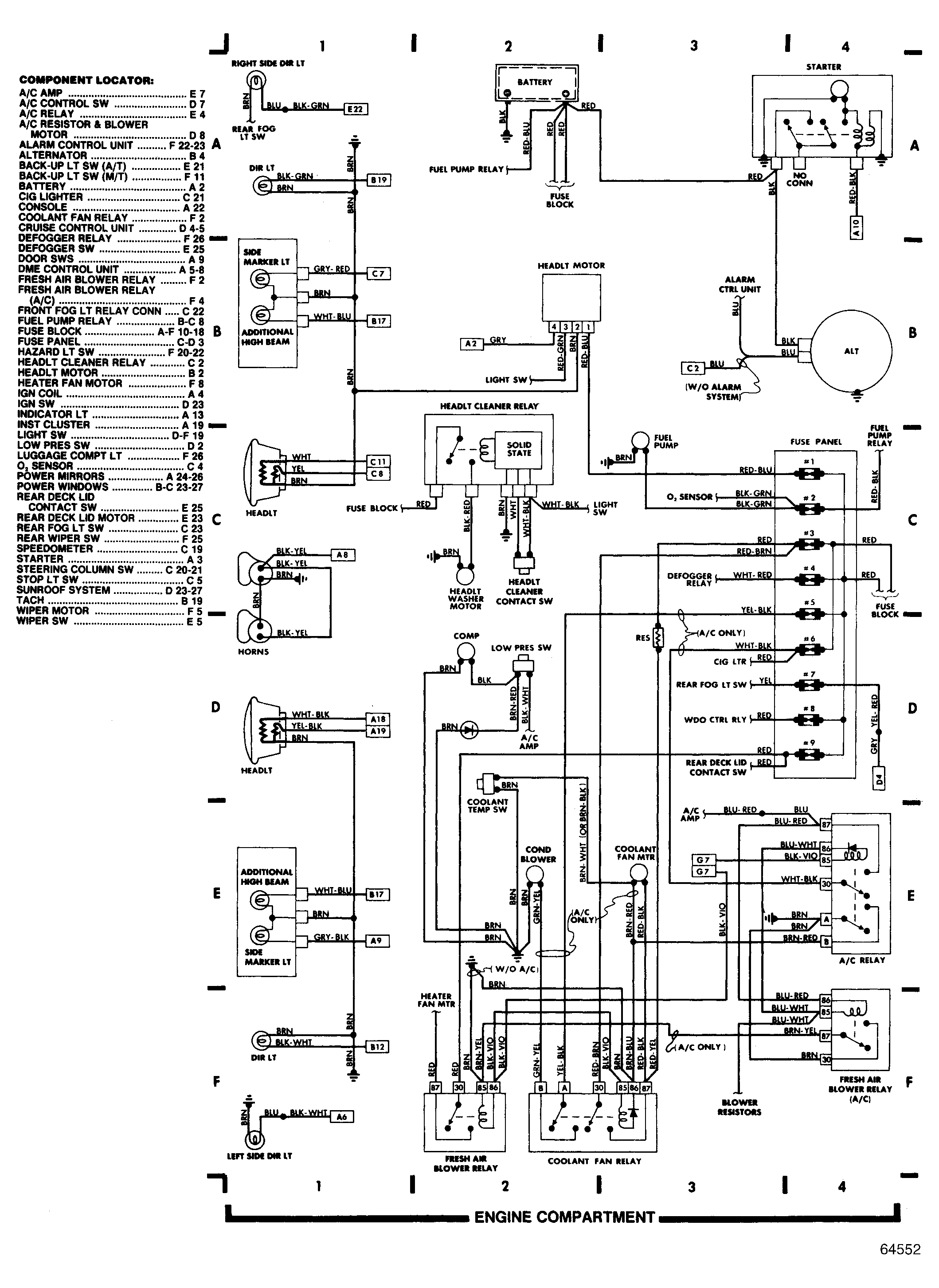

Fig 1: Engine Compartment (Grids 1-4)

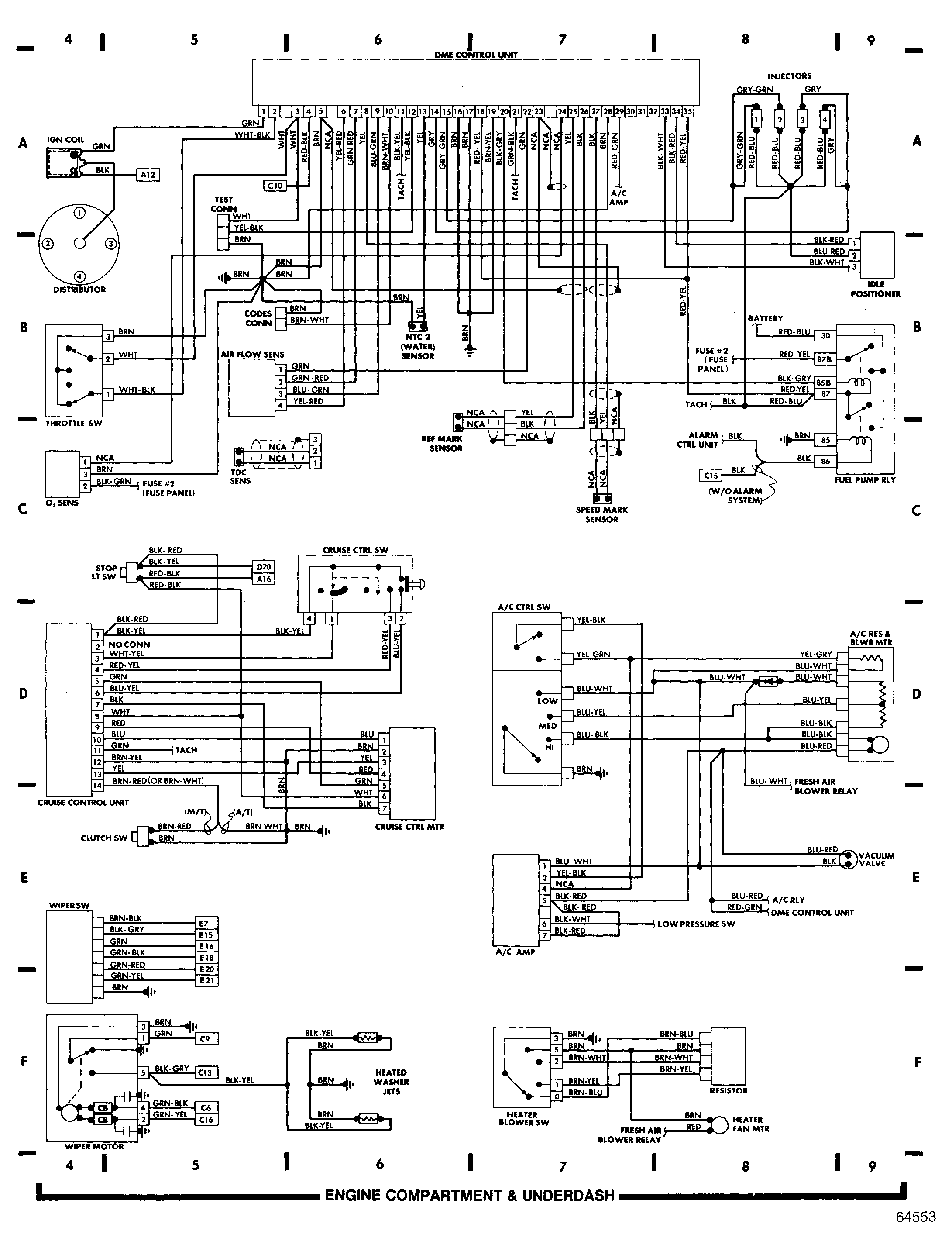

Fig 2: Engine Compartment (Cont.) & Underdash (Grids 4-9)

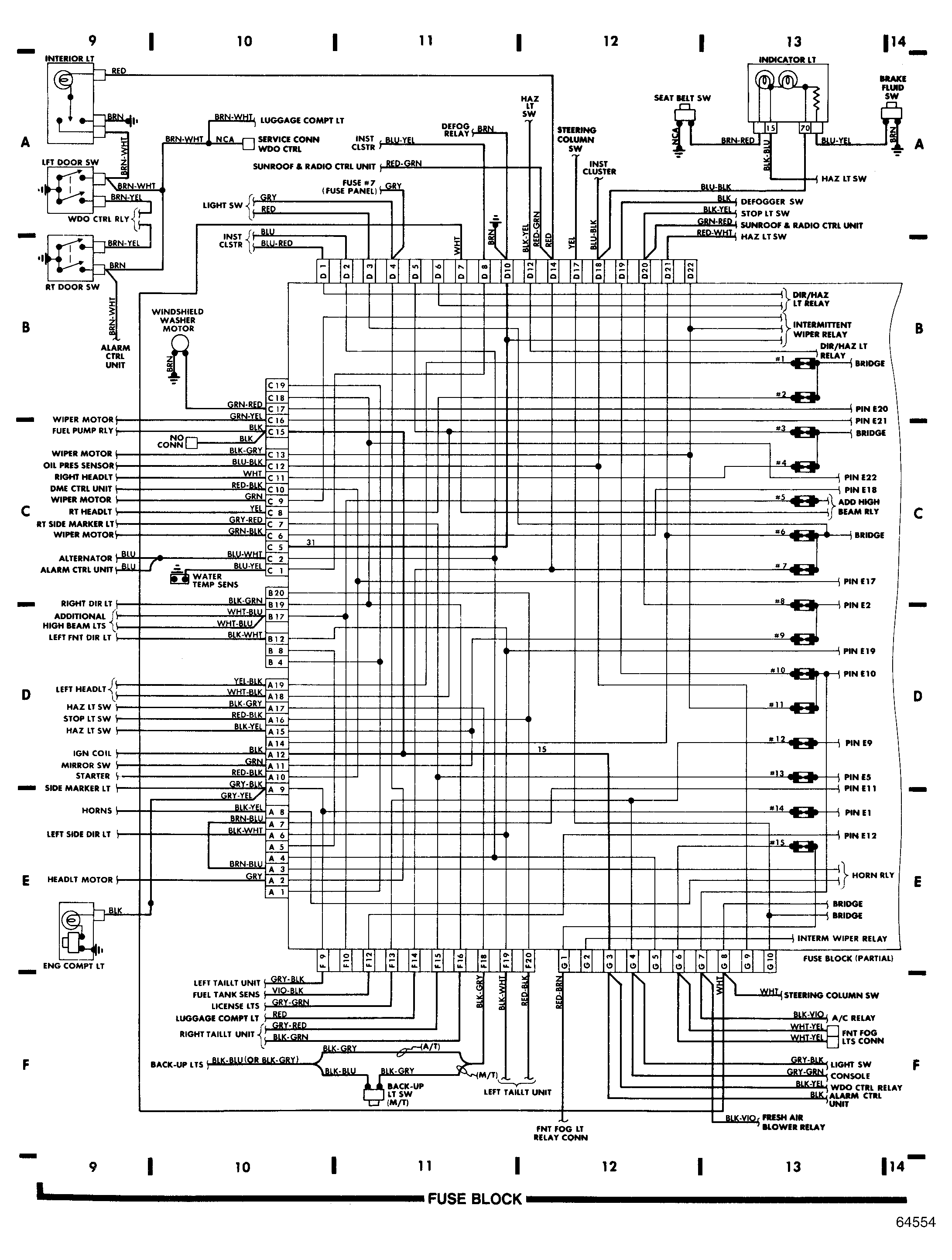

Fig 3: Fuse Block (Grids 9-14)

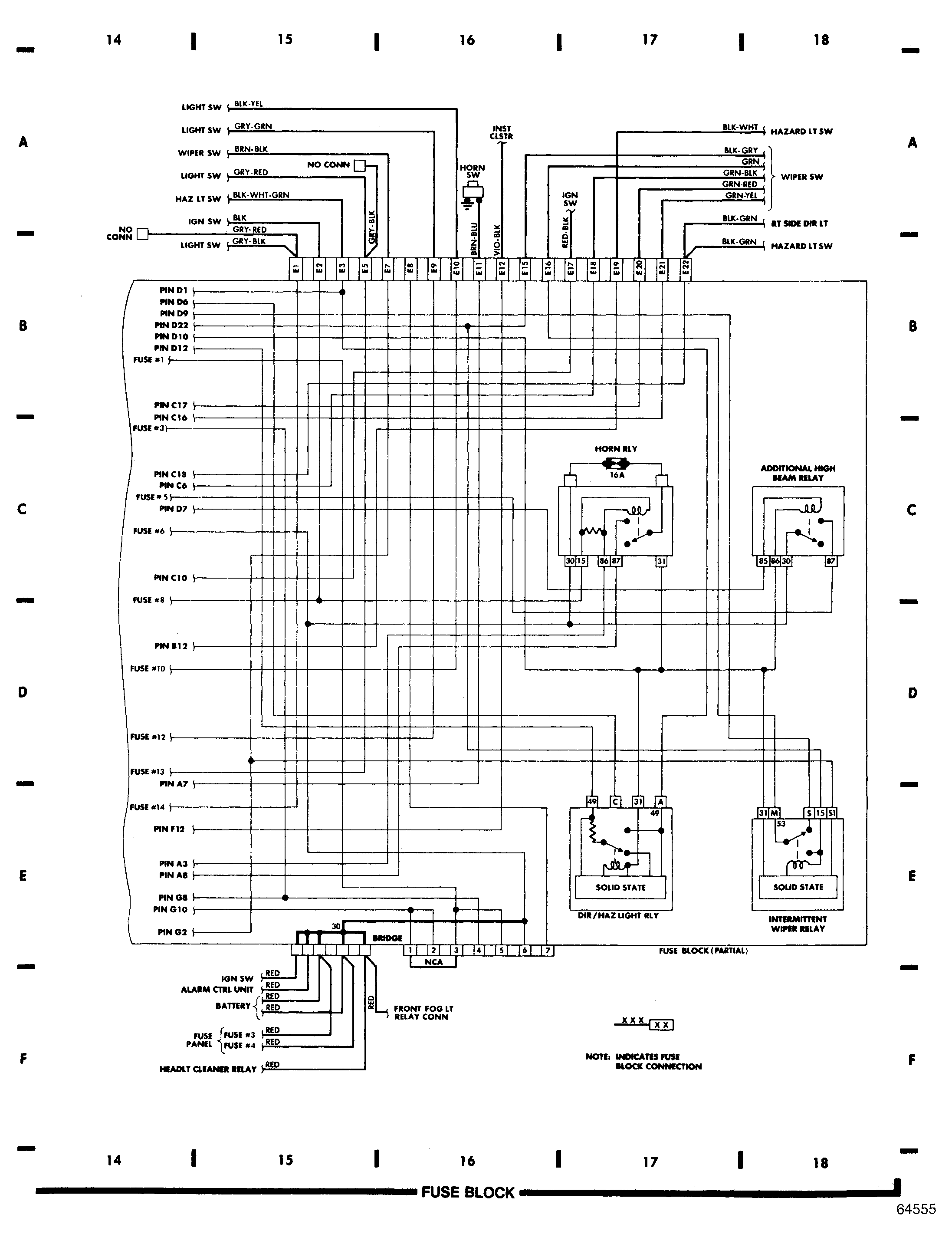

Fig 4: Fuse Block (Cont.) (Grids 14-18)

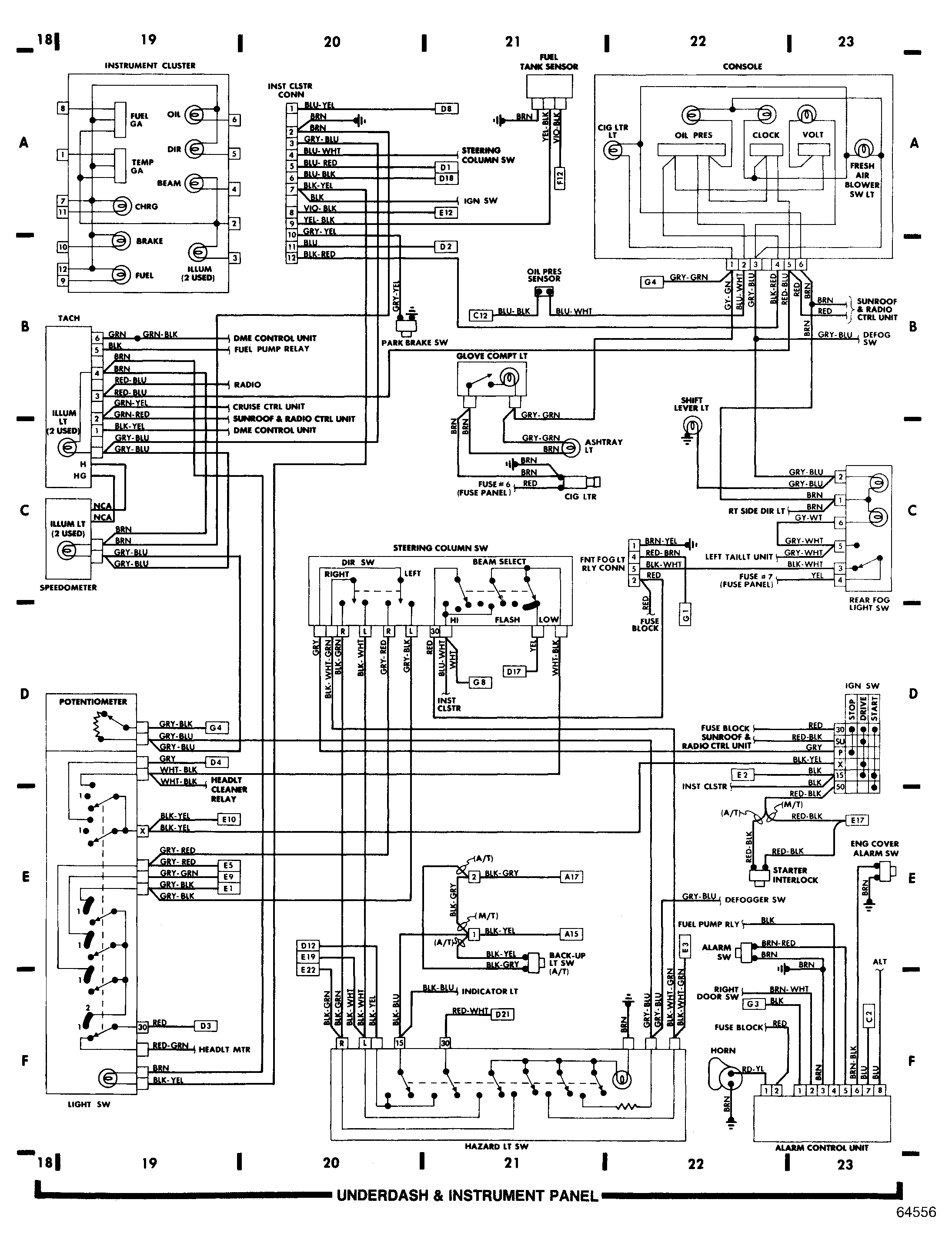

Fig 5: Underdash & Instrument Panel (Grids 18-23)

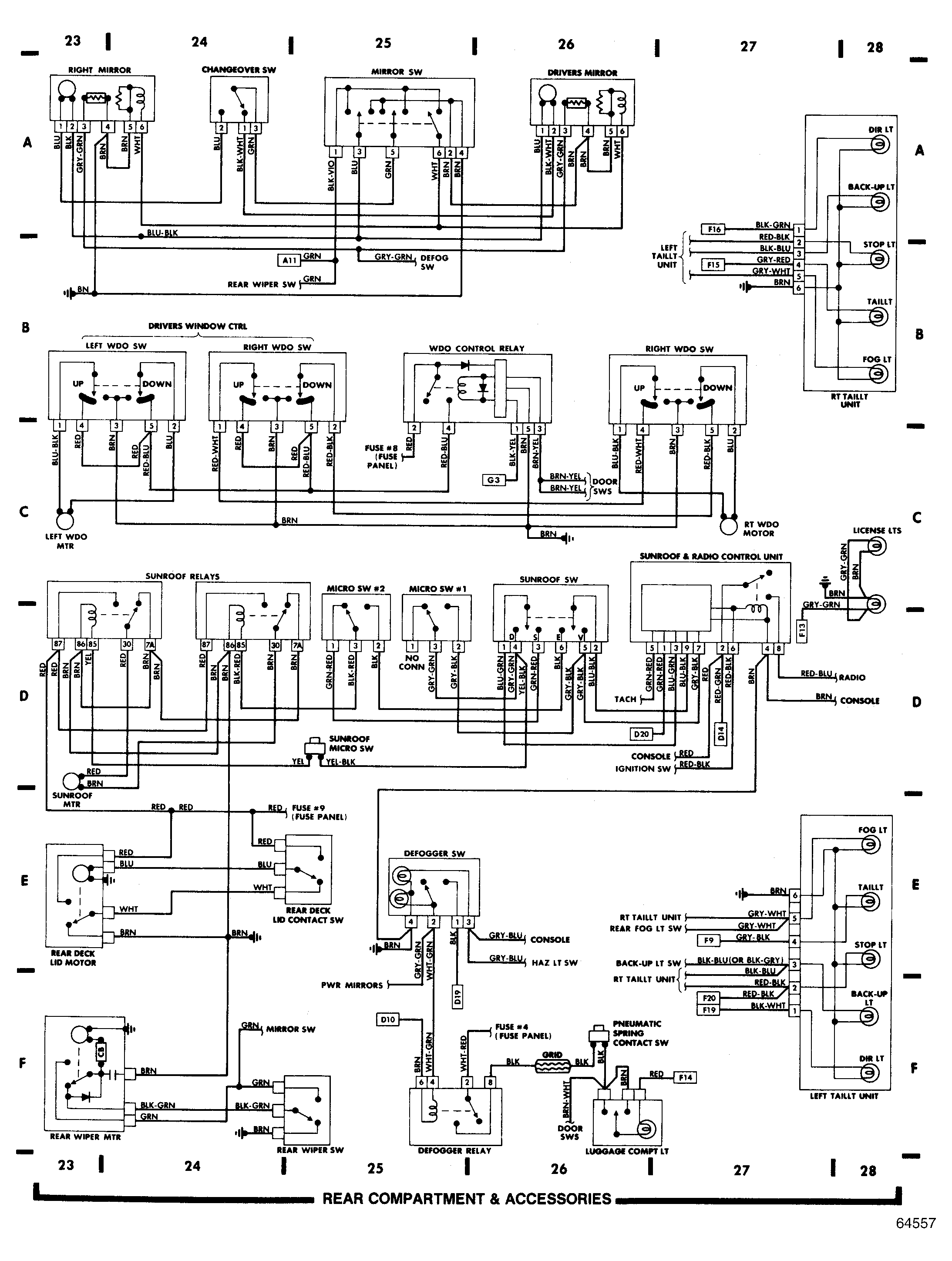

Fig 6: Rear Compartment & Accessories (Grids 23-28)
