Section 1 (Wiring Diagrams): Wiring Diagram

WARNING: This page is about a different car, the 1987 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

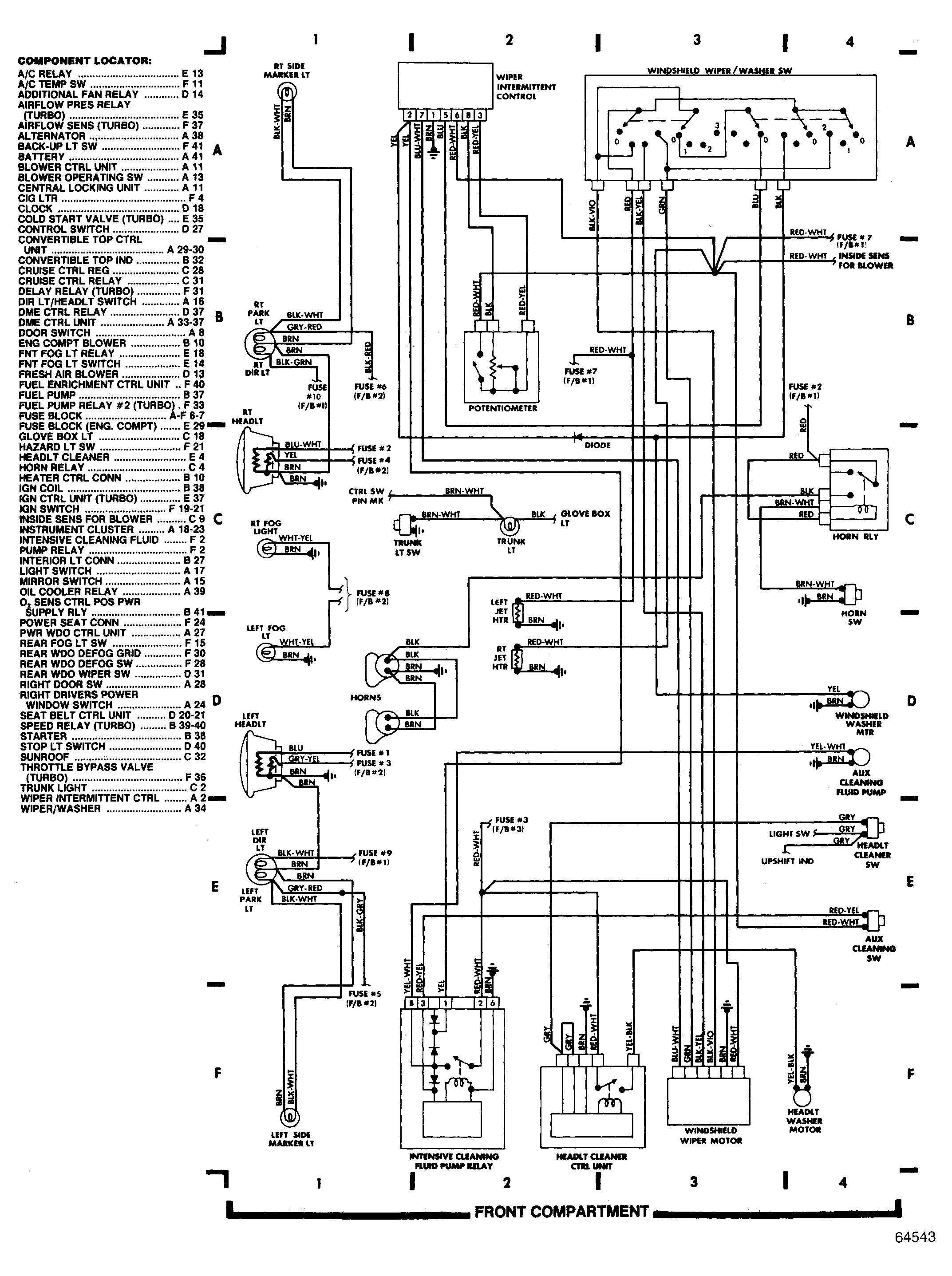

Fig 1: Front Compartment (Grids 1-4)

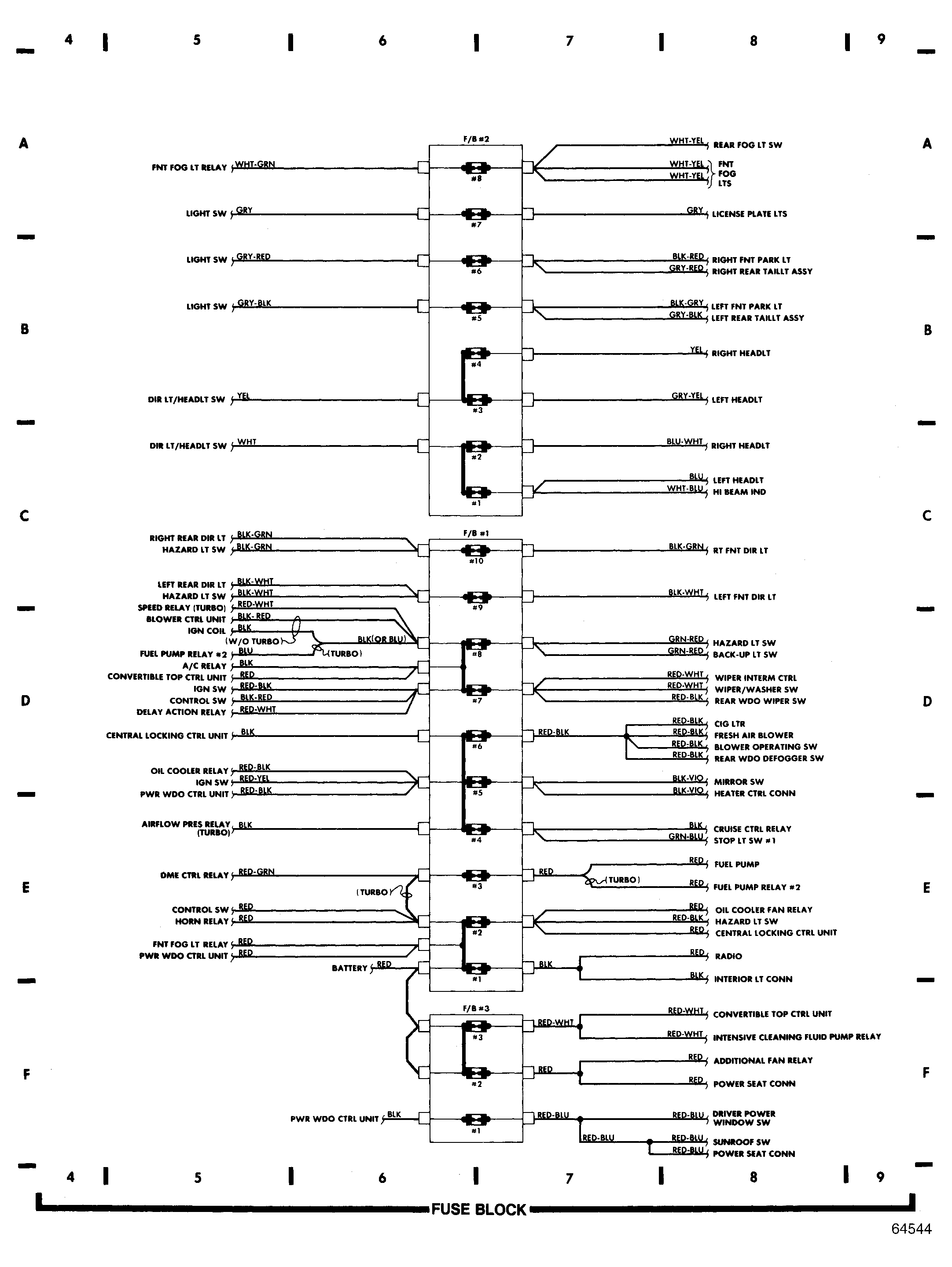

Fig 2: Fuse Block (Grids 4-9)

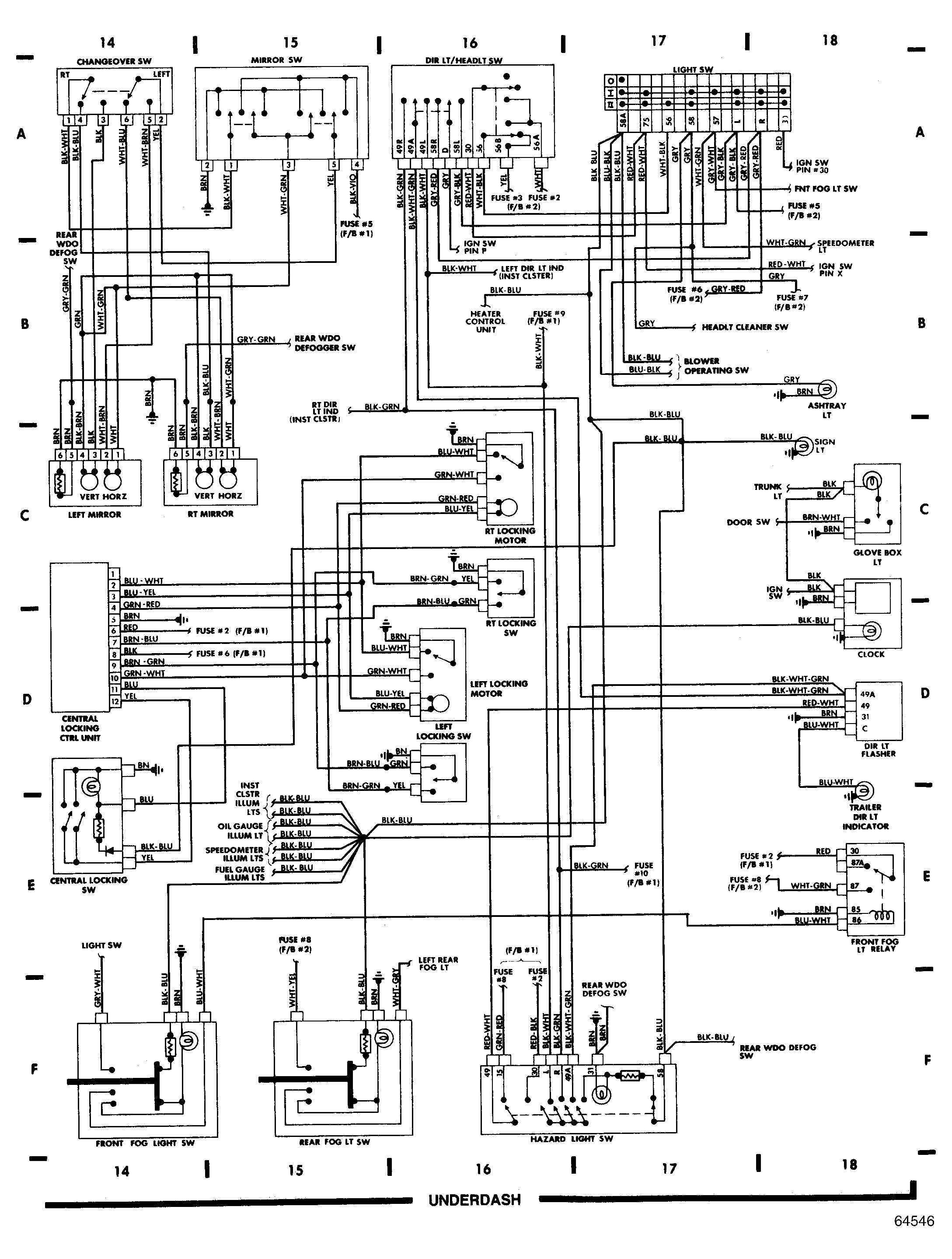

Fig 3: Underdash (Grids 9-14)

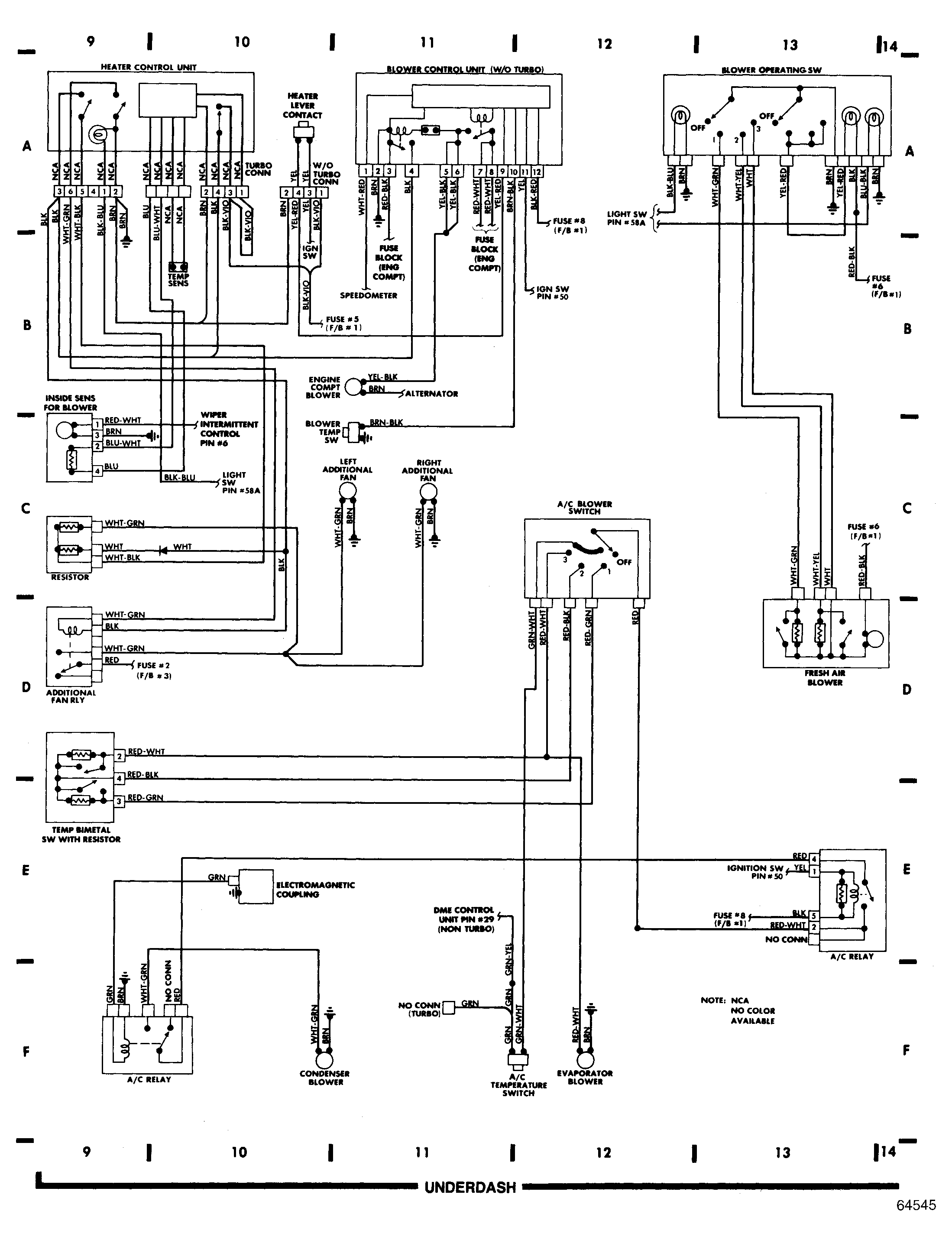

Fig 4: Underdash (Cont.) (Grids 14-18)

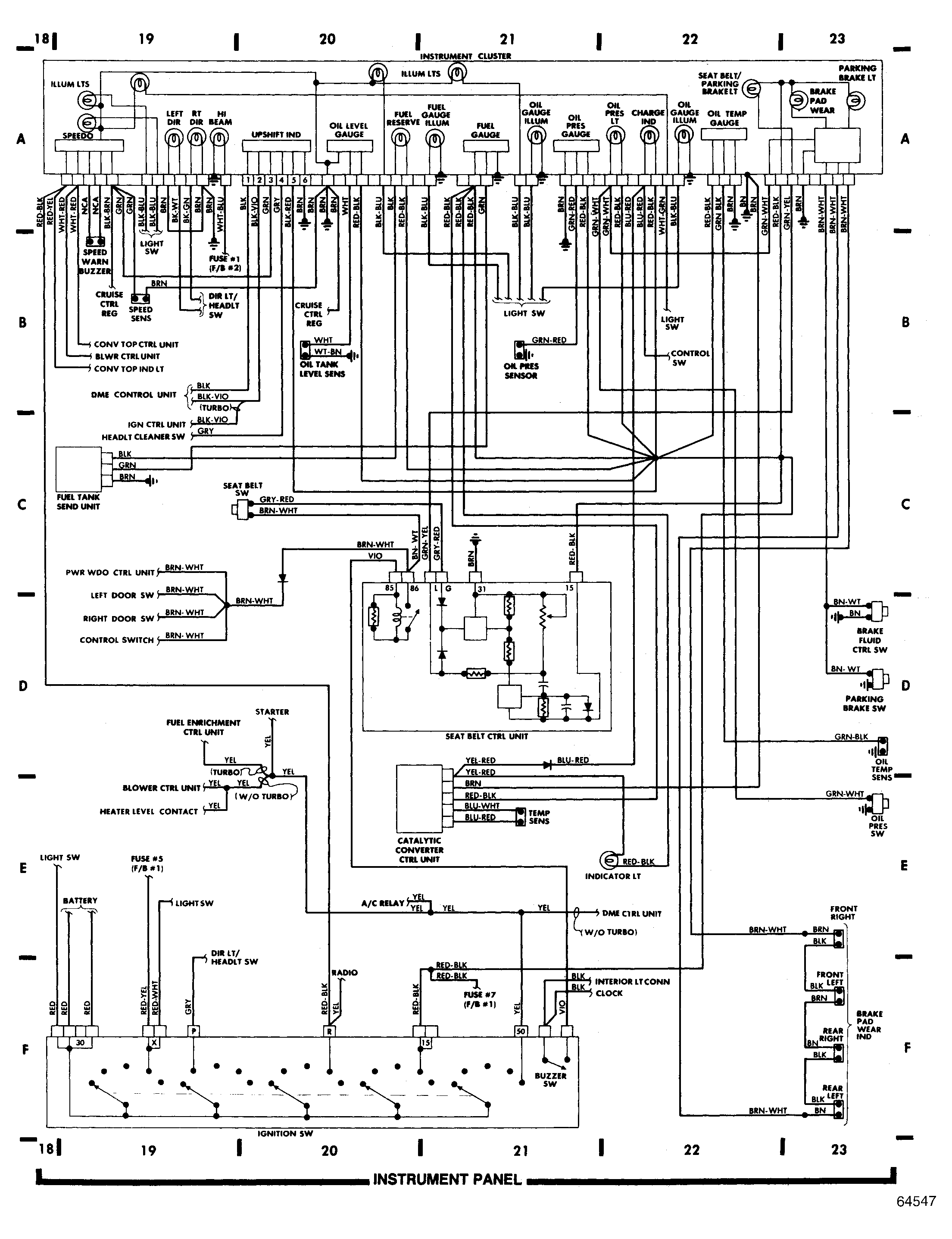

Fig 5: Instrument Panel (Grids 18-23)

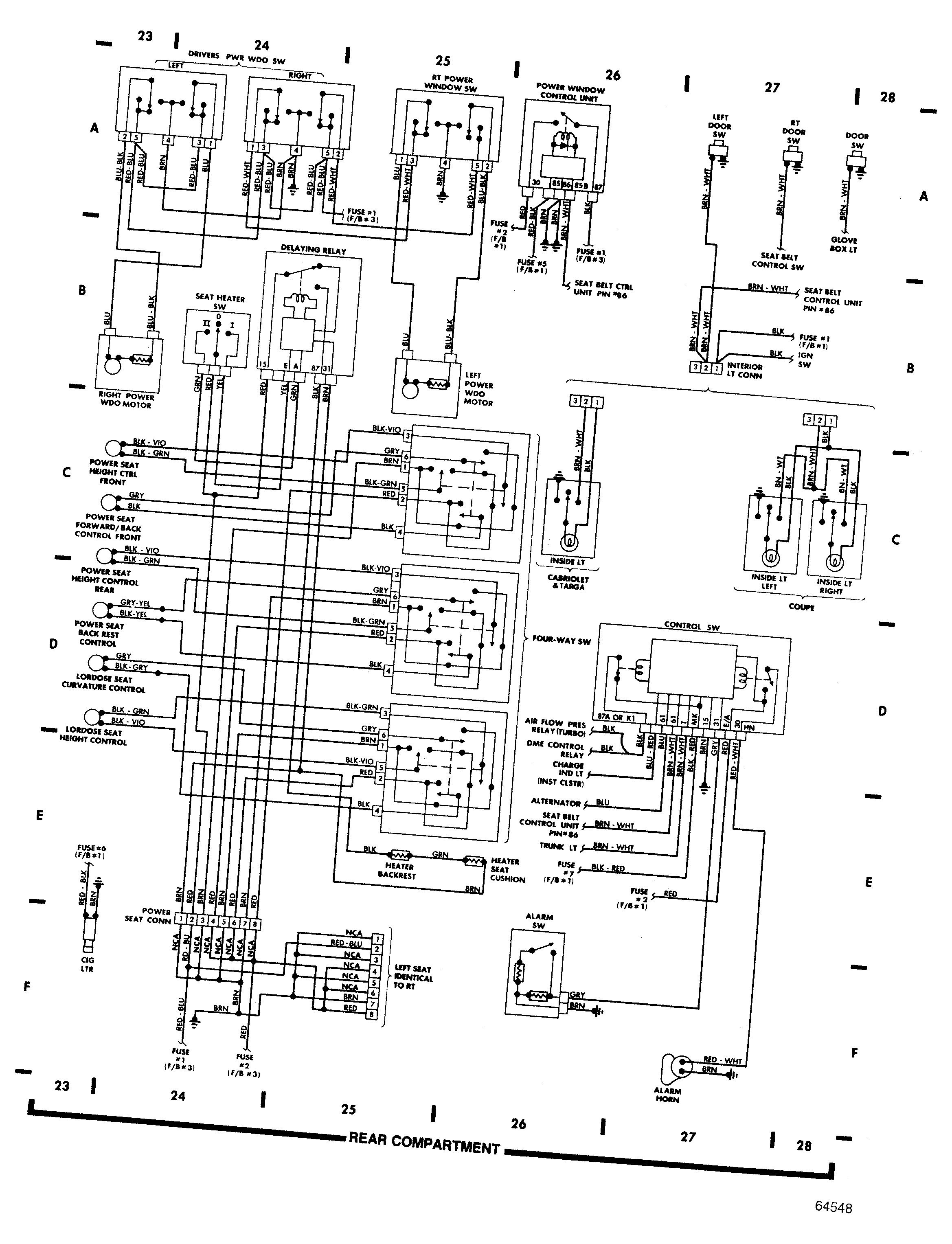

Fig 6: Rear Compartment (Grids 23-28)

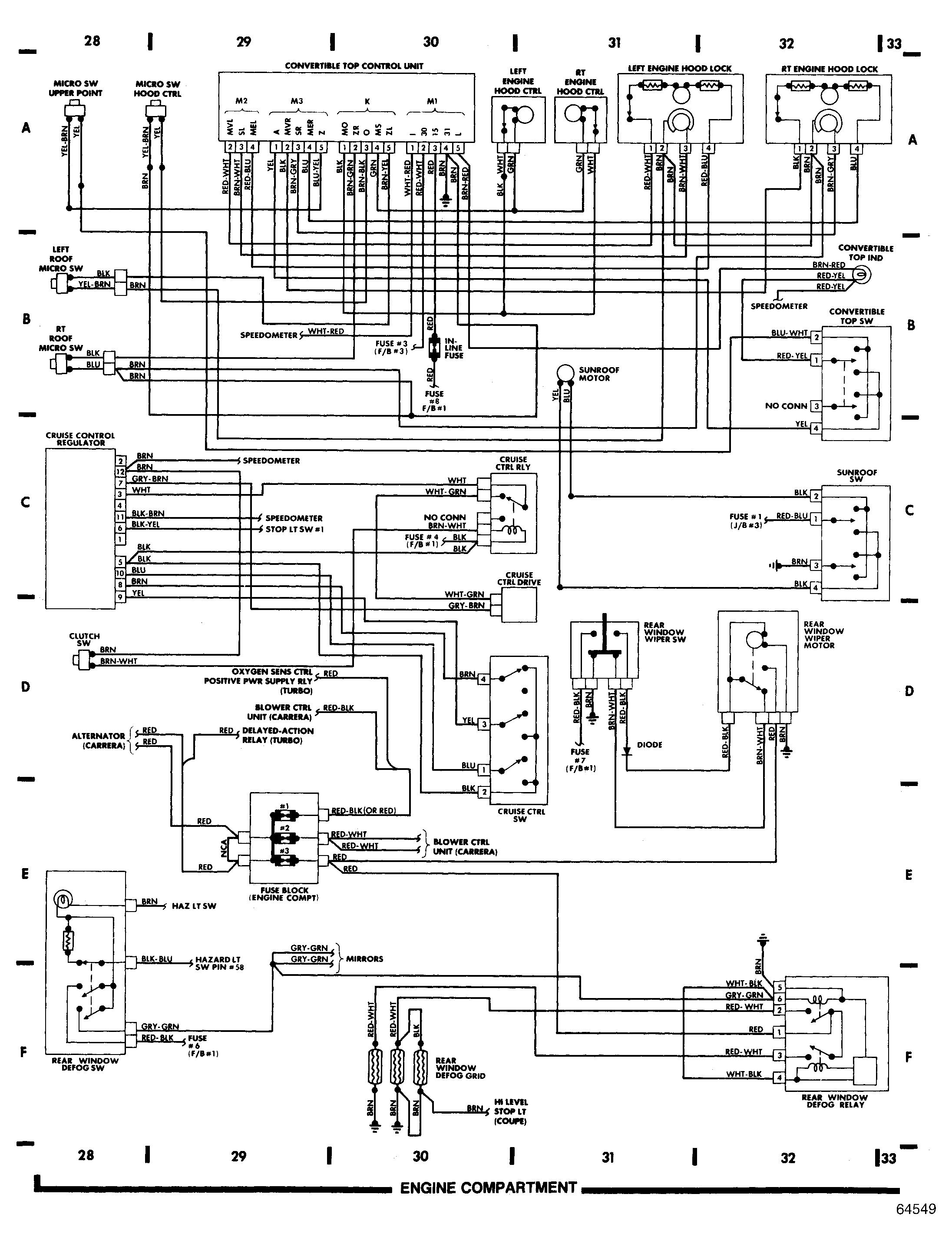

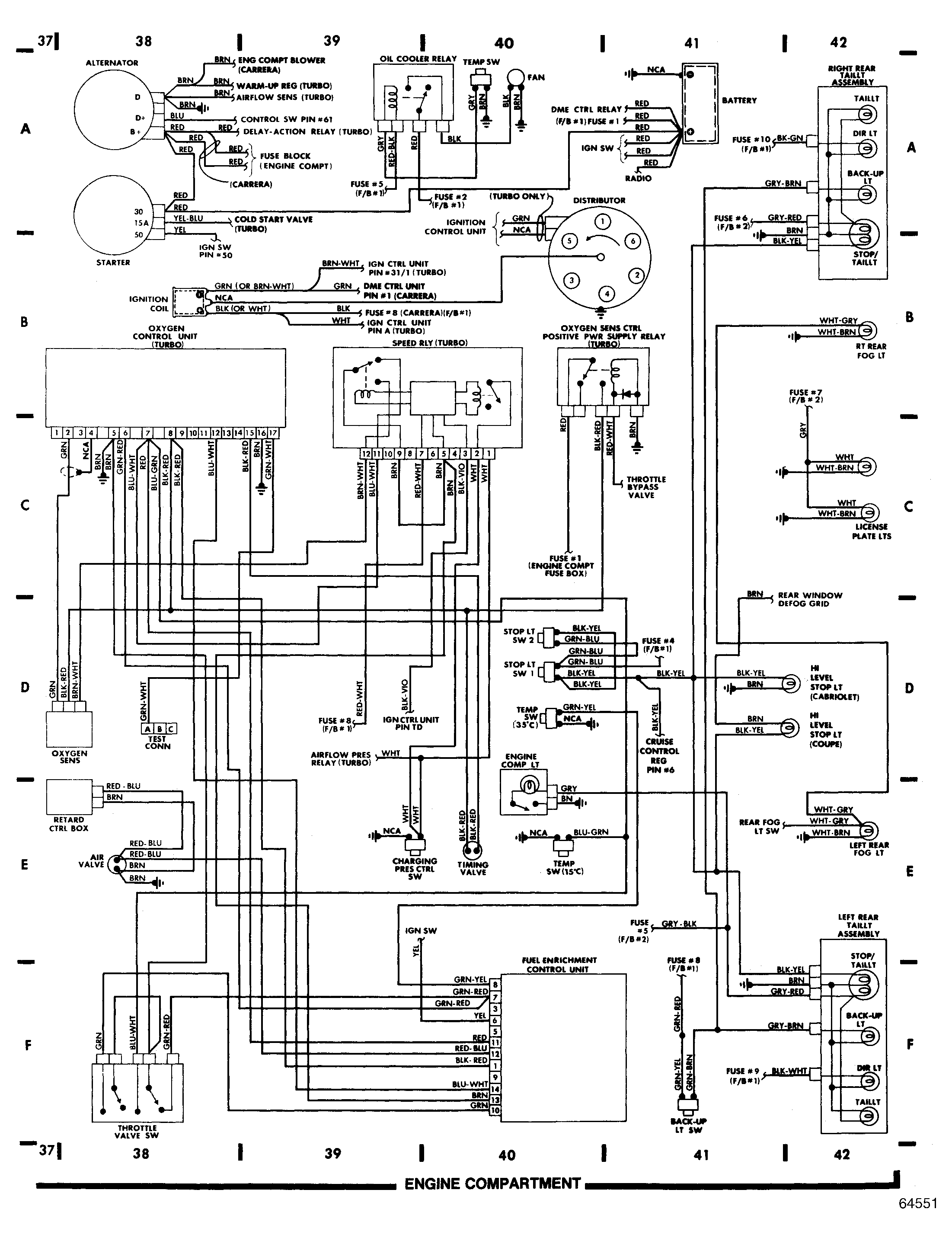

Fig 7: Engine Compartment (Grids 28-33)

Fig 8: Engine Compartment (Cont.) (Grids 33-37)

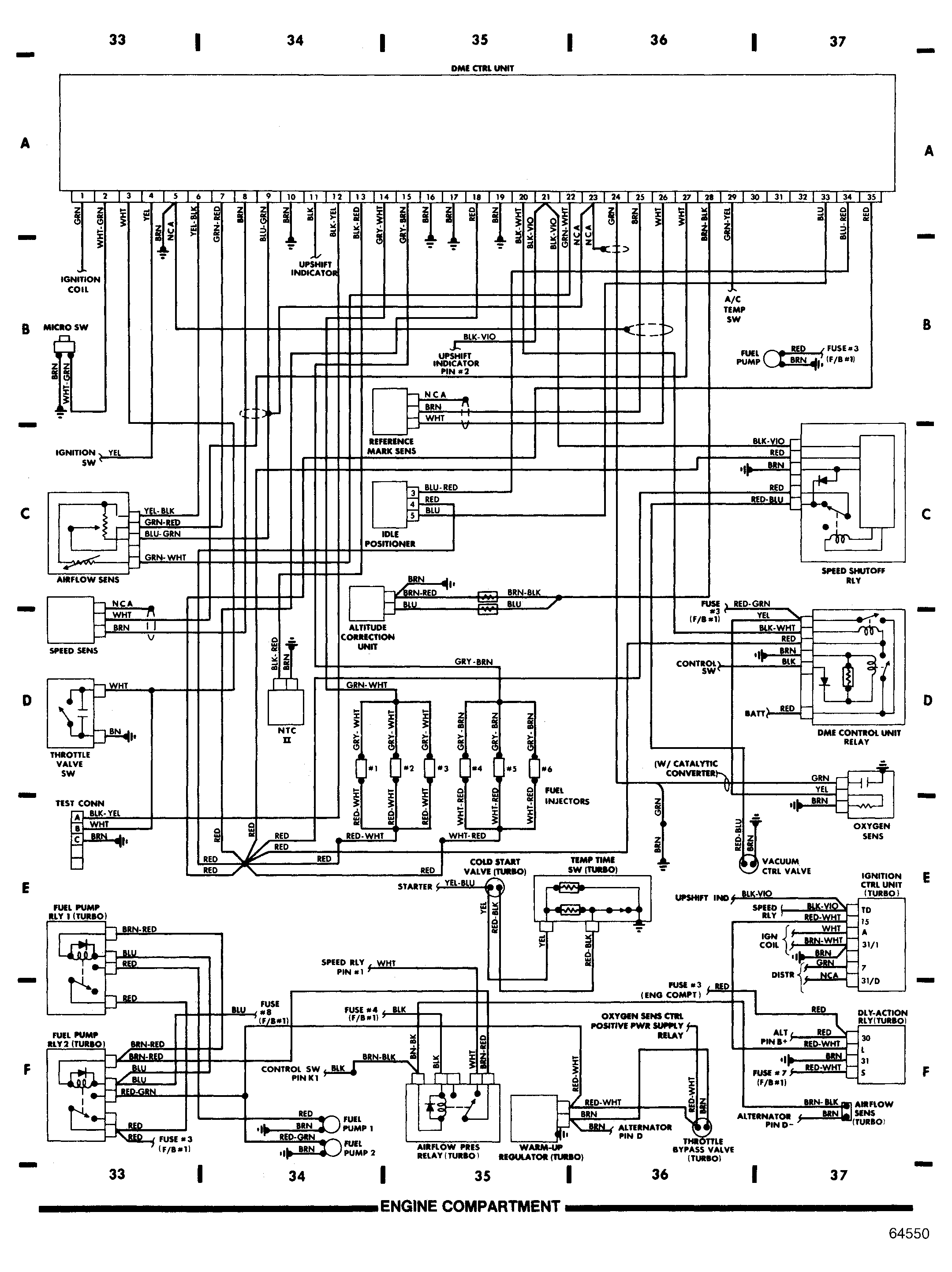

Fig 9: Engine Compartment (Cont.) (Grids 37-42)
