Removal (911 Carrera & 911 Turbo)

  1. Disconnect battery ground cable. Remove blower, ducting and steering shaft cover. Remove universal joint retaining bolt.
  2. From driver's compartment, remove knee strip, light switch and tachometer. Drill or grind off shear bolts retaining ignition switch/steering lock in panel mounting.
  3. Lift off horn pad and remove steering wheel. Detach wire connection and remove steering column switch assembly with steering shaft and tube.

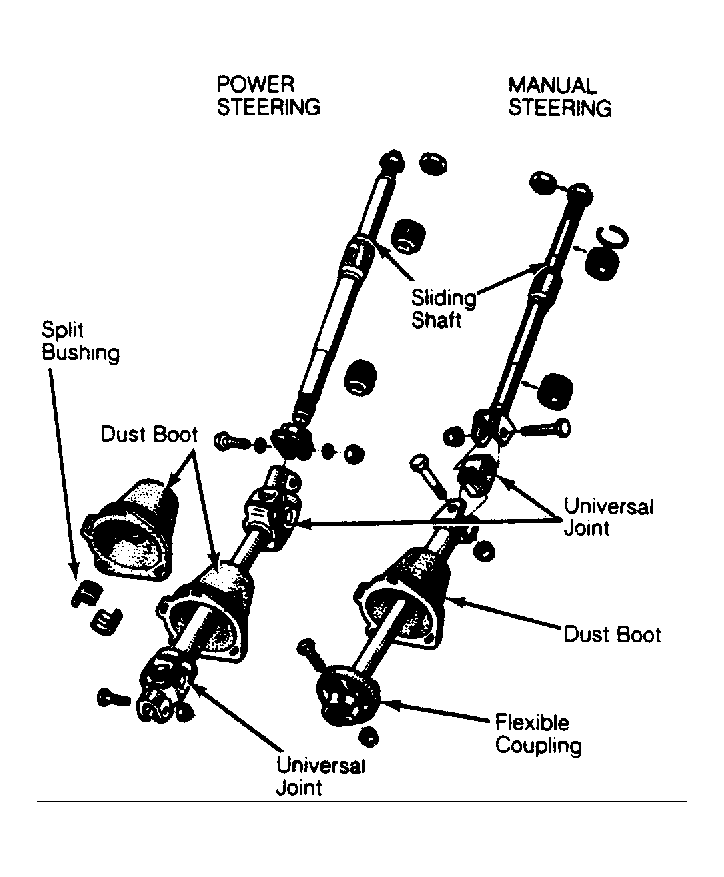

Fig 1: Exploded View of 944 Steering Column
G50423Courtesy of PORSCHE OF NORTH AMERICA, INC.
