Master Cylinder: Removal

  1. On 911 models, raise and support vehicle. Drain brake fluid from reservoir. Pull back on accelerator pedal to detach pedal from pad.
  2. Remove floor mat and floor board. Withdraw boot from master cylinder. Remove underpanel covering front axle.
  3. On all models, remove hydraulic lines, electrical connections and reservoir tubes (if equipped). Remove mounting nuts and remove master cylinder.

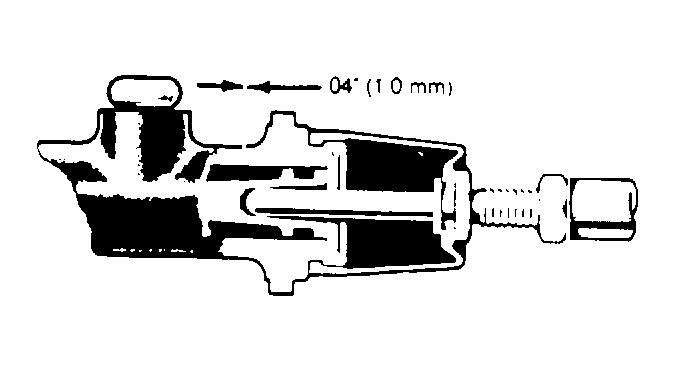

Fig 1: Push Rod-to-Master Cylinder Piston Clearance on 911 Models
G50129Courtesy of PORSCHE OF NORTH AMERICA, INC.
