Valve Body Assembly: Disassembly

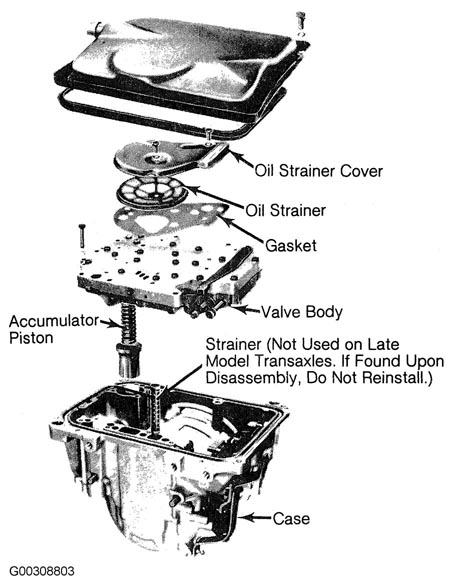

  1. Remove screws attaching transfer plate to main valve body. Lift transfer plate and separator plate from main valve body. Remove main valve body check balls from passages in valve body. See Figure .
    CAUTION: DO NOT alter settings of adjusting screws. Adjusting screws change pressures and can only be properly adjusted on test stand.
  2. Remove rear end cover plate and withdraw valves, springs, and adjusting screws. Remove remaining end plates one at time and withdraw all valves, plugs, springs and adjusting screws. Tag all parts for reassembly reference or use Holding Tray (2008) to hold parts. This tray holds springs and valves in correct order and location.
