Governor Assembly: Removal

Remove cover bolts and washers. Remove governor cover and "O" ring from final drive housing. Withdraw governor from housing with clockwise turning motion to allow governor drive gear to disengage from drive pinion gear

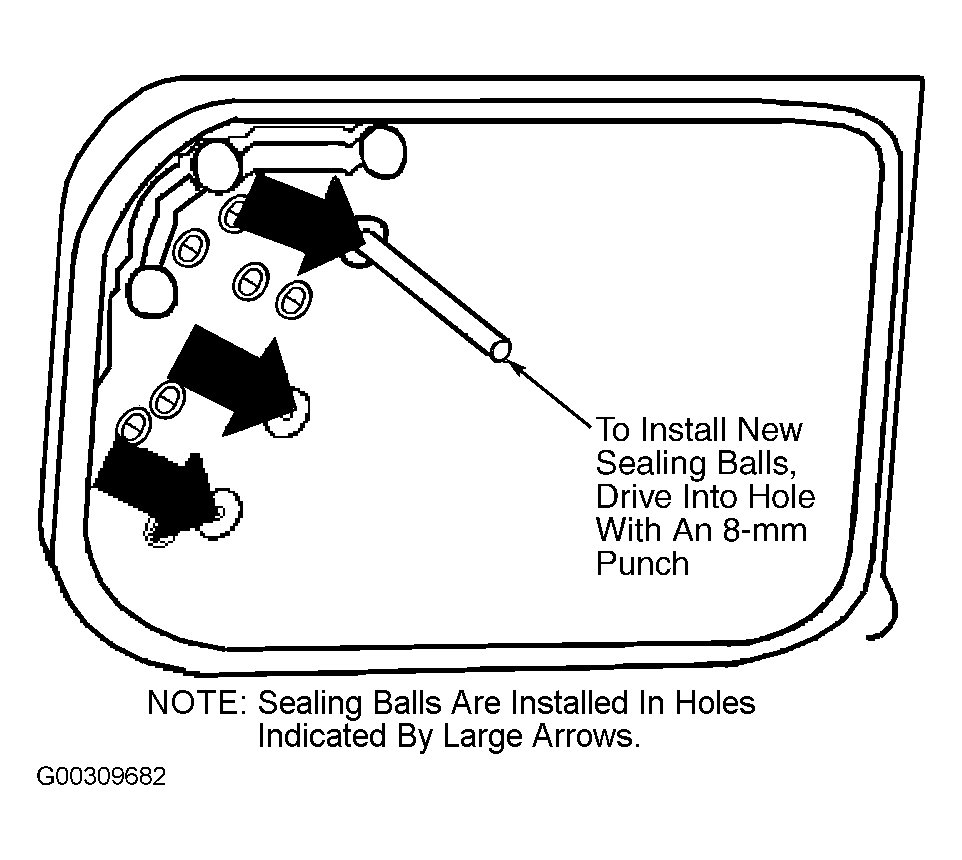

Fig 1: Sealing Balls in Valve Body Transfer Plate

Courtesy of AUDI OF AMERICA, INC.
