Hydraulic Pressure Test

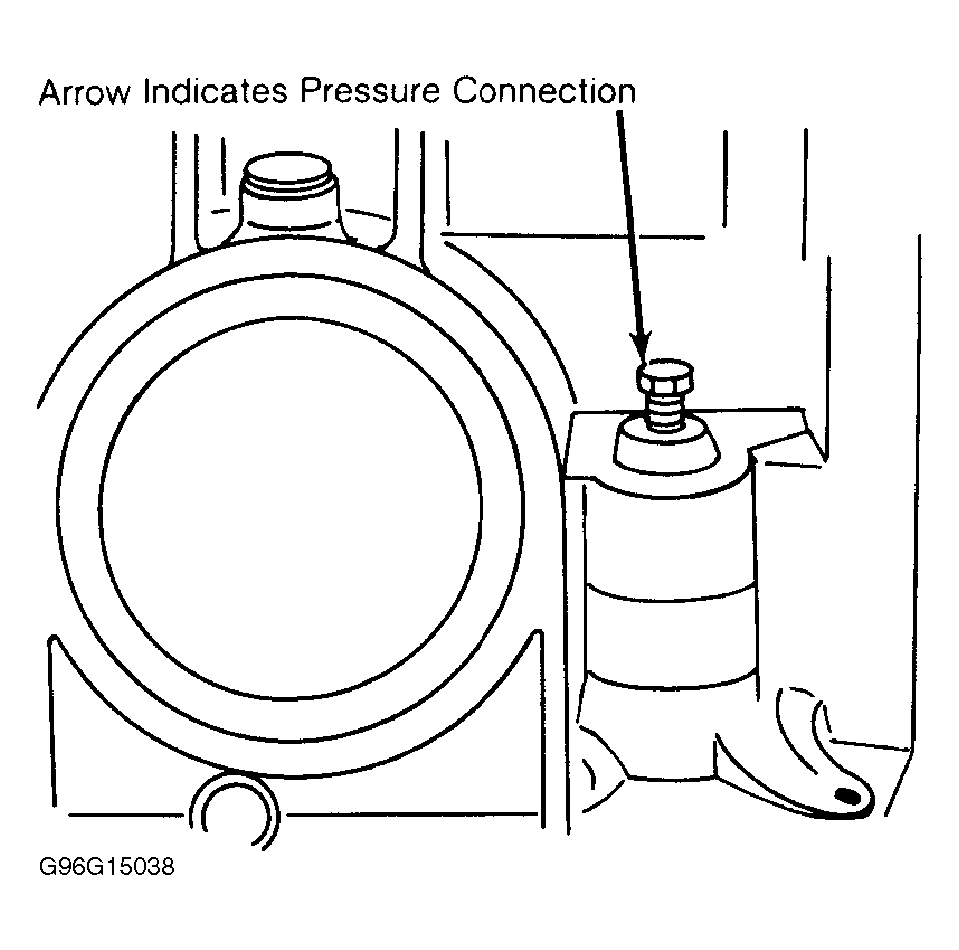

- Connect pressure gauge to main pressure test point on case (adjacent to servo cover). Transmission must be at normal operating temperature. See Fig 1 .

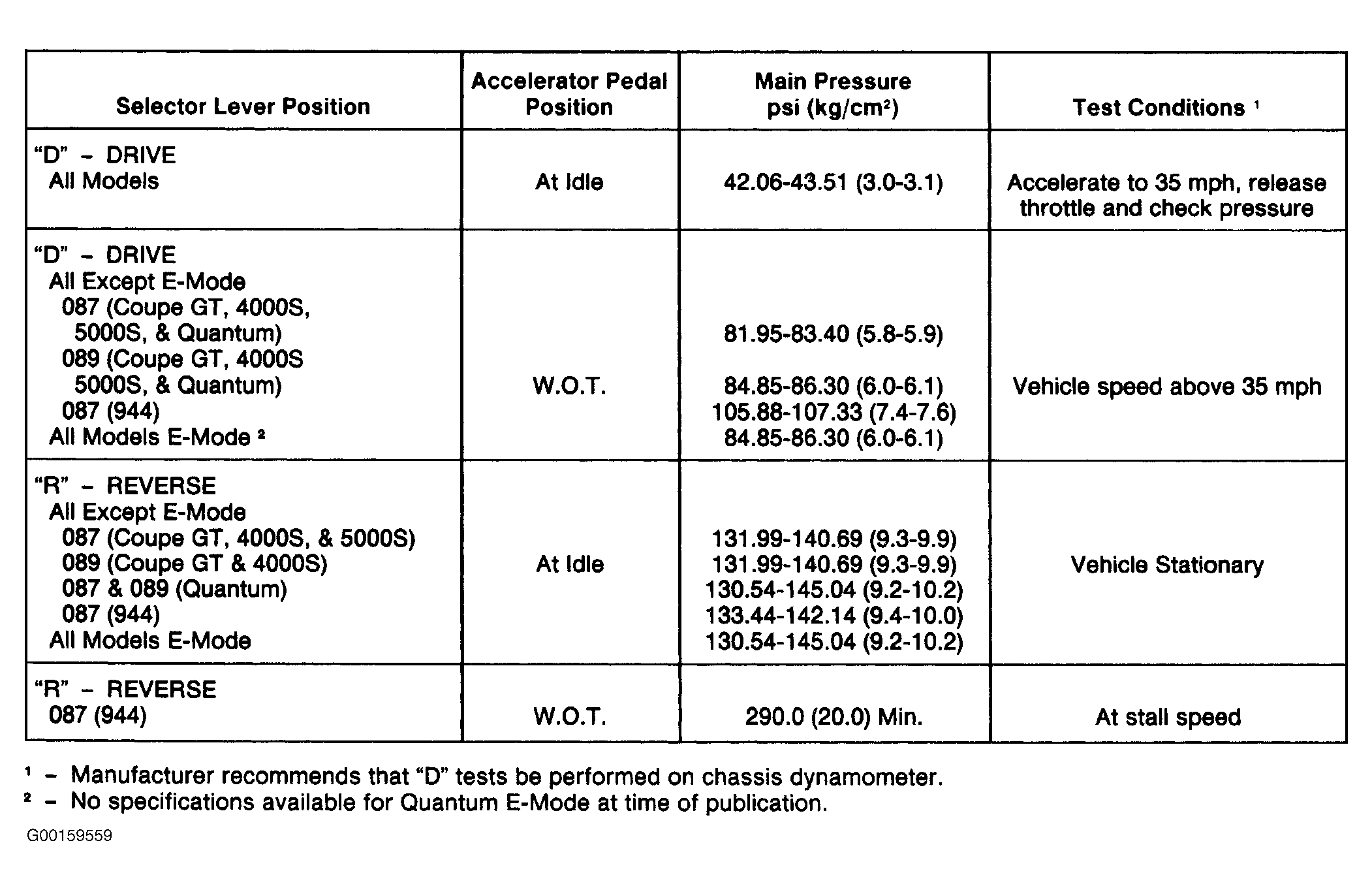

- Verify that pressures obtained during each phase of test are correct. See Fig 2 . If pressures are incorrect, check for oil leaks, defective oil pump, or sticking valves in valve body assembly.
