Pinion Shaft Turning Torque

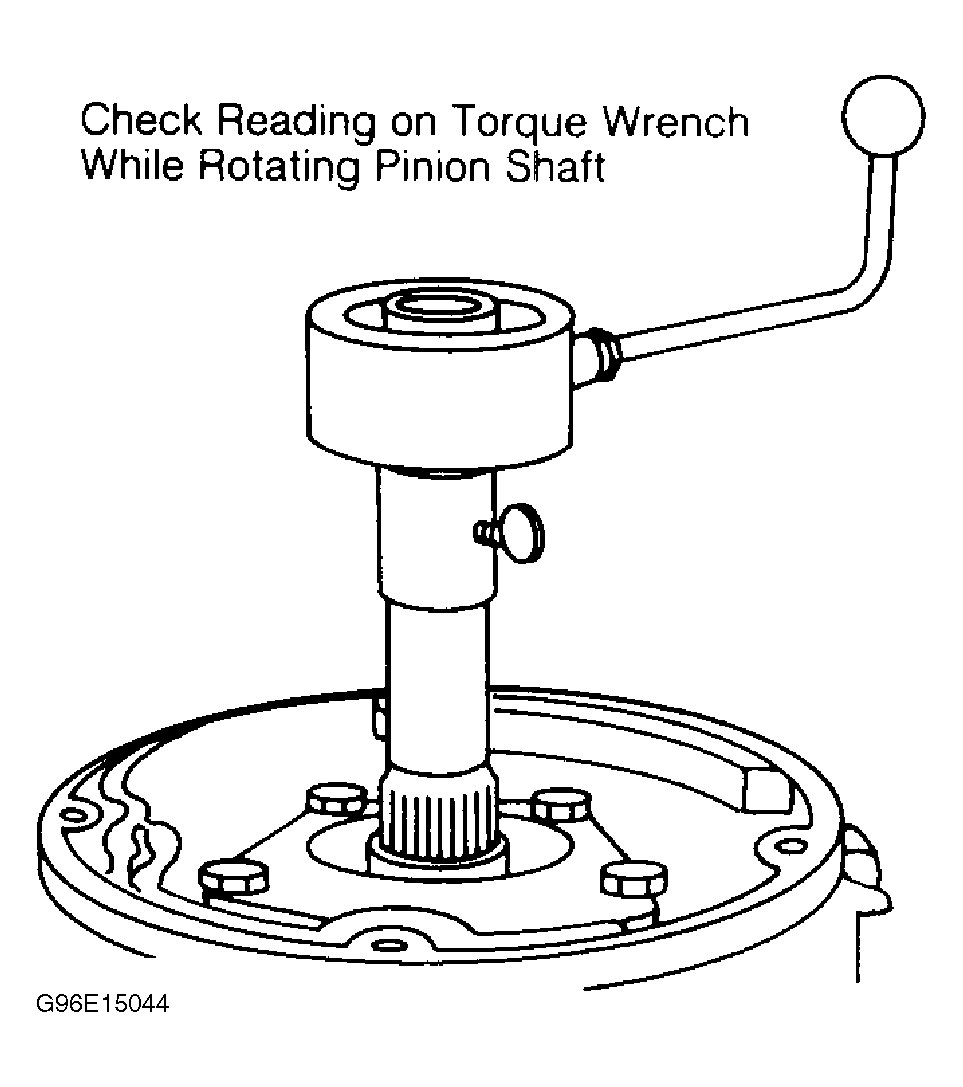

After installing correct pinion adjusting shims, check turning torque of pinion shaft. See Fig 1 . Turning torque for all models should be 22-49 INCH lbs. (2.5-5.5 N.m). If turning torque is incorrect, recheck shim thickness for correct bearing preload. See PINION DEPTH & BEARING PRELOAD .
NOTE:
Turning torque value is for new bearings only. If used bearings are reinstalled, turning torque should be same as that measured before disassembly.
