Governor Assembly: Disassembly

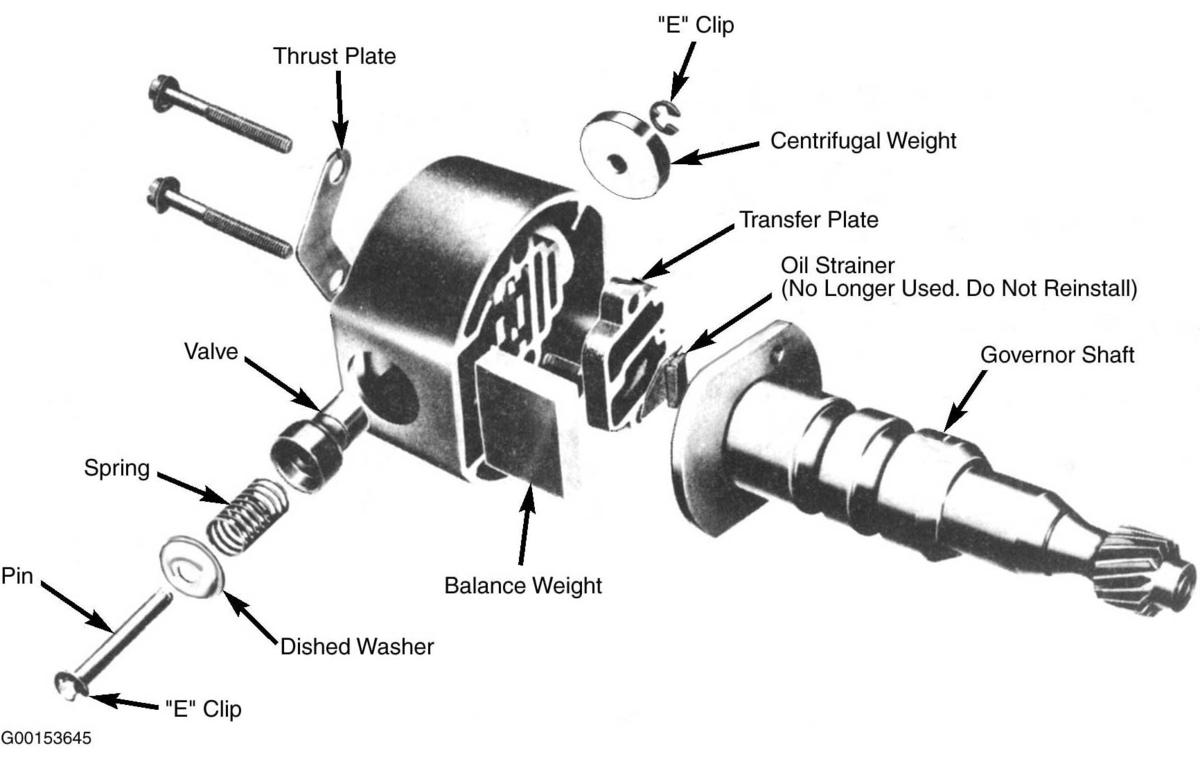

Remove 2 attaching screws and withdraw thrust plate and governor housing. Remove transfer plate (noting position), balance weight and oil strainer (if equipped). Remove "E" clip and pull centrifugal weight, valve, spring and dished washer from pin. See Figure .
