Direct-Reverse Clutch: Disassembly

Using screwdriver, pry clutch pack retaining snap ring from clutch drum. Withdraw clutch pressure plate, lined clutch plates, and steel clutch plates from drum. See Fig 1 .
Place clutch drum in press, apply downward pressure to piston spring retainer and remove retaining snap ring. Release press and remove spring retainer. Using twisting motion, remove piston with return springs from drum.
Remove piston seals and springs from piston. If necessary for replacement, place clutch drum in press and drive bushing out of drum.

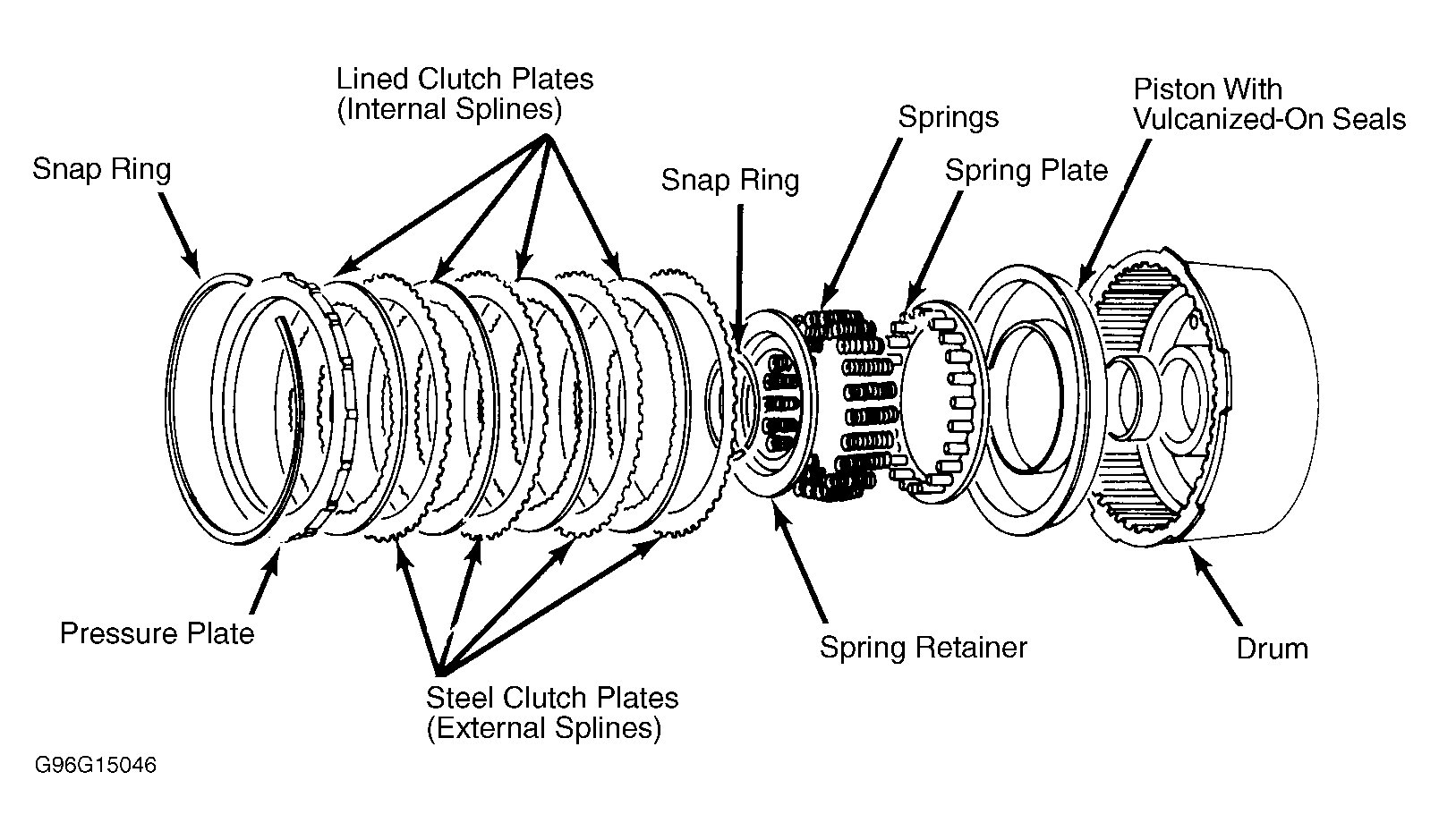

Fig 1: Exploded View Of Direct-Reverse Clutch Assembly (Model 089 Shown; Model 087 Uses 4 Inner & 4 Outer Splined Plates)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
