Band Servo: Reassembly

  1. Position spring seat, accumulator spring and shim on piston pin. Install assembly into servo piston and install retaining "E" clip onto pin.
  2. Install lip seals onto piston with smaller (upper) seal with lip facing upward into servo cover. Larger seal is positioned with lip facing downward, out of servo cover.
  3. Lubricate assembly thoroughly and install piston into cover. Install "O" rings on outer diameter of servo cover.

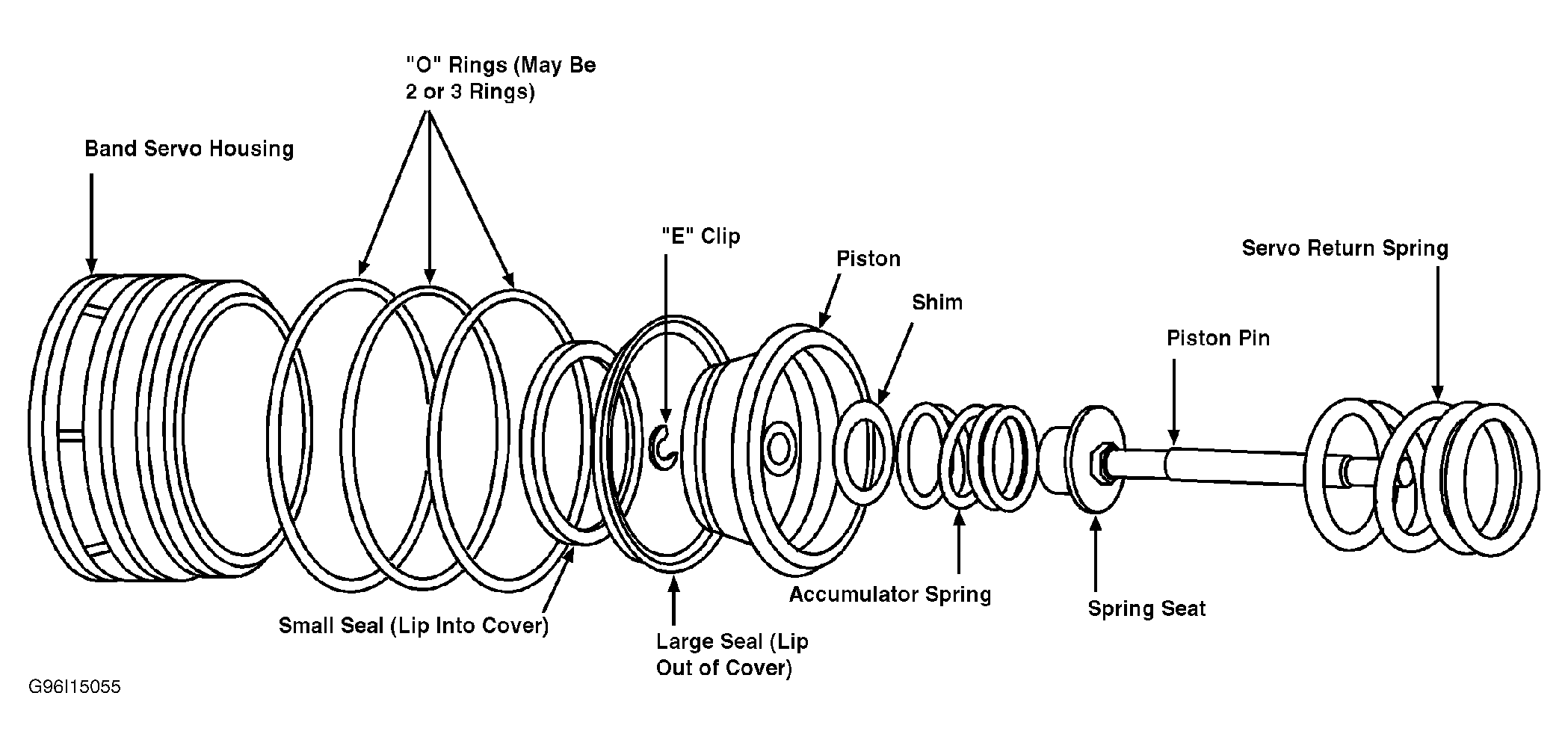

Fig 1: Exploded View Of Band Servo Assembly
G96I15055Courtesy of VOLKSWAGEN UNITED STATES, INC.
Fig 2: Installing Brake Shell In Transmission Case
G96J15056Courtesy of VOLKSWAGEN UNITED STATES, INC.
