Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Identifying Turbocharger Wastegate Solenoid Valve Components
    GM1750487Courtesy of GENERAL MOTORS CORP.
  1. If replacing the turbocharger, perform the following steps otherwise proceed to step 7.
  2. Install the turbocharger wastegate solenoid valve to the bracket until the retainer (4) clips into place.
  3. Install the vacuum hoses to the turbocharger wastegate solenoid valve.
  4. Position the vacuum hose clamps (1, 2, and 3) at the turbocharger wastegate solenoid valve.
    5. Fig 2: Identifying Turbocharger Oil Return Hose
    GM1750408Courtesy of GENERAL MOTORS CORP.
  5. Position a NEW turbocharger oil return hose gasket (1) on the turbocharger oil return hose.
    6. CAUTION: Refer to Fastener Caution
  6. Install the turbocharger oil return hose and bolts (2) and tighten to 10 N.m (89 lb in).
    7. Fig 3: Identifying Turbocharger Components
    GM1750407Courtesy of GENERAL MOTORS CORP.
  7. Install a NEW turbocharger gasket (1) onto the exhaust manifold studs.
  8. Lubricate and install a NEW turbocharger oil return hose O-ring seal (3).
  9. Install the turbocharger oil return hose to the engine block while also installing the turbocharger to the exhaust manifold studs.
  10. Install the turbocharger nuts (2) and tighten to 35 N.m (26 lb ft).

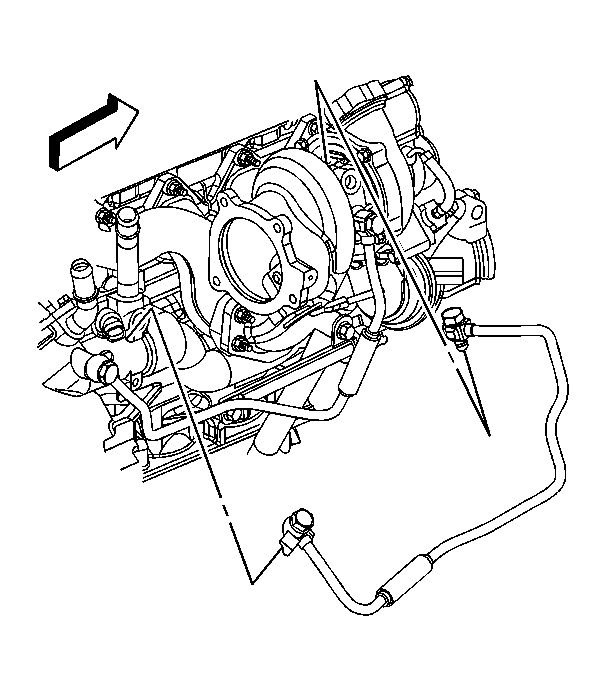

    11. Fig 4: View Of Turbocharger Oil Feed Pipe
    GM1750400Courtesy of GENERAL MOTORS CORP.
  11. Install NEW gaskets onto the turbocharger oil feed pipe fittings.
  12. Install the turbocharger oil feed pipe and bolts and tighten to 32 N.m (24 lb ft).
    13. Fig 5: View Of Turbocharger Coolant Return Pipe & Bolts
    GM1750398Courtesy of GENERAL MOTORS CORP.
  13. Install NEW gaskets onto the turbocharger coolant return pipe fittings.
  14. Install the turbocharger coolant return pipe and bolts and tighten to 35 N.m (26 lb ft).
    15. Fig 6: View Of PCV Fitting, Bolt & Pipe
    GM1826800Courtesy of GENERAL MOTORS CORP.
  15. Install a NEW O-ring seal to the PCV fitting.
  16. Position the PCV pipe (with fitting) and install the PCV fitting bolt to the turbocharger and tighten to 10 N.m (89 lb in).
    17. Fig 7: Identifying Turbocharger Coolant Feed Pipe & Bolts
    GM1750401Courtesy of GENERAL MOTORS CORP.
  17. Position the turbocharger coolant feed pipe to the turbocharger.
  18. Install NEW gaskets onto the turbocharger coolant feed pipe fitting.
  19. Install the turbocharger coolant feed pipe bolt (1) at the turbocharger and tighten to 35 N.m (26 lb ft).
  20. Install the turbocharger coolant feed pipe bolt (3) to the cylinder head and tighten to 10 N.m (89 lb in).
    21. Fig 8: View Of Turbocharger Coolant Feed Pipe Clips & Studs
    GM1750409Courtesy of GENERAL MOTORS CORP.
  21. Install the engine wiring harness clip (1) to the turbocharger coolant feed pipe.
    22. Fig 9: Identifying Charge Air Bypass Solenoid Components
    GM1750413Courtesy of GENERAL MOTORS CORP.
  22. Install the vacuum hose to the turbocharger.
  23. Position the vacuum hose clamp (5) at the turbocharger.
    24. Fig 10: Locating turbocharger wastegate solenoid valve Harness & Connector
    GM1750410Courtesy of GENERAL MOTORS CORP.
  24. Connect the engine wiring harness electrical connector to the turbocharger wastegate solenoid valve.

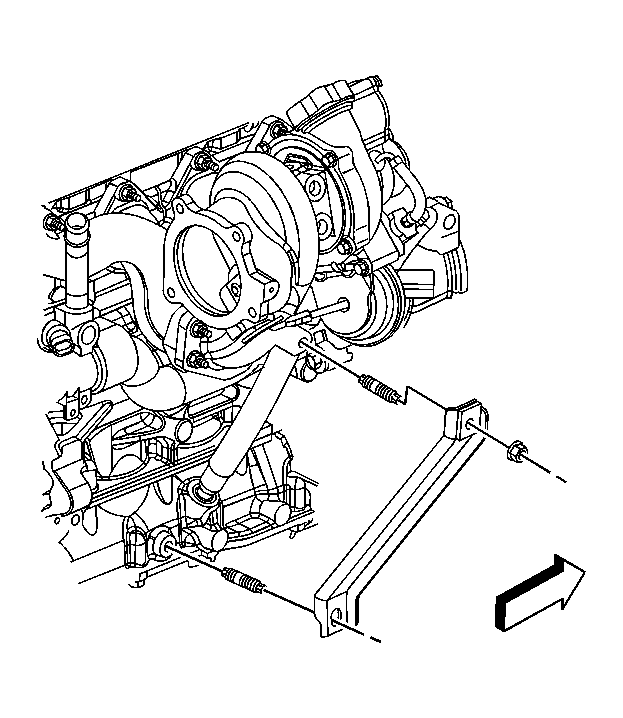

    25. Fig 11: View Of Turbocharger Brace
    GM1750405Courtesy of GENERAL MOTORS CORP.
  25. Install the turbocharger brace bolt and nut and tighten to 58 N.m (43 lb ft).

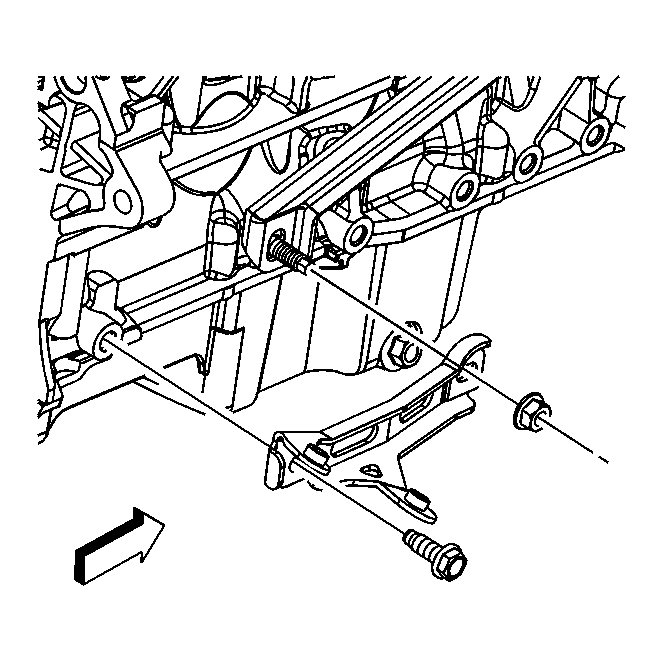

    26. Fig 12: View Of Catalytic Converter Bracket & Bolts
    GM1750403Courtesy of GENERAL MOTORS CORP.
  26. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle
  27. Position the catalytic converter bracket to the engine.
  28. Install the catalytic converter bracket bolt, and nut until snug.
  29. Install the catalytic converter. Refer to Catalytic Converter Replacement (LNF)
  30. Tighten the catalytic converter bracket bolt and nut and tighten to 58 N.m (43 lb ft).
    31. Fig 13: Identifying Turbocharger Heat Shield & Bolts
    GM1750397Courtesy of GENERAL MOTORS CORP.
  31. Lower the vehicle.
  32. Install the turbocharger heat shield and bolts (1) and tighten to 10 N.m (89 lb in).
    33. Fig 14: Identifying Charge Air Cooler Inlet Pipe
    GM1769629Courtesy of GENERAL MOTORS CORP.
  33. Install the charge air cooler pipe and gasket to the turbocharger.
  34. Install the charge air cooler pipe bolts at the turbocharger and tighten to 22 N.m (16 lb ft).
  35. Install the charge air cooler inlet pipe. Refer to Charge Air Cooler Inlet Pipe Replacement
  36. Fill the cooling system. Refer to Cooling System Draining and Filling (GE-47716) or Cooling System Draining and Filling (Static Fill-LNF)
