Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Engine Oil Cooler
    GM1769545Courtesy of GENERAL MOTORS CORP.
  1. Position the oil cooler to the engine block.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the oil cooler bolts and tighten to 22 N.m (16 lb ft).
    3. Fig 2: Identifying Surge Tank Outlet Hose
    GM1826446Courtesy of GENERAL MOTORS CORP.
  3. Install the surge tank outlet hose to the oil cooler.
  4. Position the surge tank outlet hose clamp (1) at the oil cooler.
    5. Fig 3: Identifying Radiator Outlet Hose Components
    GM1826444Courtesy of GENERAL MOTORS CORP.
  5. Install the radiator outlet hose to the oil cooler.
  6. Install the radiator outlet hose to the thermostat housing.
  7. Position the radiator outlet hose clamp (2) at the thermostat housing.
  8. Position the radiator outlet hose clamp (1) at the oil cooler.
  9. Install the radiator outlet hose clip (3) to the bracket.

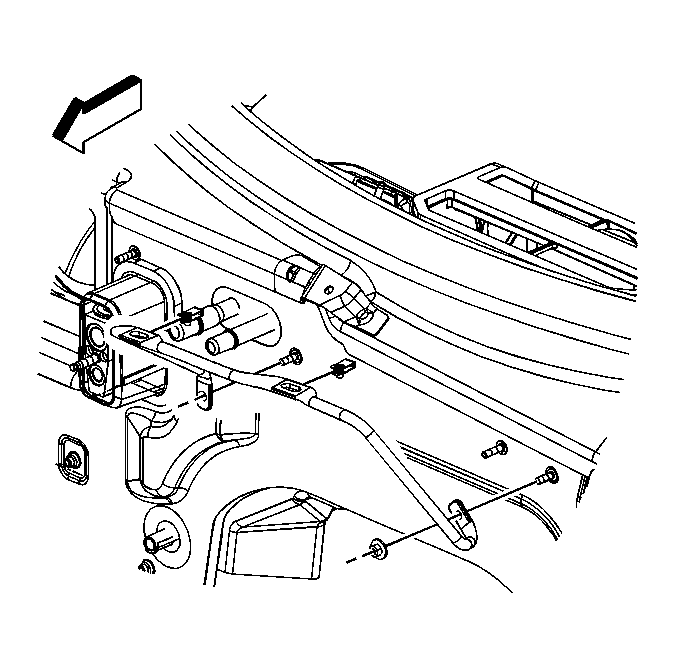

    10. Fig 4: View Of Intake CMP Sensor & Air Inlet Screen Support
    GM1826449Courtesy of GENERAL MOTORS CORP.
  10. Install the air inlet screen support and nuts and tighten to 10 N.m (89 lb in).
  11. Install the intake CMP sensor.
  12. Install the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement (SKY) or Air Inlet Grille Panel Replacement (Solstice) .
  13. Fill the cooling system. Refer to Cooling System Draining and Filling (GE-47716) or Cooling System Draining and Filling (Static Fill-LNF) .
