Installation Procedure

WARNING: This page is about a different variant/trim than selected.

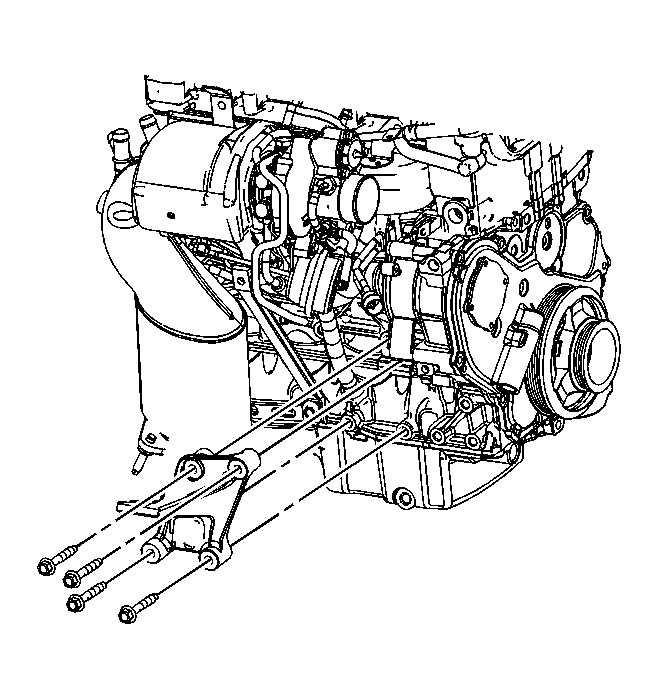

    Fig 1: View Of Right Engine Mount Bracket
    GM1717068Courtesy of GENERAL MOTORS CORP.
  1. Position the right engine mount bracket to the engine block.
  2. Install the engine mount bracket bolts until snug.
    3. CAUTION: Refer to Fastener Caution .
  3. Tighten the right engine mount bracket bolts in the following sequence, to 55 N.m (41 lb ft).
    1. Lower rear
    2. Upper front
    3. Lower front
    4. Upper rear
  4. Install the right engine mount. Refer to Engine Mount Replacement - Right Side .
