Horn Replacement

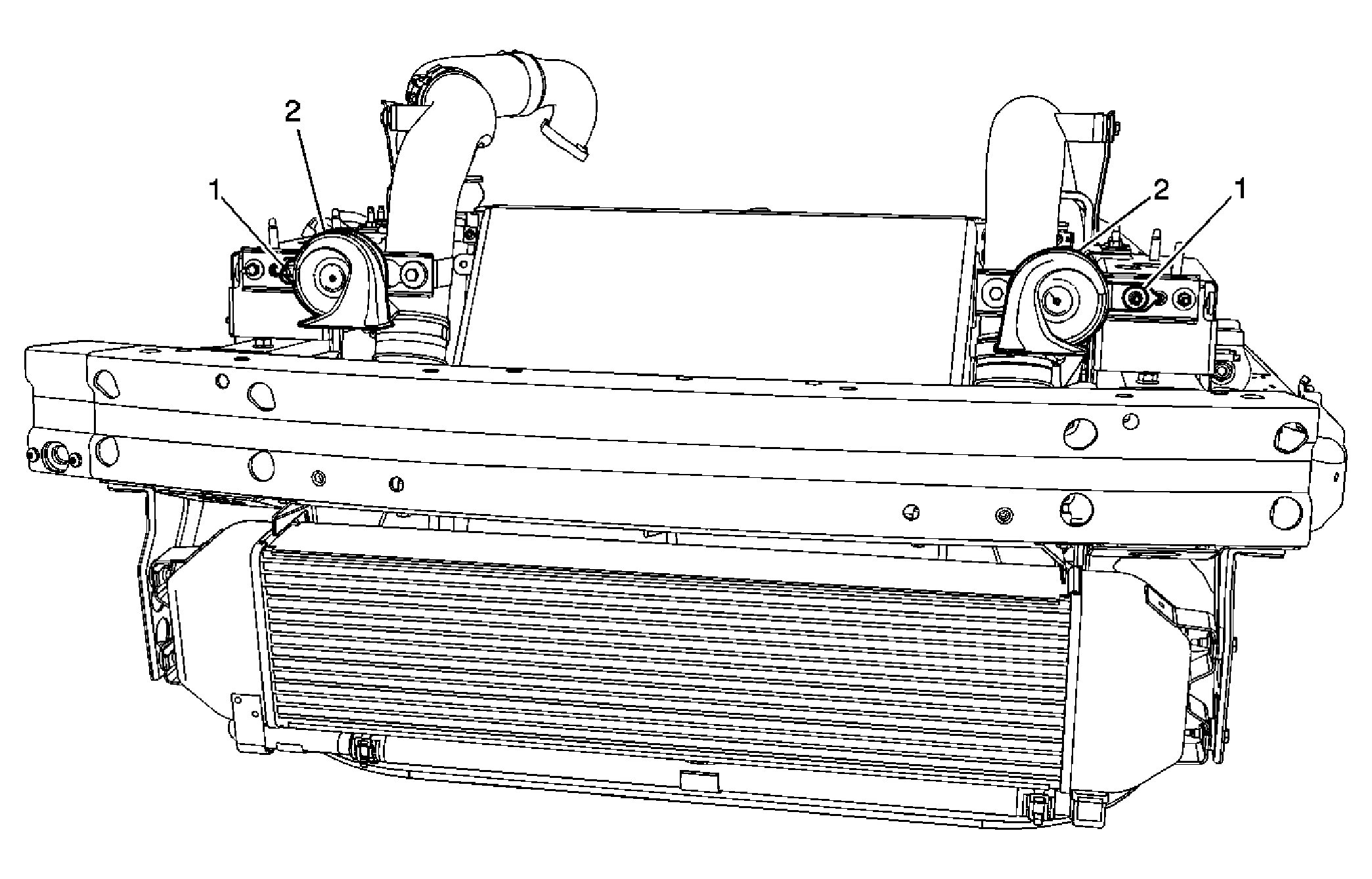

Fig 1: Identifying Horns

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front air deflector. Refer to Front Bumper Fascia Air Deflector Replacement .
1	Horn Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Horn (Qty: 2) Tip: Disconnect the electrical connector.
