Power Steering Schematics
Power Steering Schematics

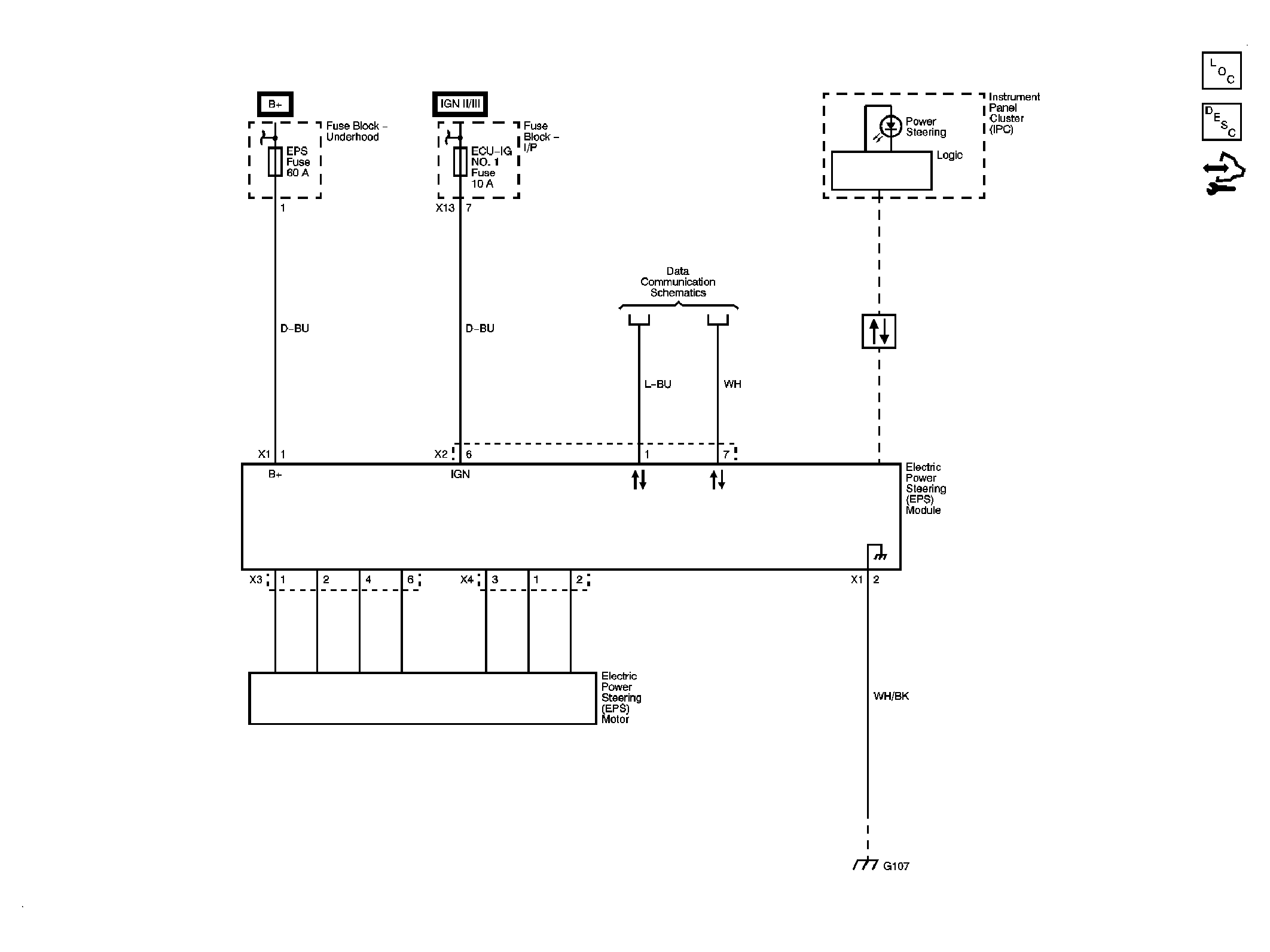

Fig 1: Power Steering Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
