SIR Schematics

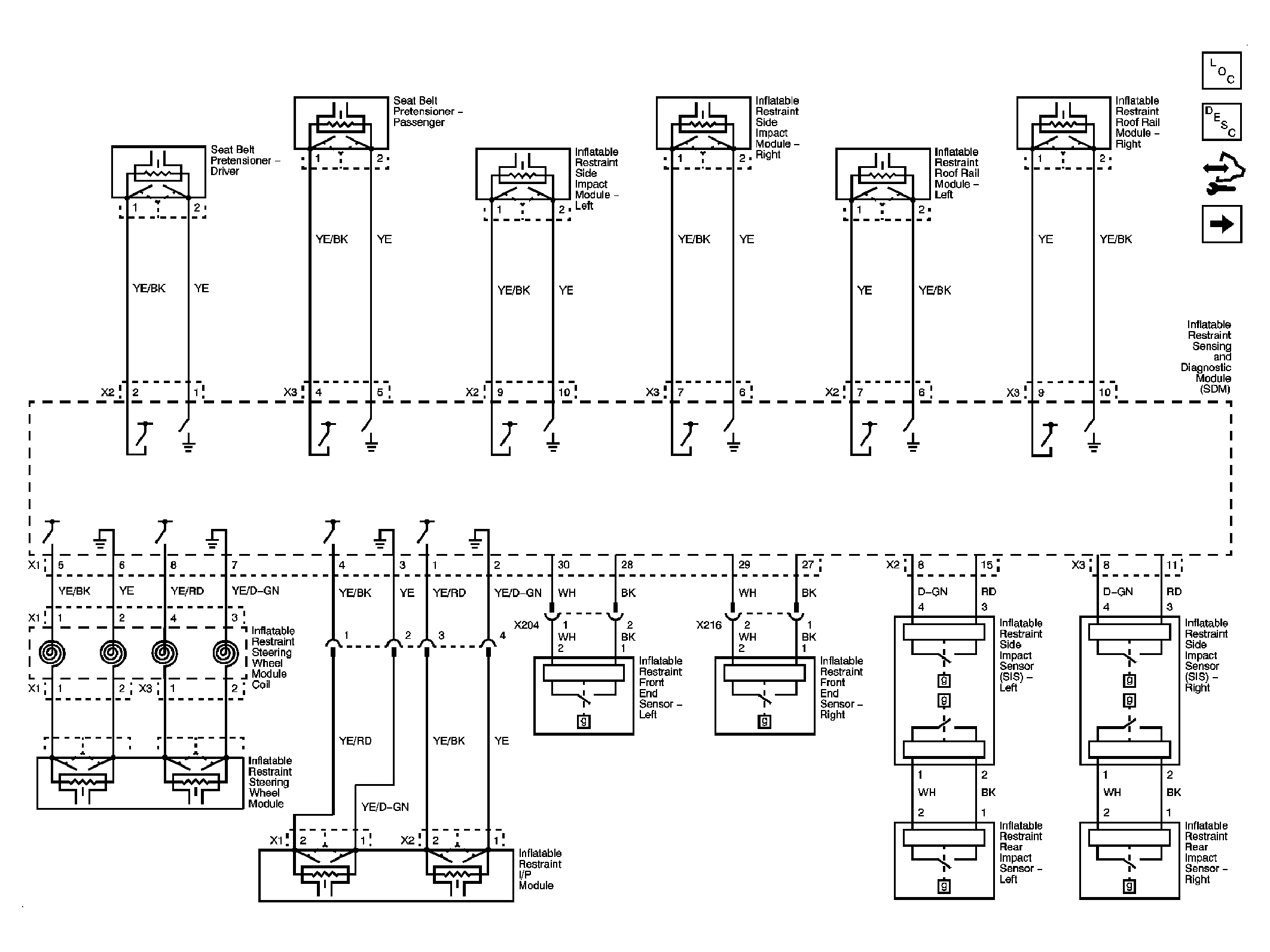

Fig 1: SDM, Indicators & Sensors Circuit Schematic
GM2033243Courtesy of GENERAL MOTORS CORP.

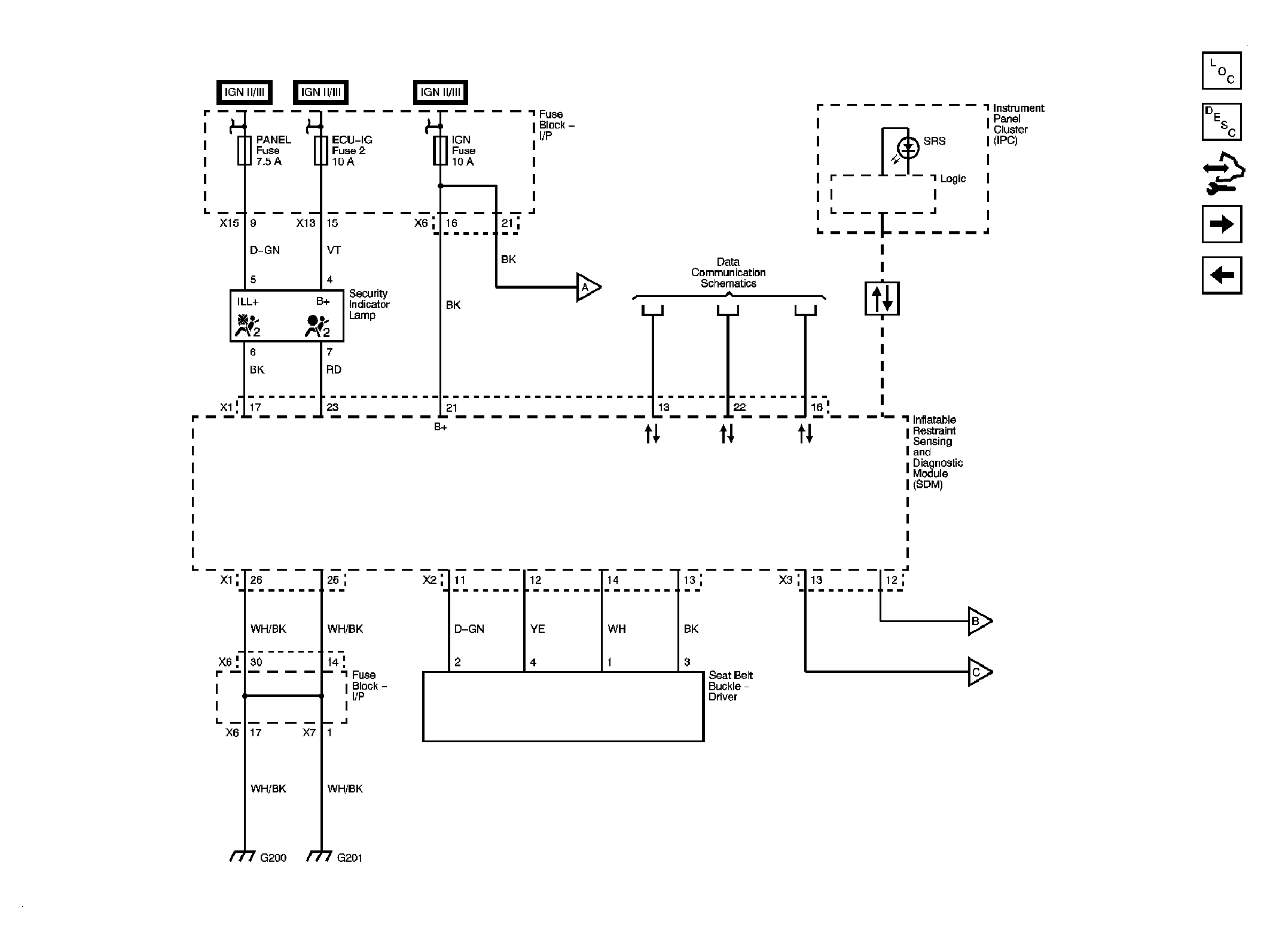

Fig 2: SDM, Power, Ground & Indicators Circuit Schematic
GM2033245Courtesy of GENERAL MOTORS CORP.

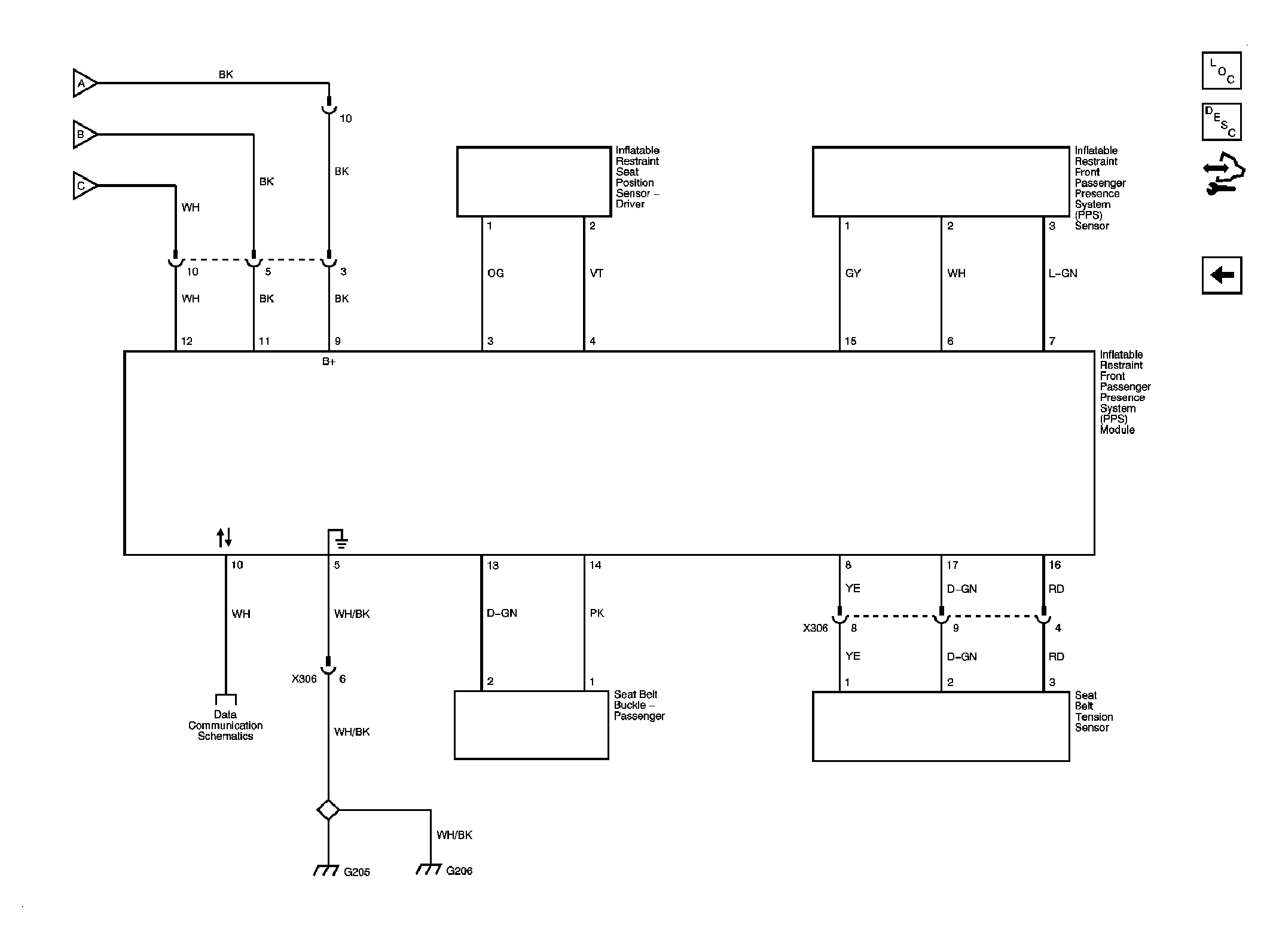

Fig 3: Passenger Presence Module & Sensors Circuit Schematic
GM2033247Courtesy of GENERAL MOTORS CORP.
