Reassembly Procedure

WARNING: This page is about a different variant/trim than selected.

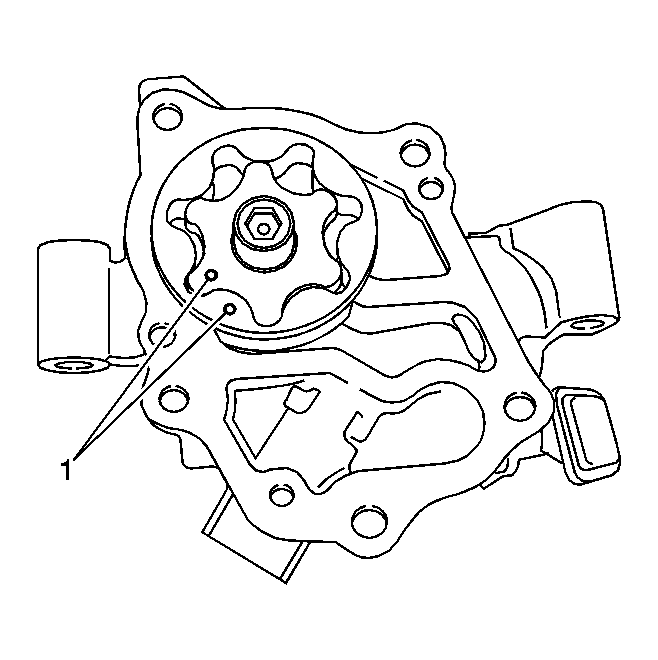

    Fig 1: Identifying Oil Pump Drive & Driven Rotors
    GM2014274Courtesy of GENERAL MOTORS CORP.
  1. Coat the oil pump drive and driven rotors with engine oil, and place them into the oil pump with the marks facing the oil pump cover side.
    2. Fig 2: Identifying Oil Pump Cover Bolts
    GM2014261Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER CAUTION .
  2. Install the oil pump cover with the 5 bolts.

    Tighten:  Tighten to 8.8 N.m (78 lb in).

    3. Fig 3: Identifying Oil Pump Valve & Spring
    GM2014259Courtesy of GENERAL MOTORS CORP.
  3. Coat the relief valve with engine oil.
  4. Insert the relief valve and spring into the pump body hole.
  5. Using a 27 mm socket wrench, install the plug.

    Tighten:  Tighten to 49 N.m (36 lb ft).
