Disassembly Procedure

WARNING: This page is about a different variant/trim than selected.

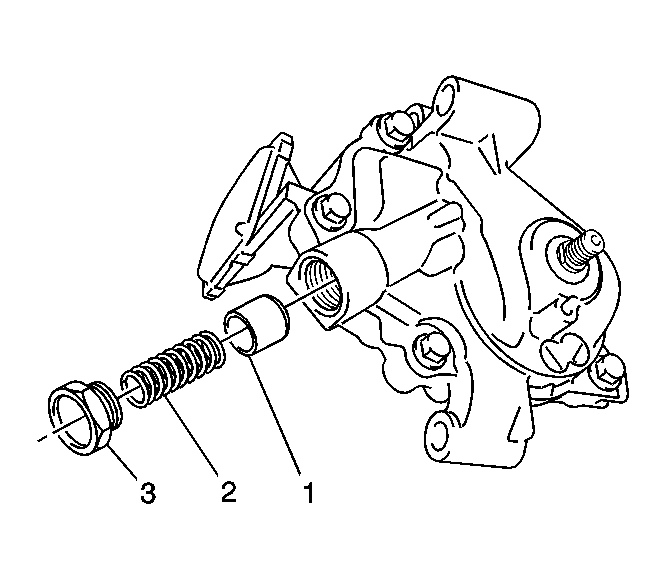

    Fig 1: Identifying Oil Pump Valve & Spring
    GM2014259Courtesy of GENERAL MOTORS CORP.
  1. Using a 27 mm socket wrench, remove the plug.
  2. Remove the valve spring and relief valve.

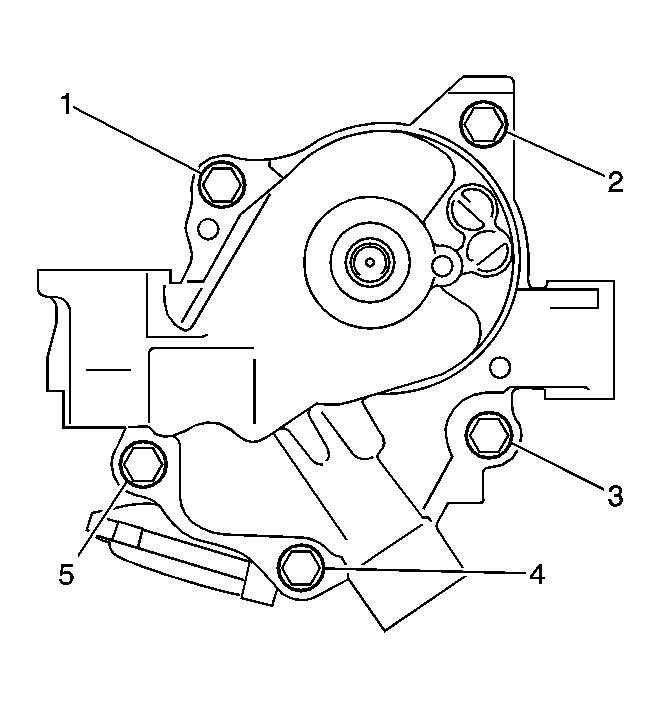

    3. Fig 2: Identifying Oil Pump Cover Bolts
    GM2014261Courtesy of GENERAL MOTORS CORP.
  3. Remove the 5 bolts and oil pump cover.
  4. Remove the oil pump drive and driven rotors from the oil pump.
