Installation Procedure

WARNING: This page is about a different variant/trim than selected.

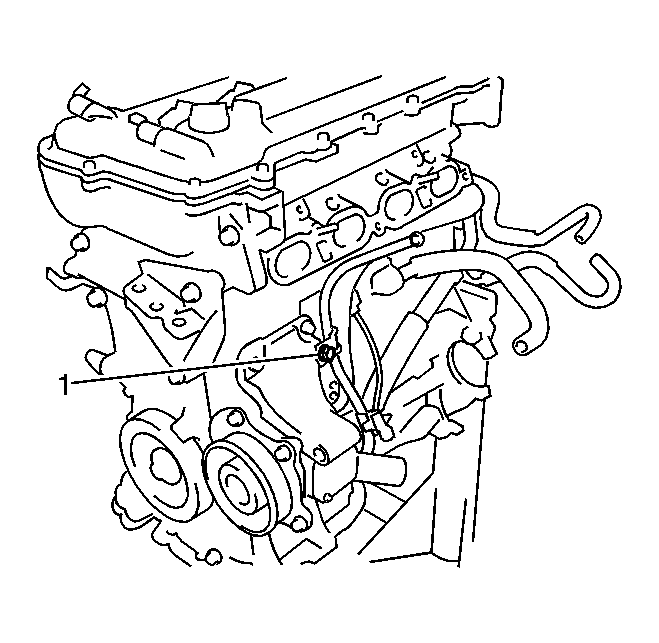

    Fig 1: Identifying Oil Level Indicator & Tube
    GM2016993Courtesy of GENERAL MOTORS CORP.
  1. Use new engine oil in order to coat the new guide tube seal.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the new guide tube seal (1) to the guide tube. Secure the guide tube to the cylinder block using one bolt and tighten to 14 N.m (10 lb ft).
  3. Install the oil level indicator to the guide tube.
