Engine Support Fixture
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS CORP.

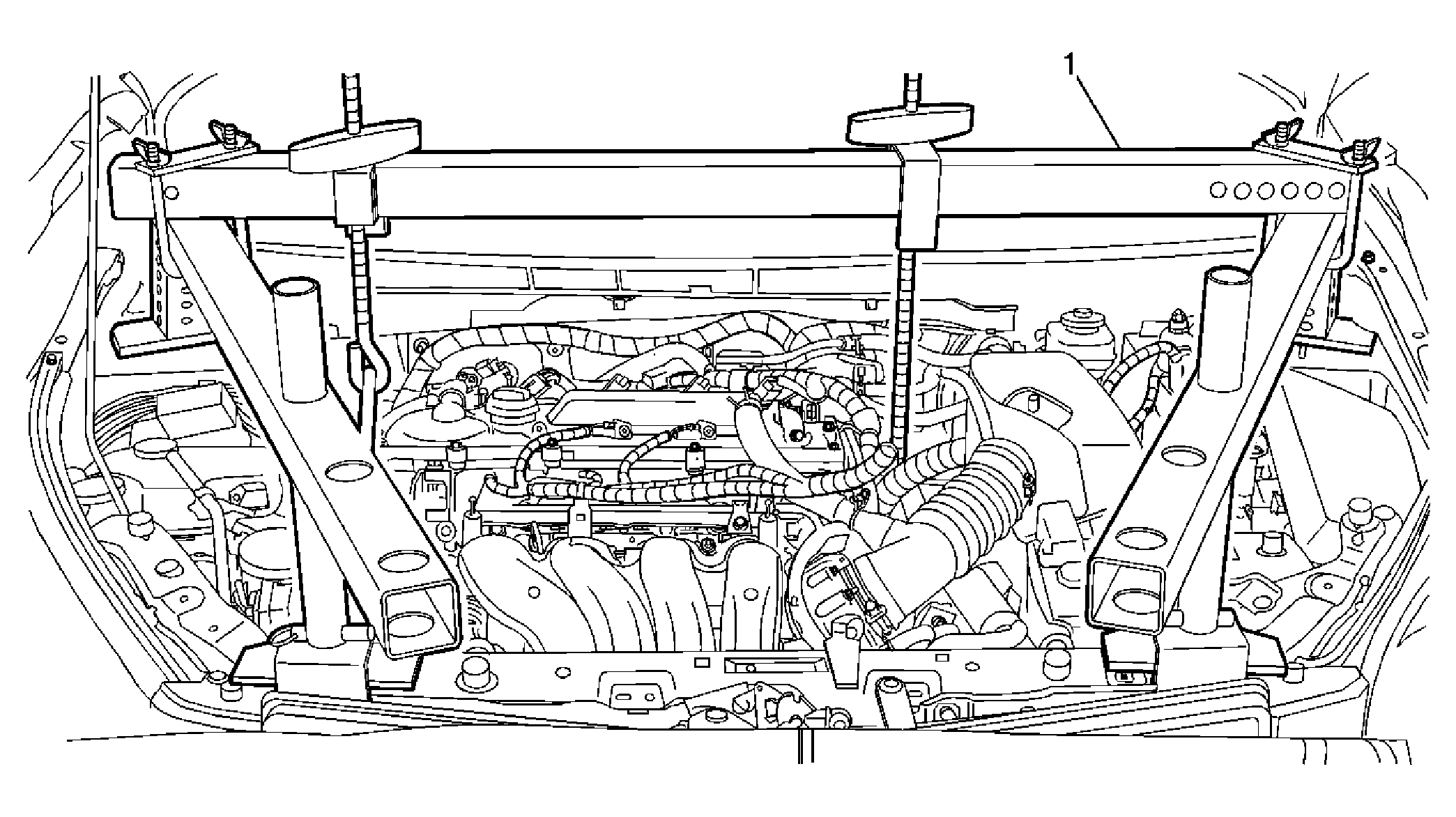

| Callout |
Component Name |
| 1 |
Assemble the Engine Support Fixture.
Tip:
As shown in the illustration.Special Tools
- J-28467-B:
Universal Engine Support Fixture
- J-28467-4:
Engine Support Bracket
- J-36462-A:
Engine Support Adapter Leg Set
- J-36857:
Engine Lift Bracket
|
