Installation Procedure

WARNING: This page is about a different variant/trim than selected.

CAUTION: Refer to Fastener Caution

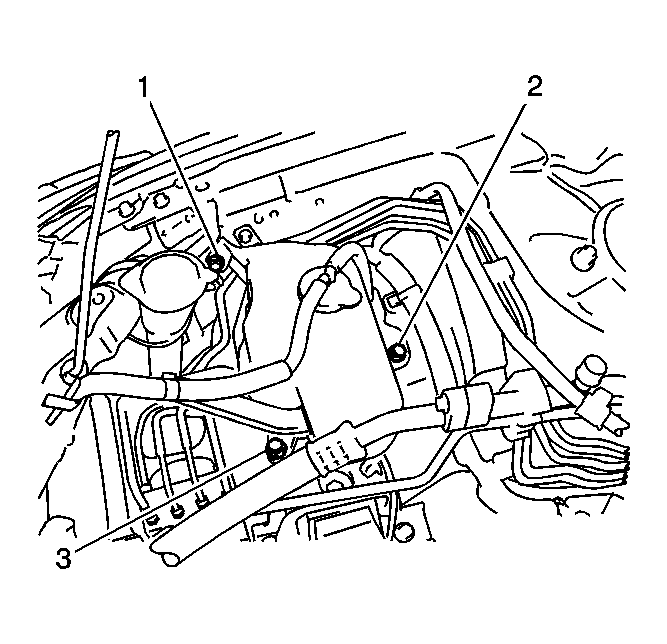

Fig 1: View Of Engine Mounting Insulator Bolts - Right Side

Courtesy of GENERAL MOTORS CORP.

Install the engine mounting insulator RH with the 3 bolts (1-3).

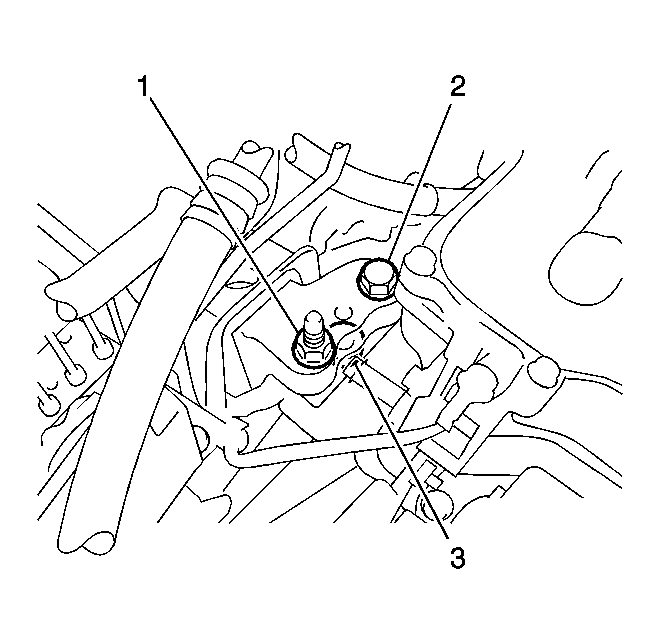

Fig 2: View Of Radiator Surge Tank Assembly Bolts
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the bolts to 52 N.m (38 lb ft).
Install the radiator reserve tank with the 3 bolts (1-3).

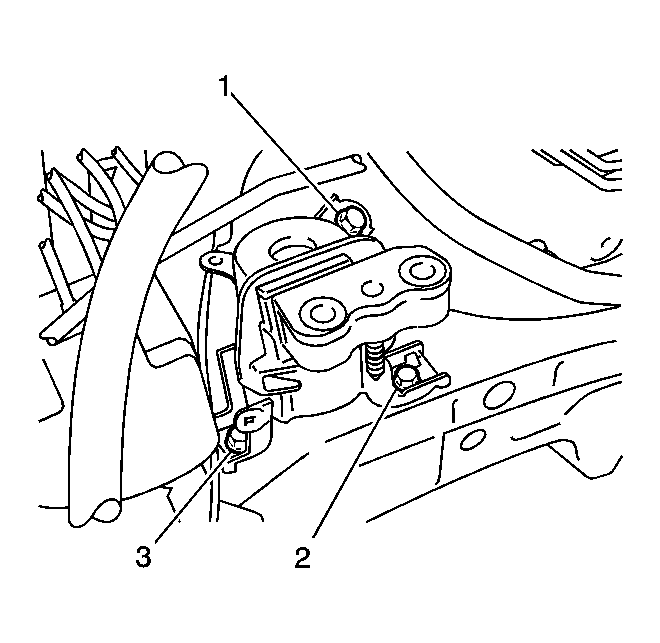

Fig 3: Identifying Mounting Bolts
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the bolts to 7.0 N.m (62 lb in).
Install the engine mounting insulator RH with the bolt and 2 nuts.
Tighten
- Tighten the nut 1 to 95 N.m (70 lb ft)
- Tighten the nut 2 to 52 N.m (38 lb ft)
- Tighten the bolt 3 to 95 N.m (70 lb ft)
Remove the engine support fixture.
Connect the negative battery cable. Refer to Battery Negative Cable Disconnection And Connection .
