Removal Procedure

WARNING: This page is about a different variant/trim than selected.

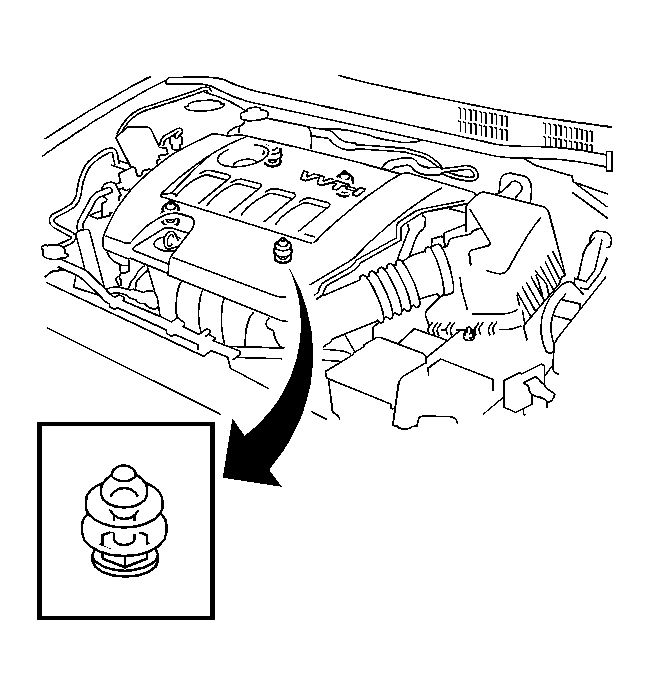

    Fig 1: View Of Engine & Rear Clips
    GM2016873Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Attempting to disengage both front and rear clips at the same time may cause the cover to break.
  1. Hold the rear of the cover and raise it to disengage the two fasteners on the rear of the cover. Continue to raise the cover to disengage the two fasteners on the front of the cover.
  2. Remove the engine cover.
