Removal Procedure

WARNING: This page is about a different variant/trim than selected.

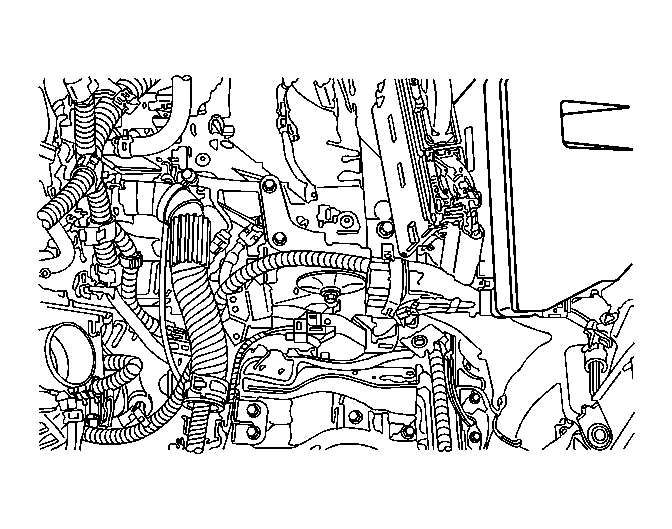

    Fig 1: Identifying Engine Block Heater Harness Plug Bundle
    GM2098532Courtesy of GENERAL MOTORS CORP.
  1. Unclip the engine block heater harness plug bundle from the resonator attachment flange.

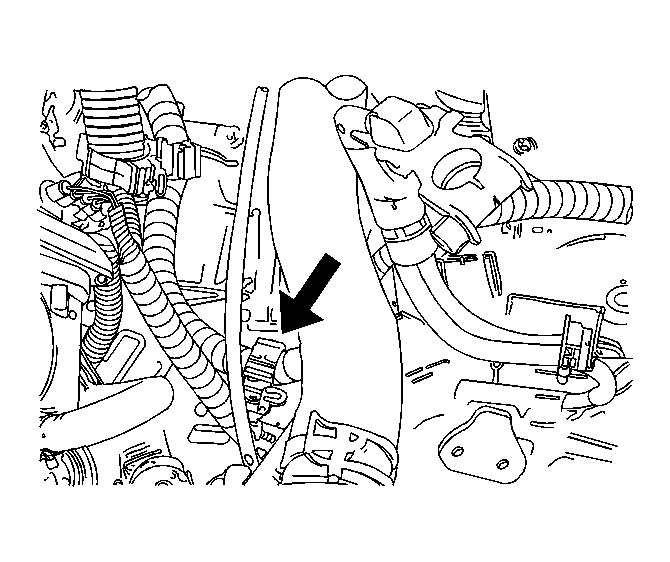

    2. Fig 2: Identifying Engine Block Heater Harness Retainer
    GM2098487Courtesy of GENERAL MOTORS CORP.
  2. Detach the engine block heater harness retainer from the neutral safety switch harness.

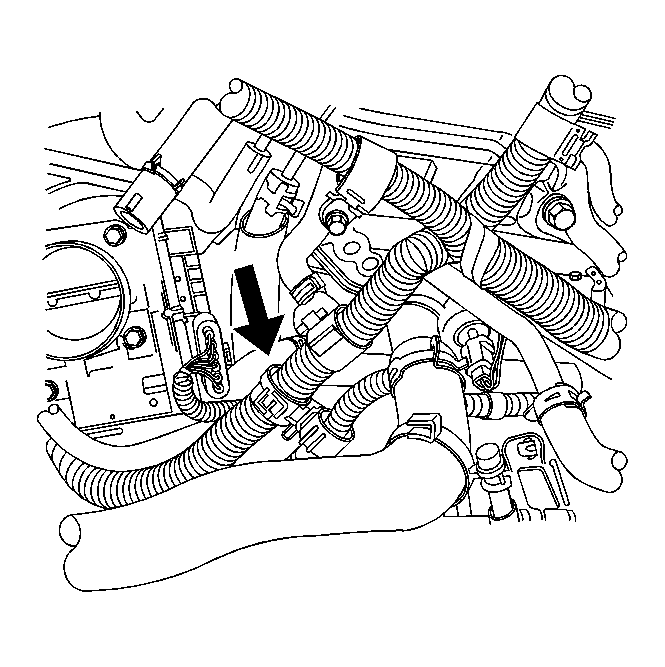

    3. Fig 3: View Of Engine Block Heater Harness Retainer
    GM2098450Courtesy of GENERAL MOTORS CORP.
  3. Detach the engine block heater harness retainer from the engine harness.
    4. Fig 4: Locating Engine Block Heater Element Retaining Clip
    GM2098539Courtesy of GENERAL MOTORS CORP.
  4. Disengage the engine block heater element retaining clip from the engine block and remove the engine block heater assembly.
