Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine assembly with transaxle. Refer to Engine Replacement
  2. Remove the transaxle assembly.
  3. Remove the clutch cover assembly and disc for the manual transaxle.
    4. Fig 1: View Of Crankshaft Pulley & Special Tool
    GM234153Courtesy of GENERAL MOTORS CORP.
  4. Remove the clutch disc assembly-for manual transaxle.
  5. Using SST, hold the crankshaft.
    6. Fig 2: Disassembled View Of Spring Bumper Assembly
    GM201855Courtesy of GENERAL MOTORS CORP.
  6. Remove the 8 bolts and the flywheel.
  7. Remove the drive plate and ring gear sub-assembly, if equipped with automatic transmission.
  8. Using SST, hold the crankshaft.

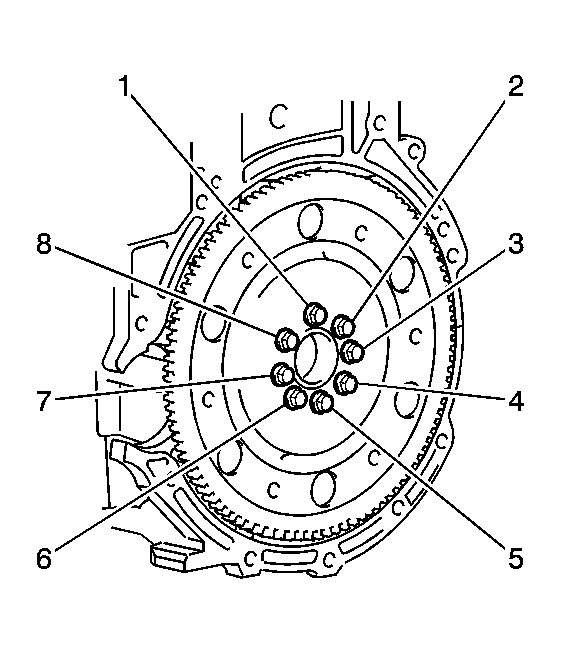

    9. Fig 3: Identifying Drive Plate Loosening Sequence
    GM2016856Courtesy of GENERAL MOTORS CORP.
  9. Remove the 8 bolts, rear spacer, drive plate and front spacer.
  10. Remove the rear engine oil seal.
  11. Using a knife, cut off the lip of the oil seal.
    12. NOTE: After removing, check the crankshaft for nicks or burrs. Smooth the surface with 400-grit sandpaper.
  12. Using a screwdriver with its tip wrapped with tape, pry out the oil seal.
