Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the front wheel RH.
  2. Remove the engine under cover RH.
  3. Remove the engine cover. Refer to Drive Belt Replacement .
  4. Remove the V-ribbed belt.
    5. Fig 1: View Of Crankshaft Pulley & Special Tool
    GM234153Courtesy of GENERAL MOTORS CORP.
  5. Remove the crankshaft pulley.
  6. Using SST, hold the pulley in place and loosen the pulley bolt.

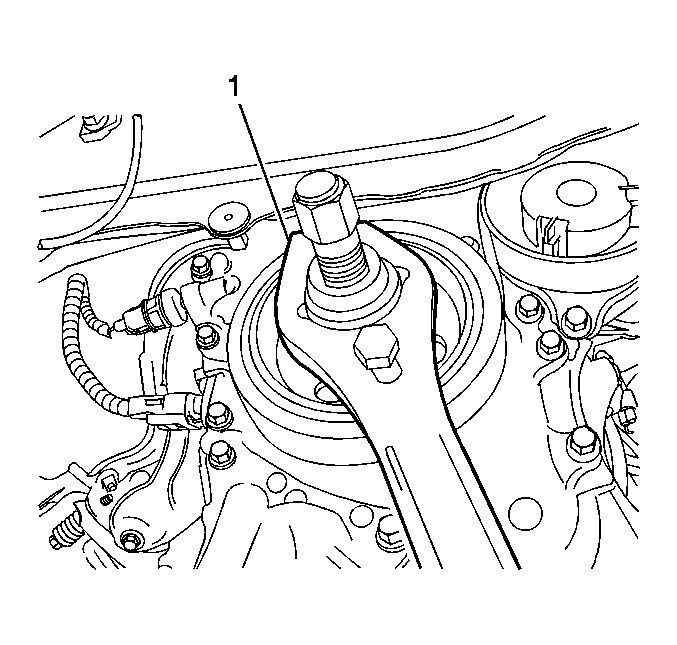

    7. Fig 2: View Of Crankshaft Pulley & Pulley Bolt Removal
    GM2150521Courtesy of GENERAL MOTORS CORP.
  7. Using SST, remove the crankshaft pulley and pulley bolt.
  8. Remove the timing chain cover oil seal.
  9. Using a knife, cut off the lip of the oil seal.

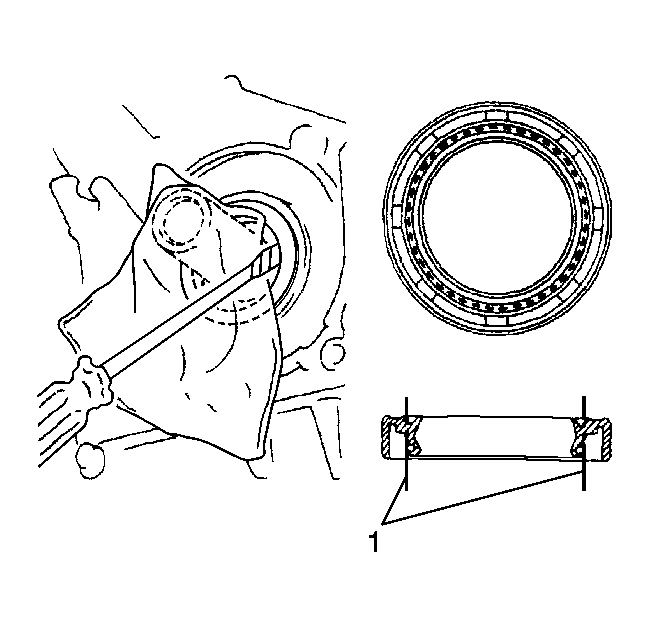

    10. Fig 3: View Of Crankshaft Front Oil Seal
    GM2016847Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: After removing, check the crankshaft for nicks or burrs. Smooth the surface with 400-grit sandpaper.
  10. Using a screwdriver with its tip wrapped with tape, pry out the oil seal.
