Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine cover.
    2. Fig 1: Identifying Oil Filler Cap
    GM2017009Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil filler cap.
    3. Fig 2: View Of Oil Filler Cap
    GM2017012Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil filler cap gasket.
    4. Fig 3: View Of Engine Cover Joints
    GM2017015Courtesy of GENERAL MOTORS CORP.
  4. Remove the 2 engine cover joints.
    5. Fig 4: View Of Spark Plug Removal/Installation
    GM2017021Courtesy of GENERAL MOTORS CORP.
  5. Using a 14 mm spark plug wrench, remove the 4 spark plugs.
    6. Fig 5: Identifying Camshaft Position Sensors
    GM2017024Courtesy of GENERAL MOTORS CORP.
  6. Remove the 2 bolts and 2 camshaft position sensors.

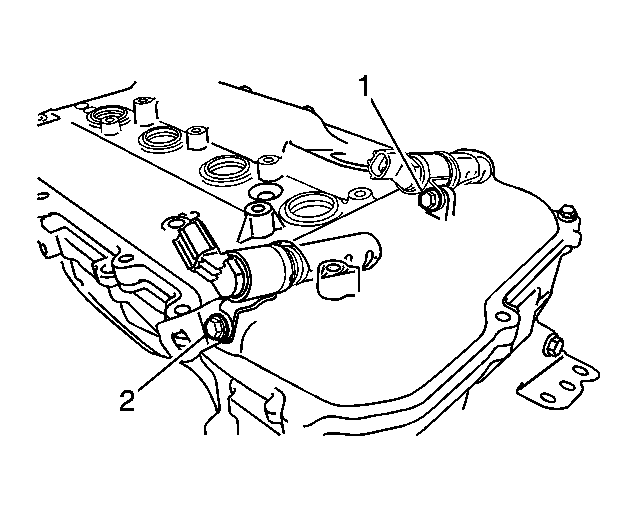

    7. Fig 6: Identifying Oil Camshaft Timing Control Valves, Bracket & Bolts
    GM2017025Courtesy of GENERAL MOTORS CORP.
  7. Remove the 2 bolts, O-rings, bracket and 2 oil camshaft timing control valves.
    8. Fig 7: Identifying Cylinder Head Cover Bolt Loosening/Tightening Sequence
    GM2017027Courtesy of GENERAL MOTORS CORP.
  8. Remove the 13 bolts, seal washer and cylinder head cover.
