Timing Chain Tensioner Installation

WARNING: This page is about a different variant/trim than selected.

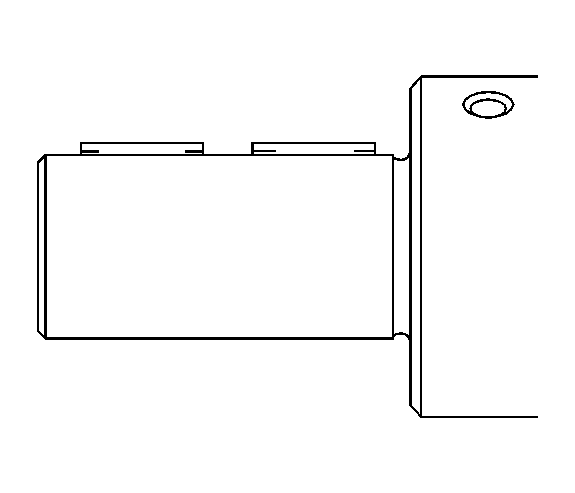

    Fig 1: View Of Crankshaft Timing Gear Keys
    GM2017151Courtesy of GENERAL MOTORS CORP.
    NOTE: Tap in the crankshaft timing gear keys until they contact the crankshaft as shown in the illustration.
  1. Using a plastic-faced hammer, tap in the 2 crankshaft timing gear keys.

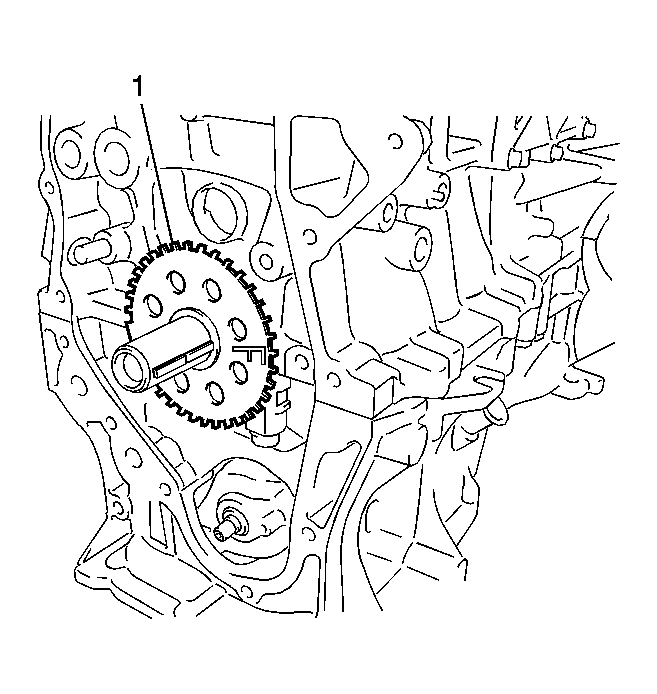

    2. Fig 2: Identifying No. 1 Crankshaft Position Sensor Plate
    GM2017057Courtesy of GENERAL MOTORS CORP.
  2. Install the No. 1 crankshaft position sensor plate with the F mark facing forward.
  3. Install the No. 2 chain sub-assembly.
  4. Install the crankshaft timing sprocket.
  5. Install the No. 1 chain vibration damper.
  6. Install the No. 2 chain vibration damper.
  7. Install the chain sub-assembly.
  8. Install the chain tensioner slipper.
