Piston and Connecting Rod Disassemble

WARNING: This page is about a different variant/trim than selected.

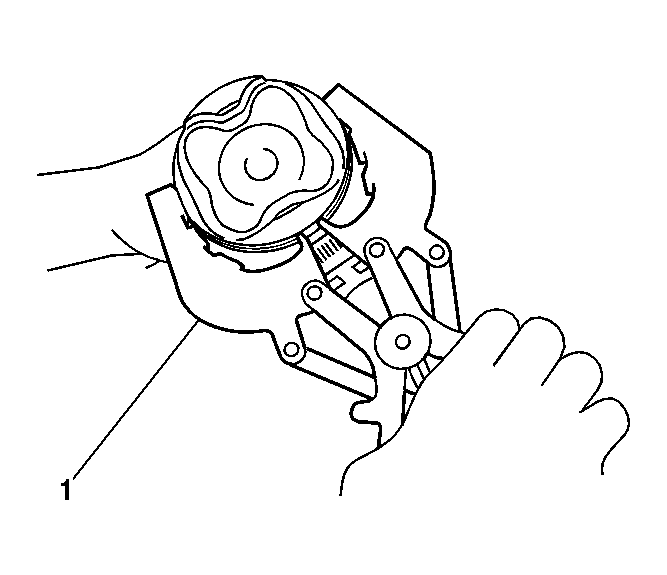

Fig 1: Using A Piston Ring Expander

Courtesy of GENERAL MOTORS CORP.

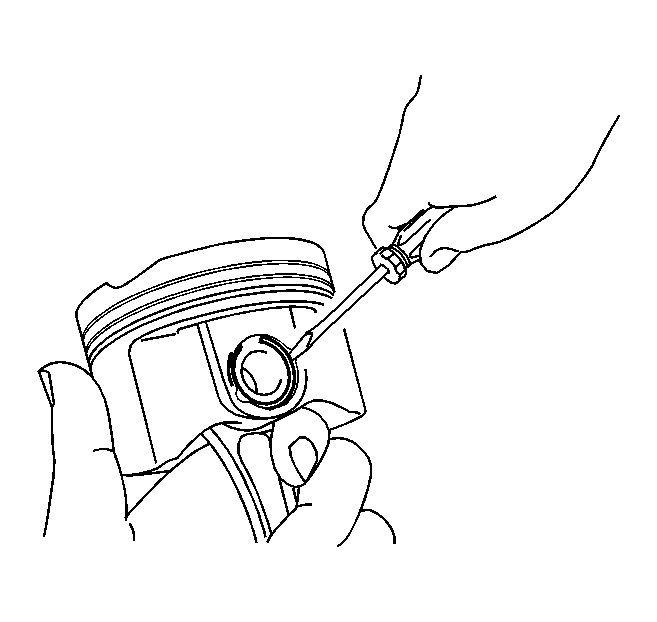

Fig 2: Identifying Snap Ring

Courtesy of GENERAL MOTORS CORP.

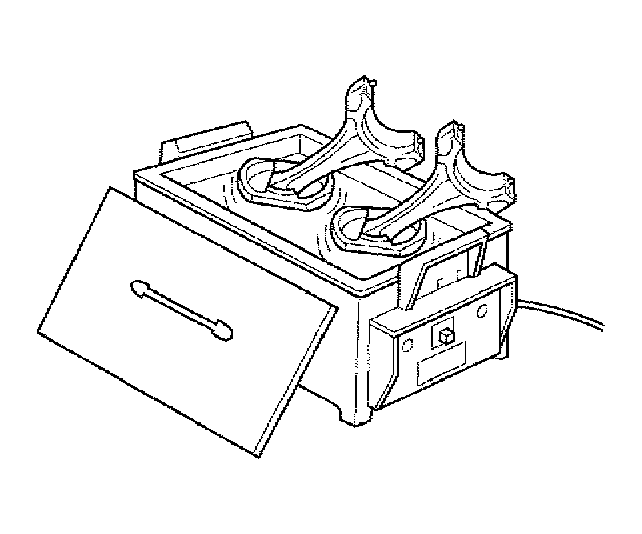

Fig 3: View Of Heating Pistons

Courtesy of GENERAL MOTORS CORP.

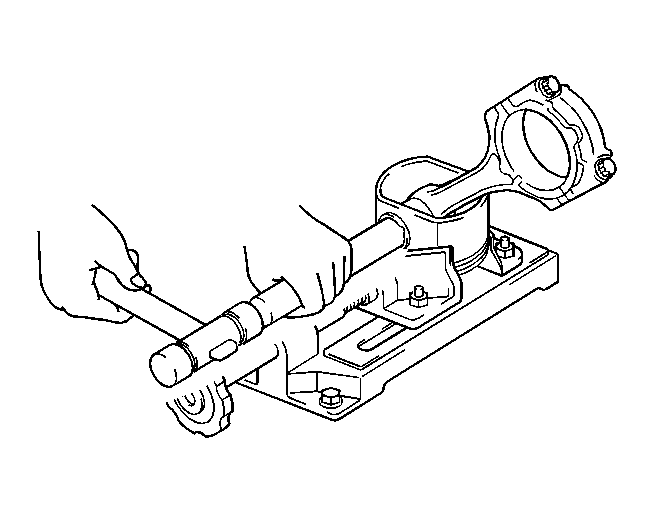

Fig 4: View Of Piston Pin Removal Procedure

Courtesy of GENERAL MOTORS CORP.

NOTE: The piston and pin are a matched set and arrange the pistons, pins, rings, connecting rods and bearings in the correct order.

Using a plastic hammer and brass bar, lightly tap out the piston pin and remove the connecting rod.
