Oil Pan Removal (Upper)

WARNING: This page is about a different variant/trim than selected.

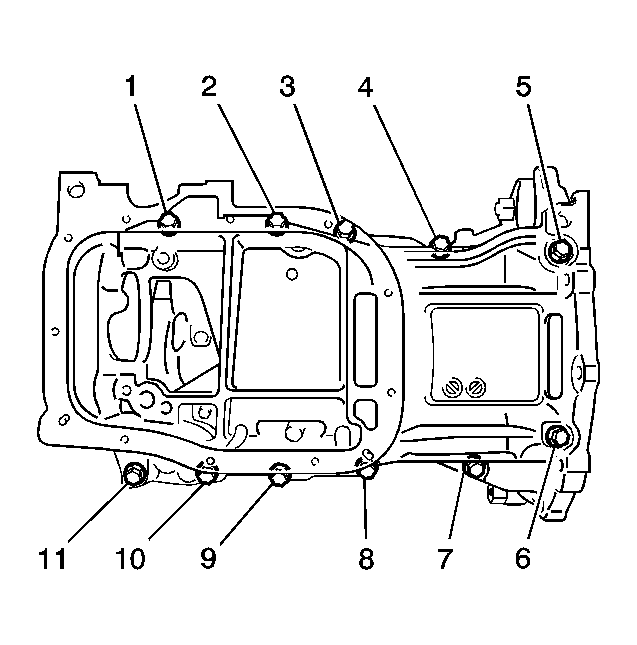

    Fig 1: Identifying Upper Oil Pan Bolt Loosening Sequence
    GM2017082Courtesy of GENERAL MOTORS CORP.
  1. Uniformly loosen and remove the 11 bolts.

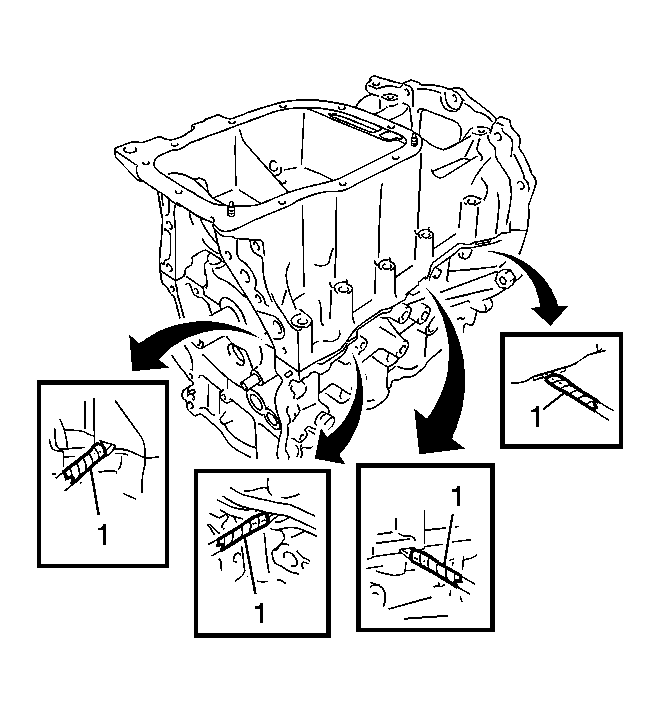

    2. Fig 2: Illustrating Upper Oil Pan Removal
    GM2017083Courtesy of GENERAL MOTORS CORP.
    CAUTION: Be careful not to damage the contact surfaces of the crankcase and cylinder block.
  2. Using a screwdriver, remove the stiffening crankcase by prying between the crankcase and cylinder block.
