Oil Pan Removal (Lower)

WARNING: This page is about a different variant/trim than selected.

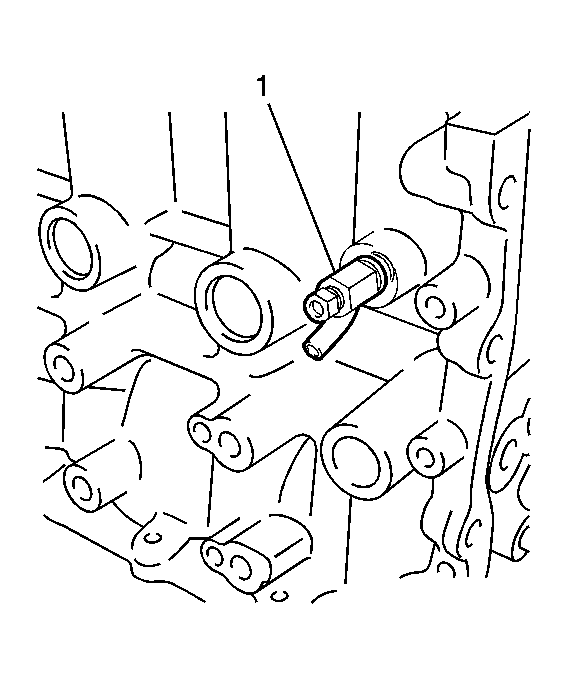

    Fig 1: Identifying Water Drain Cock Plug
    GM2017073Courtesy of GENERAL MOTORS CORP.
  1. Remove the water drain cock plug from the water drain cock sub-assembly.
  2. Remove the cylinder block water drain cock subassembly from the cylinder block.
    3. Fig 2: Identifying Ventilation Valve
    GM2017075Courtesy of GENERAL MOTORS CORP.
  3. Remove the ventilation valve.

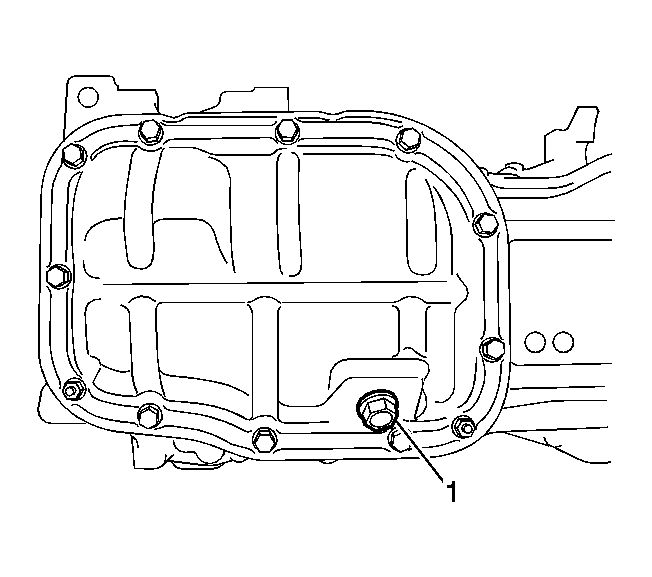

    4. Fig 3: Identifying Oil Pan Drain Plug & Gasket
    GM2017080Courtesy of GENERAL MOTORS CORP.
  4. Remove the oil pan drain plug and gasket.
  5. Remove the No. 2 oil pan sub-assembly.
