Oil Pan Installation (Upper)

WARNING: This page is about a different variant/trim than selected.

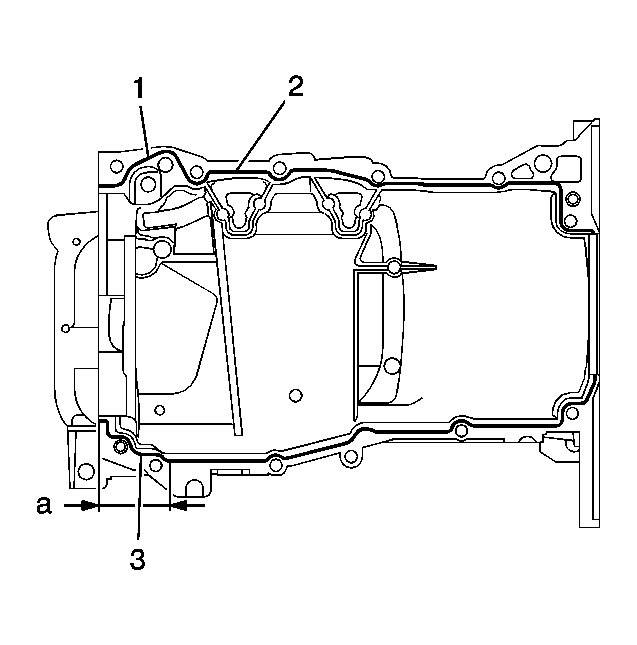

    Fig 1: View Of Upper Oil Pan
    GM2017129Courtesy of GENERAL MOTORS CORP.
    NOTE:
    • Remove any oil from the contact surface.
    • Install the crankcase within 3 minutes after applying seal packing.
    • Do not start the engine for at least 2 hours after installing the stiffening crankcase.
  1. Apply Three Bond 1207B or equivalent, in a continuous bead (diameter: 2.5 mm (0.098 in)) to the places shown.

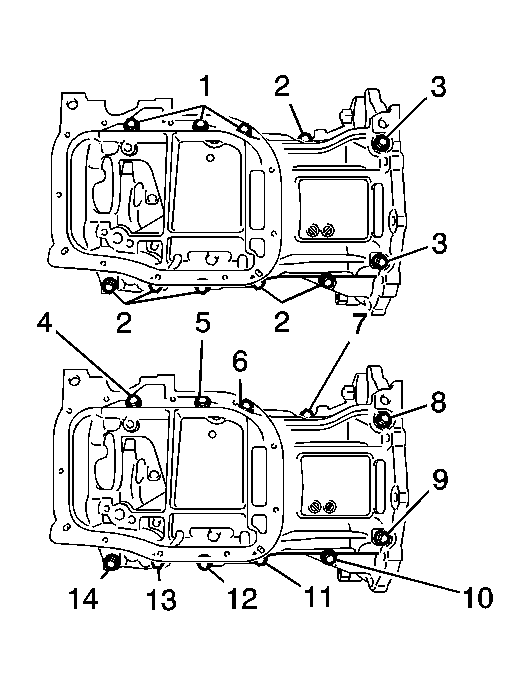

    2. Fig 2: Identifying Upper Oil Pan Bolt Tightening Sequence
    GM2017133Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  2. Install the stiffening crankcase with the 11 bolts and tighten to 21 N.m (16 lb ft).
  3. Check the torque for bolts 1 and 2 and tighten to 21 N.m (16 lb ft).
  4. Wipe off any excess seal packing with a clean piece of cloth.
