Intake Manifold Removal

WARNING: This page is about a different variant/trim than selected.
  1. Install the engine stand.
  2. Set the engine on an engine stand.
  3. Remove the engine hanger.
  4. Remove the bolt and fan belt adjusting bar.
  5. Remove the wire harness clamp bracket.
  6. Remove the 2 bolts and disconnect the air tube.
  7. Disconnect the ventilation hose from the intake manifold.

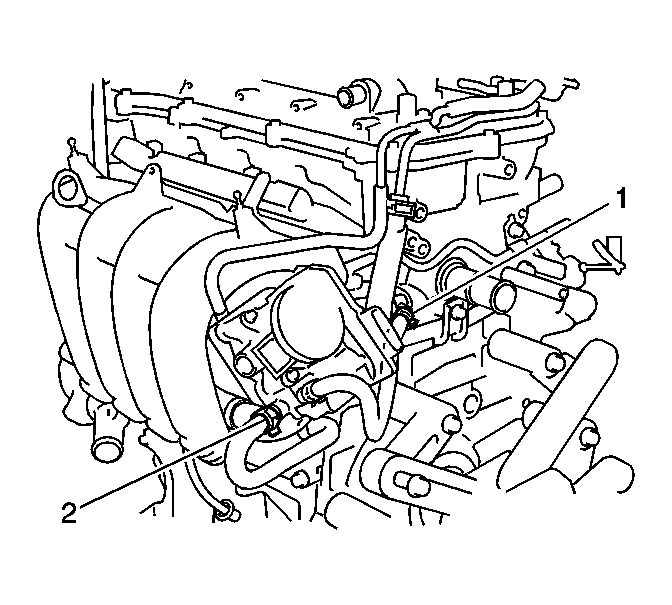

    8. Fig 1: Identifying Water By-Pass Hoses
    GM2016990Courtesy of GENERAL MOTORS CORP.
  8. Disconnect the 2 water by-pass hoses.

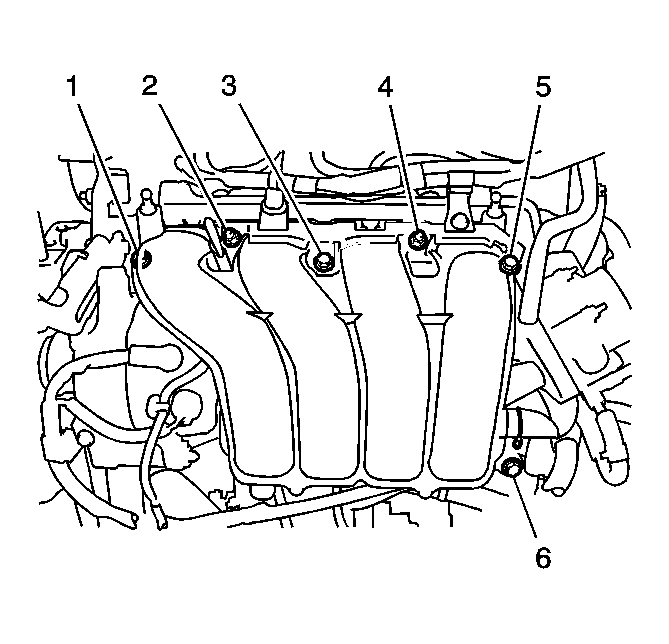

    9. Fig 2: Identifying Intake Manifold, Intake Manifold Stay, Bolts & Nuts
    GM2016992Courtesy of GENERAL MOTORS CORP.
  9. Remove the 4 bolts and 2 nuts, and remove the intake manifold and intake manifold stay.
  10. Remove the gasket from the intake manifold.
  11. Disconnect the fuel tube sub-assembly.
  12. Remove the fuel delivery pipe sub-assembly.
  13. Remove the fuel injector assembly.
  14. Remove the 4 bolts and 4 ignition coils.
