Exhaust Manifold Installation

WARNING: This page is about a different variant/trim than selected.

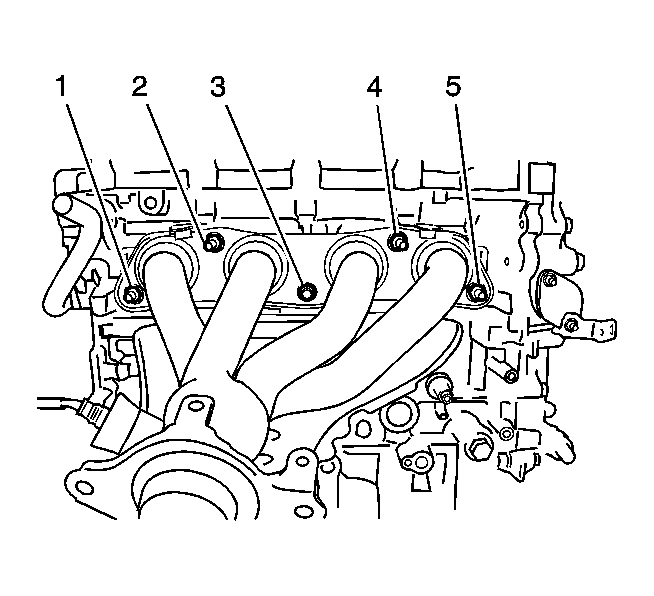

    Fig 1: Identifying Exhaust Manifold Nuts
    GM2017000Courtesy of GENERAL MOTORS CORP.
  1. Install a new gasket onto the exhaust manifold.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the exhaust manifold with the 5 nuts and tighten to 21 N.m (16 lb ft).

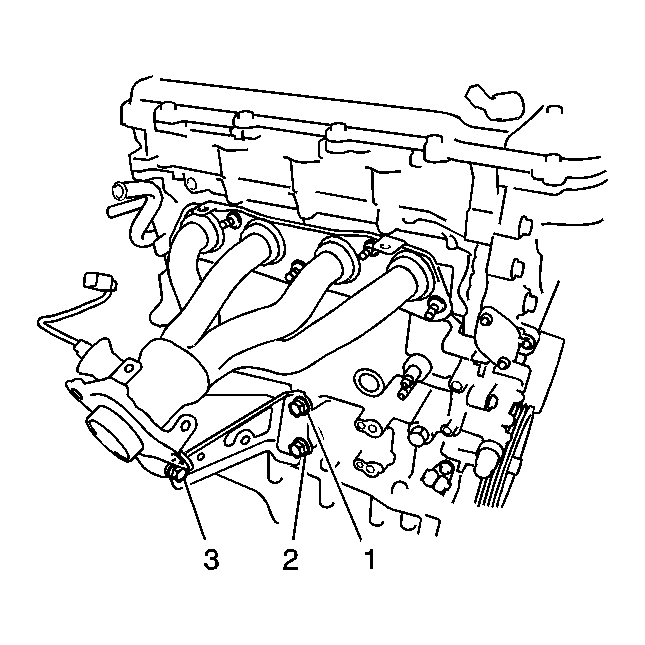

    3. Fig 2: Identifying Exhaust Manifold Bolts & Stay
    GM2016998Courtesy of GENERAL MOTORS CORP.
  3. Install the manifold stay with the 3 bolts and tighten to 43 N.m (32 lb ft).

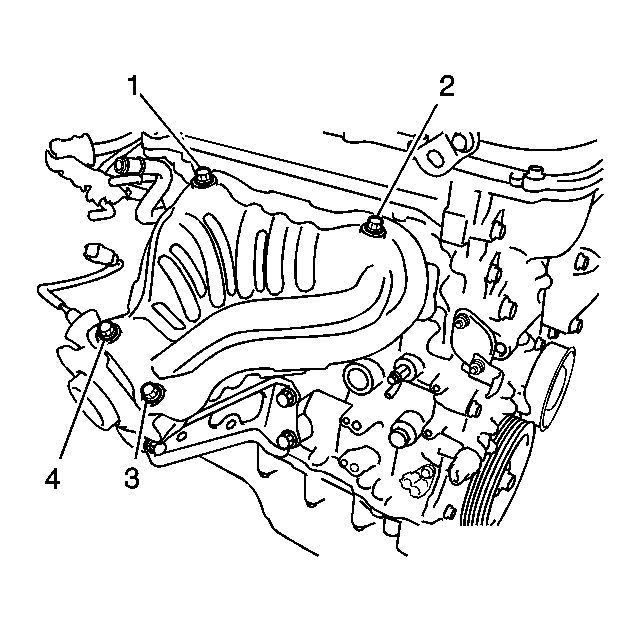

    4. Fig 3: Identifying Exhaust Manifold Heat Insulator Bolts
    GM2016997Courtesy of GENERAL MOTORS CORP.
  4. Install No. 1 exhaust manifold heat insulator with the 4 bolts and tighten to 12 N.m (9 lb ft).
