Engine Block Cleaning and Inspection

WARNING: This page is about a different variant/trim than selected.

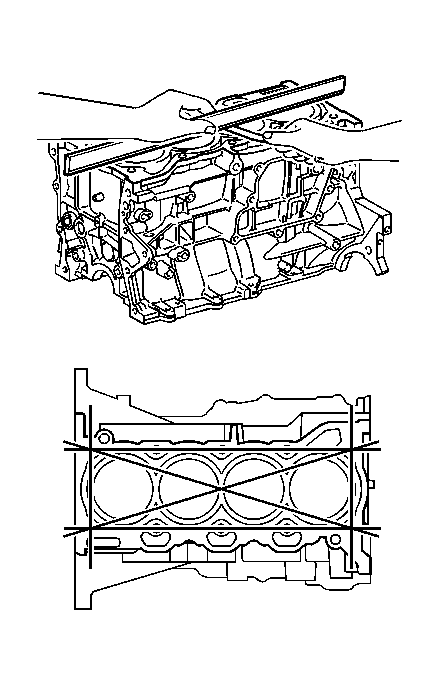

    Fig 1: Inspecting Engine Block For Flatness
    GM2017275Courtesy of GENERAL MOTORS CORP.
  1. Inspect cylinder block for warpage.
  2. Using a precision straightedge and feeler gauge, measure the warpage of the surface that is in contact with the cylinder head gasket.

    Specification:  Maximum warpage: 0.05 mm (0.0020 in)

  3. If the warpage is greater than the maximum, replace the cylinder block.

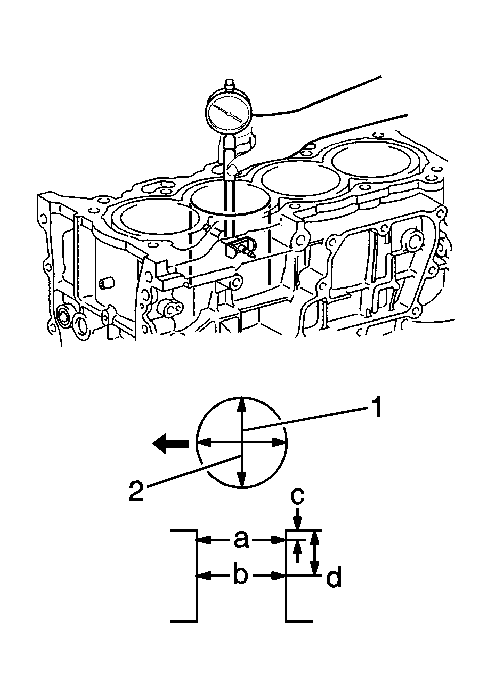

  4. Fig 2: Inspecting Cylinder Bore
    GM2017276Courtesy of GENERAL MOTORS CORP.
  5. Inspect the cylinder bore.
  6. Using a cylinder gauge, measure the cylinder bore diameter at positions A and B in both thrust and axial directions.

    Specification:

    • Standard diameter: 80.500-80.513 mm (3.1693-3.1698 in)
    • Maximum diameter: 80.633 mm (3.1745 in)

  7. If the average diameter of the 4 positions is greater than the maximum, replace the cylinder block.

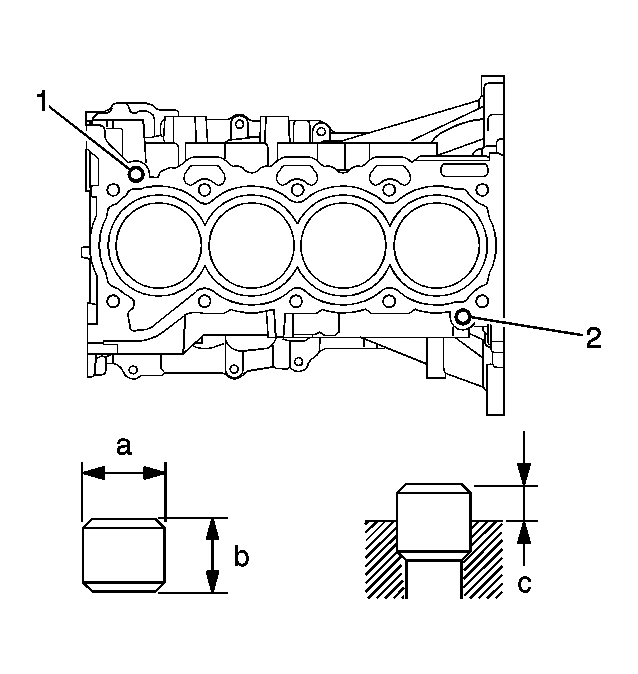

  8. Fig 3: Identifying Ring Pins
    GM2017307Courtesy of GENERAL MOTORS CORP.
    NOTE: It is not necessary to remove the ring pins unless they are being replaced.
  9. Remove the ring pins.
  10. Using a plastic hammer, tap in the ring pins.

    Specification:  Standard protrusion: 7.5-8.5 mm (0.295-0.335 in)

  11. NOTE: If any of the stud bolts is deformed or the threads are damaged, replace it.
  12. Remove the stud bolts.

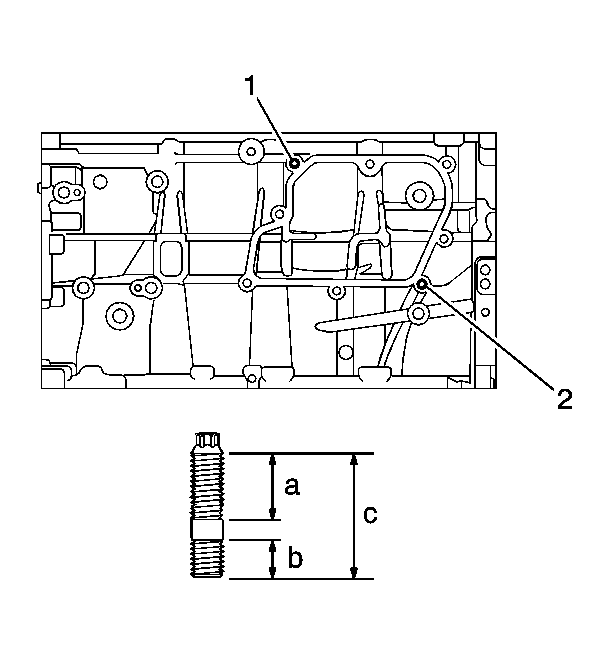

  13. Fig 4: Identifying Straight Pins
    GM2017308Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  14. Using a TORX socket E6, install the stud bolts and tighten to 5.0 N.m (44 lb in).
  15. NOTE: It is not necessary to remove the straight pins unless they are being replaced.
  16. Remove the straight pins.

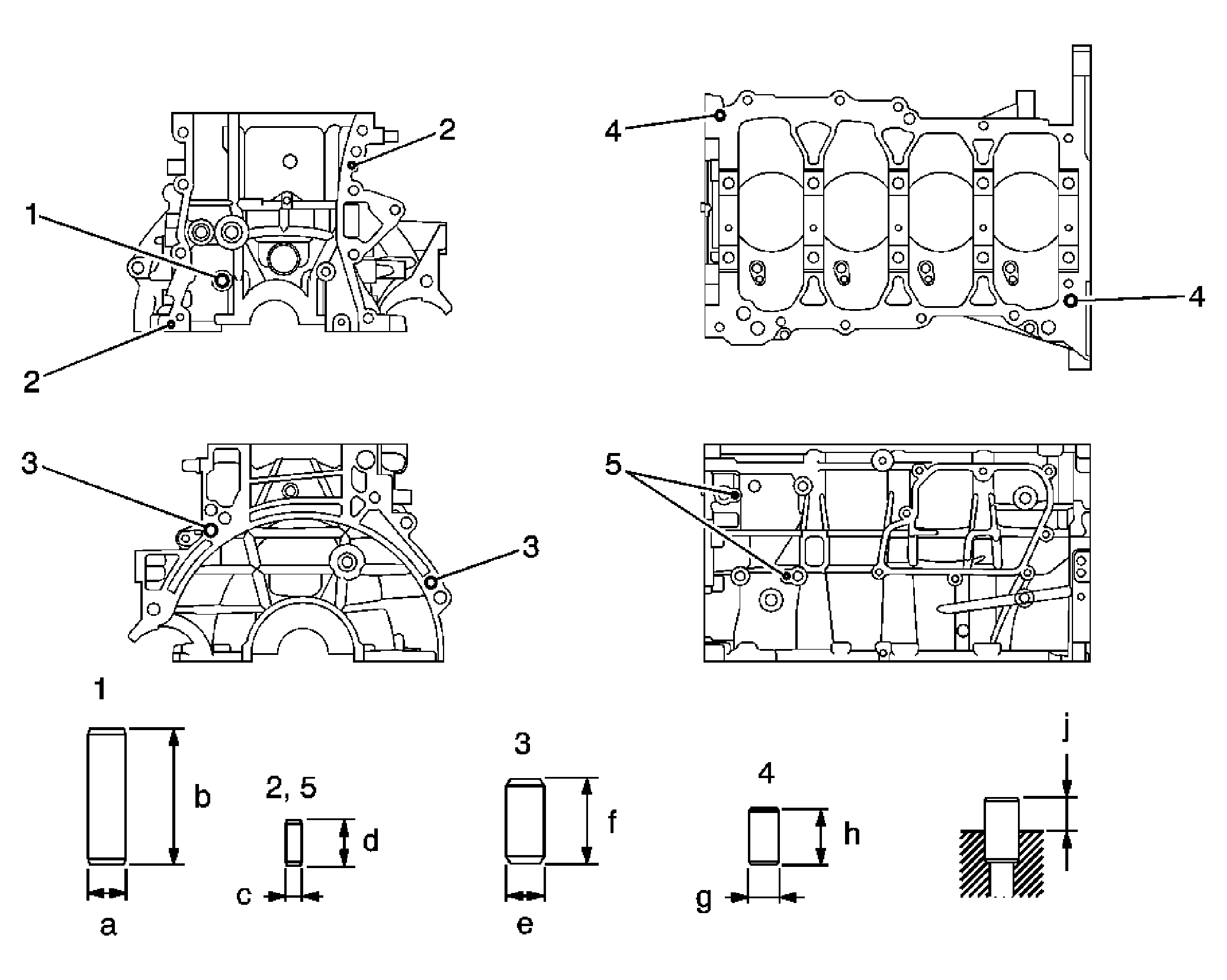

  17. Fig 5: Identifying Straight Pin Installation Locations
    GM2017309Courtesy of GENERAL MOTORS CORP.
  18. Using a plastic hammer, tap in the straight pins.

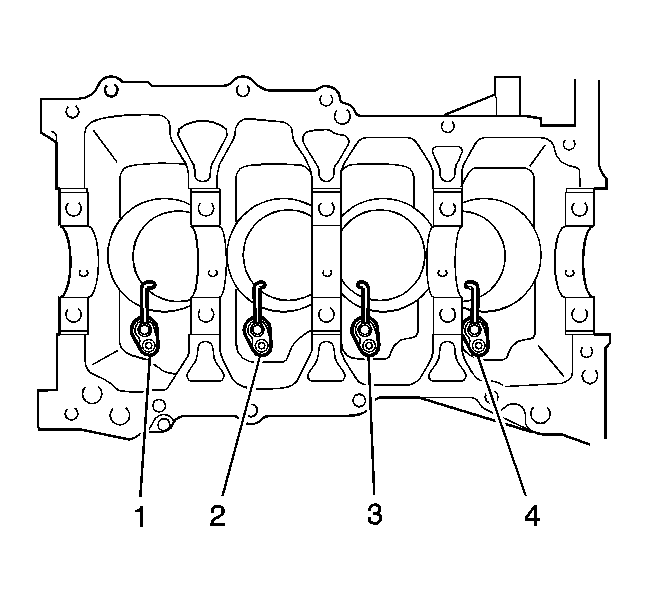

  19. Fig 6: Identifying Oil Nozzles
    GM2017270Courtesy of GENERAL MOTORS CORP.
  20. Using a 5 mm socket hexagon wrench, install the oil nozzles with the bolts and tighten to 10 N.m (7 lb ft).
