Cylinder Head Disassemble

WARNING: This page is about a different variant/trim than selected.

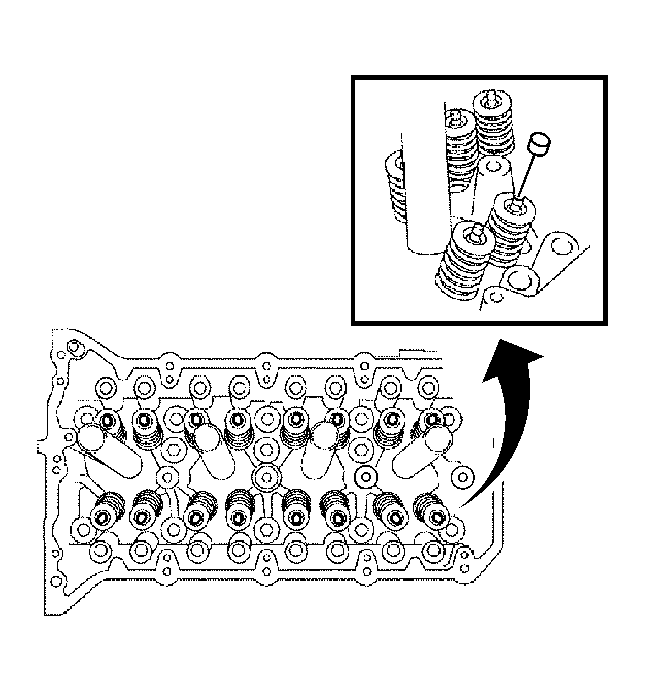

    Fig 1: Identifying Valve Stem Caps
    GM2017177Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Arrange the removed parts in the correct order.
  1. Remove the valve stem caps from the cylinder heads.
    2. Fig 2: View Of Compressing Valve Spring & Removing/Installing Valve Retainer Locks
    GM2017178Courtesy of GENERAL MOTORS CORP.
  2. Remove the intake valve.
    3. IMPORTANT: Arrange the removed parts in the correct order.
  3. Using SST and wooden blocks, compress and remove the valve retainer locks.
    4. IMPORTANT: Arrange the removed parts in the correct order.
  4. Remove the retainer, valve spring and intake valve.
    5. Fig 3: Identifying Valve Springs & Components
    GM2017179Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Arrange the removed parts in the correct order.
  5. Using SST and wooden blocks, compress and remove the exhaust valve retainer locks.
    6. IMPORTANT: Arrange the removed parts in the correct order.
  6. Remove the retainer, valve spring and exhaust valve.

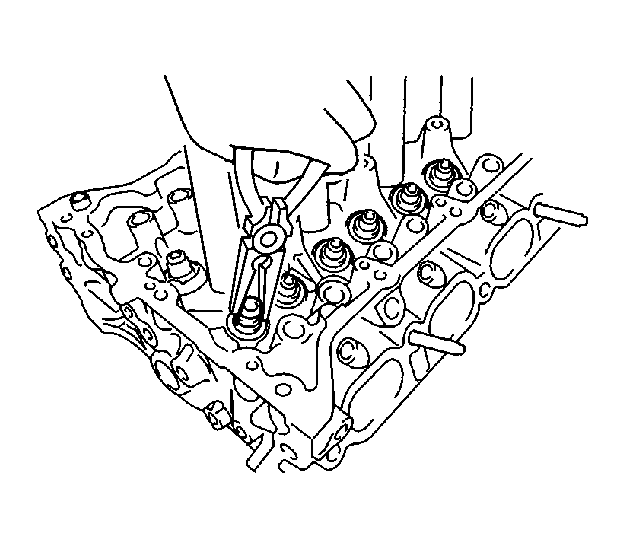

    7. Fig 4: View Of Valve Stem Oil Seal Removal
    GM2017180Courtesy of GENERAL MOTORS CORP.
  7. Using needle-nose pliers, remove the valve stem oil seals.

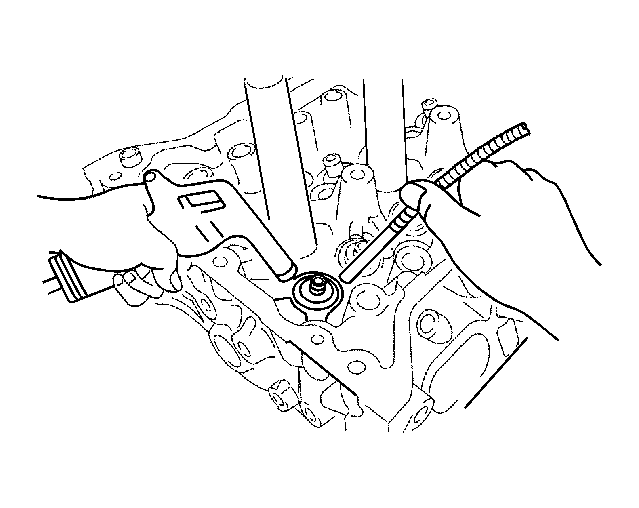

    8. Fig 5: View Of Valve Spring Seat Removal
    GM2017181Courtesy of GENERAL MOTORS CORP.
  8. Using compressed air and a magnetic pick-up tool, remove the valve spring seats by blowing air onto them.
    9. Fig 6: View Of Straight Screw Plugs & Gaskets
    GM2017182Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: If water leaks from any of the straight screw plugs or if the plug is corroded, replace it.
  9. Using a 10 mm straight hexagon wrench, remove the 3 No. 2 STRAIGHT screw plugs and 3 gaskets.
