Camshaft Cover Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the cylinder head cover sub-assembly.
  2. Fig 1: View Of Cylinder Head Cover Gasket
    GM2017032Courtesy of GENERAL MOTORS CORP.
  3. Install a new gasket to the cylinder head cover.

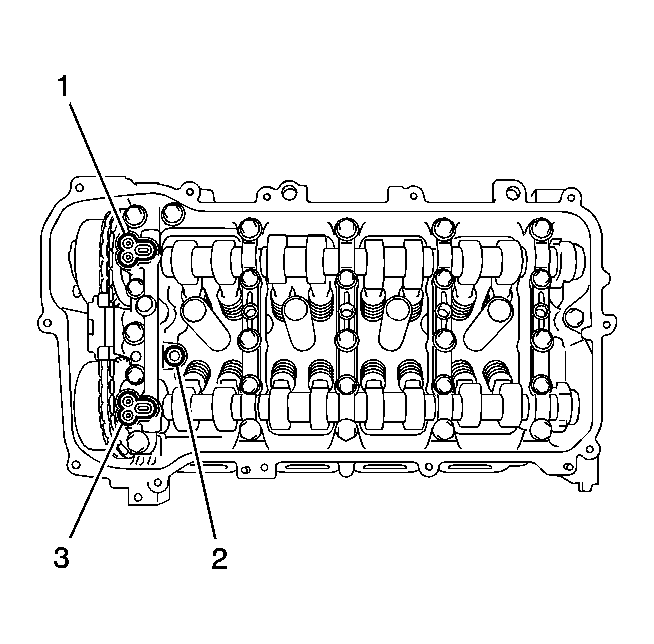

  4. Fig 2: Identifying Camshaft Bearing Cap Gaskets
    GM2017028Courtesy of GENERAL MOTORS CORP.
  5. Install 3 new gaskets to the No. 1 camshaft bearing cap.

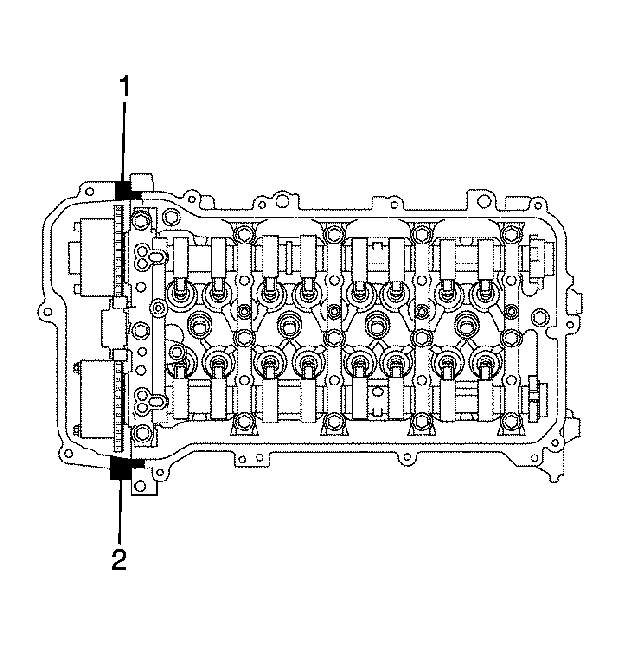

  6. Fig 3: Identifying Cylinder Head Cover Sealant Locations
    GM2017164Courtesy of GENERAL MOTORS CORP.
    NOTE:
    • Remove any oil from the contact surfaces.
    • Install the cylinder head cover within 3 minutes and tighten the bolts within 15 minutes after applying seal packing.
    • Do not start the engine for at least 2 hours after the installation.
  7. Apply Three Bond 1207B or equivalent seal packing.
  8. Fig 4: Identifying Cylinder Head Cover Bolt Loosening/Tightening Sequence
    GM2017027Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  9. Install the cylinder head cover with a new seal washer and the 13 bolts and tighten to 10 N.m (7 lb ft).
  10. Fig 5: View Of Camshaft Timing Oil Control Valve Assembly
    GM2017165Courtesy of GENERAL MOTORS CORP.
  11. Install the camshaft timing oil control valve assembly.
  12. Apply a light coat of engine oil to a new O-ring, then install it onto the camshaft timing oil control valve.
  13. Fig 6: View Of Camshaft Timing Oil Control Valves, Bracket & Bolts
    GM2017168Courtesy of GENERAL MOTORS CORP.
  14. Install the 2 camshaft timing oil control valves and bracket with the 2 bolts and tighten to 10 N.m (7 lb ft).
  15. Fig 7: Identifying Camshaft Position Sensor & O-Ring
    GM2016538Courtesy of GENERAL MOTORS CORP.
  16. Install the camshaft position sensor.
  17. Apply a light coat of engine oil to the O-ring of the sensor.
  18. Fig 8: Identifying Camshaft Position Sensors
    GM2017024Courtesy of GENERAL MOTORS CORP.
  19. Install the 2 sensors with the 2 bolts and tighten to 10 N.m (7 lb ft).
  20. Fig 9: View Of Spark Plug Removal/Installation
    GM2017021Courtesy of GENERAL MOTORS CORP.
  21. Using a 14 mm spark plug wrench, install the 4 spark plugs and tighten to 20 N.m (15 lb ft).
  22. Fig 10: View Of Engine Cover Joints
    GM2017015Courtesy of GENERAL MOTORS CORP.
  23. Install the 2 engine cover joints and tighten to 10 N.m (7 lb ft).
  24. Fig 11: View Of Oil Filler Cap
    GM2017012Courtesy of GENERAL MOTORS CORP.
  25. Install the oil filler cap gasket.
  26. Fig 12: Identifying Oil Filler Cap
    GM2017009Courtesy of GENERAL MOTORS CORP.
  27. Install the oil filler cap sub-assembly.

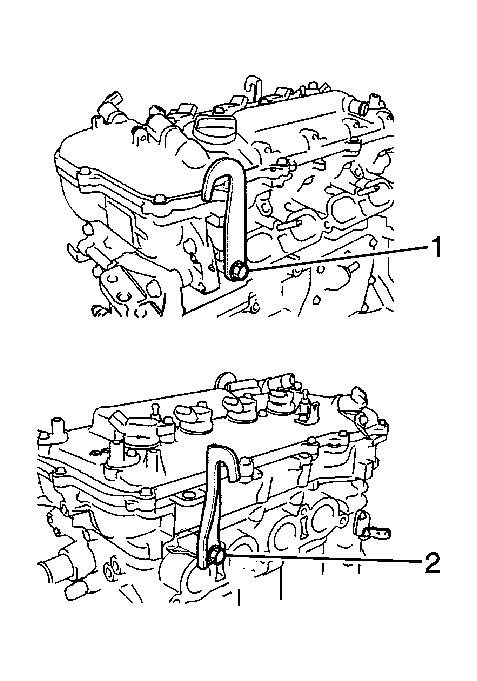

  28. Fig 13: View Of Engine Hangers
    GM2017170Courtesy of GENERAL MOTORS CORP.
  29. Install the 2 engine hangers with the 2 bolts and tighten to 43 N.m (32 lb ft).
