Disassembled Views

WARNING: This page is about a different variant/trim than selected.

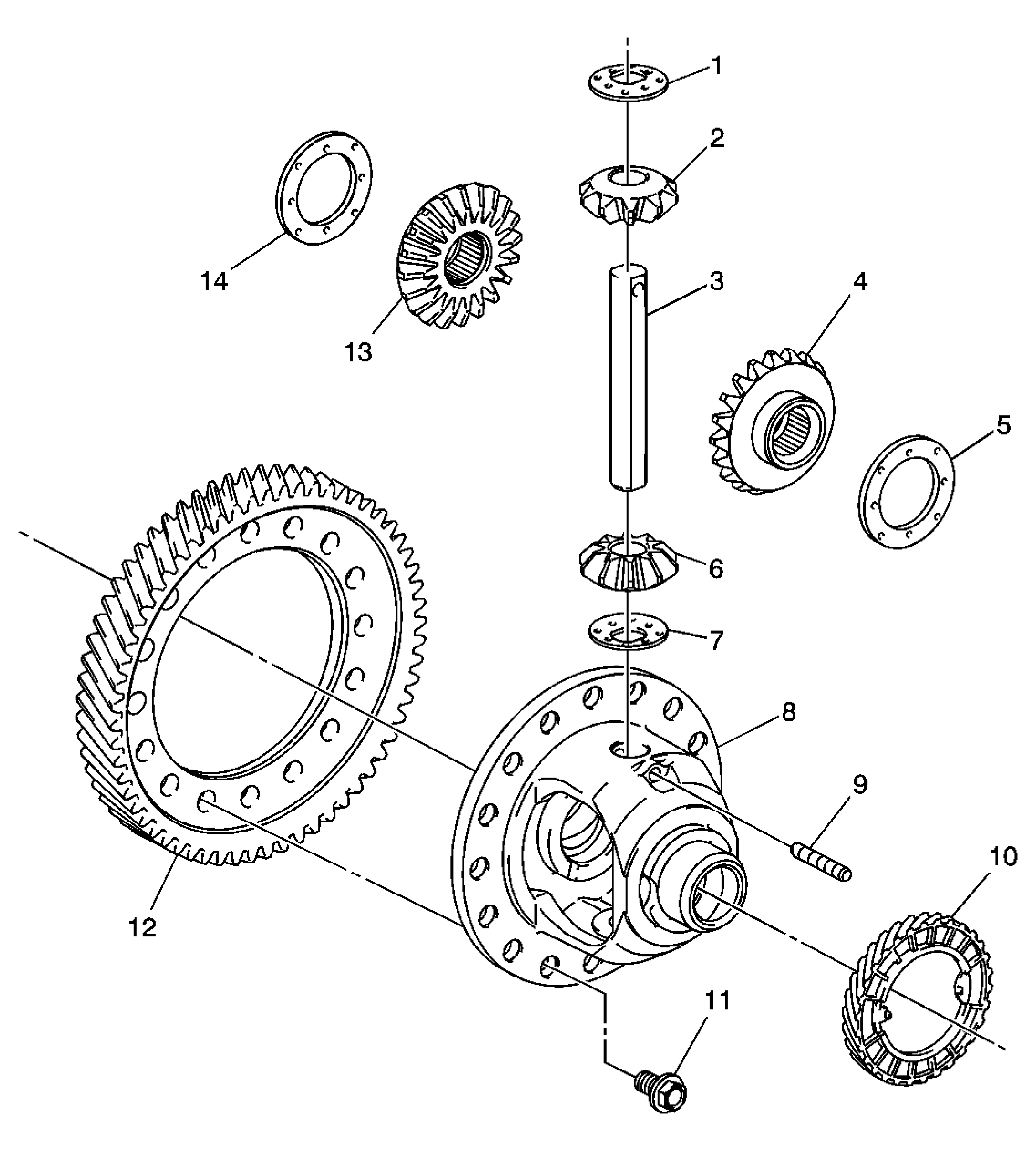

Fig 1: Differential Case

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Differential Pinion Thrust Washer
2	Front Differential Pinion
3	No. 1 Front Differential Pinion Shaft
4	Front Differential Side Gear
5	No. 1 Front Differential Side Gear Thrust Washer
6	Front Differential Pinion
7	Front Differential Pinion Thrust Washer
8	Front Differential Case
9	Front Differential Pinion Shaft Straight Pin
10	Speedometer Drive Gear
11	Bolt
12	Front Differential Ring Gear
13	Front Differential Side Gear
14	No. 1 Front Differential Side Gear Thrust Washer

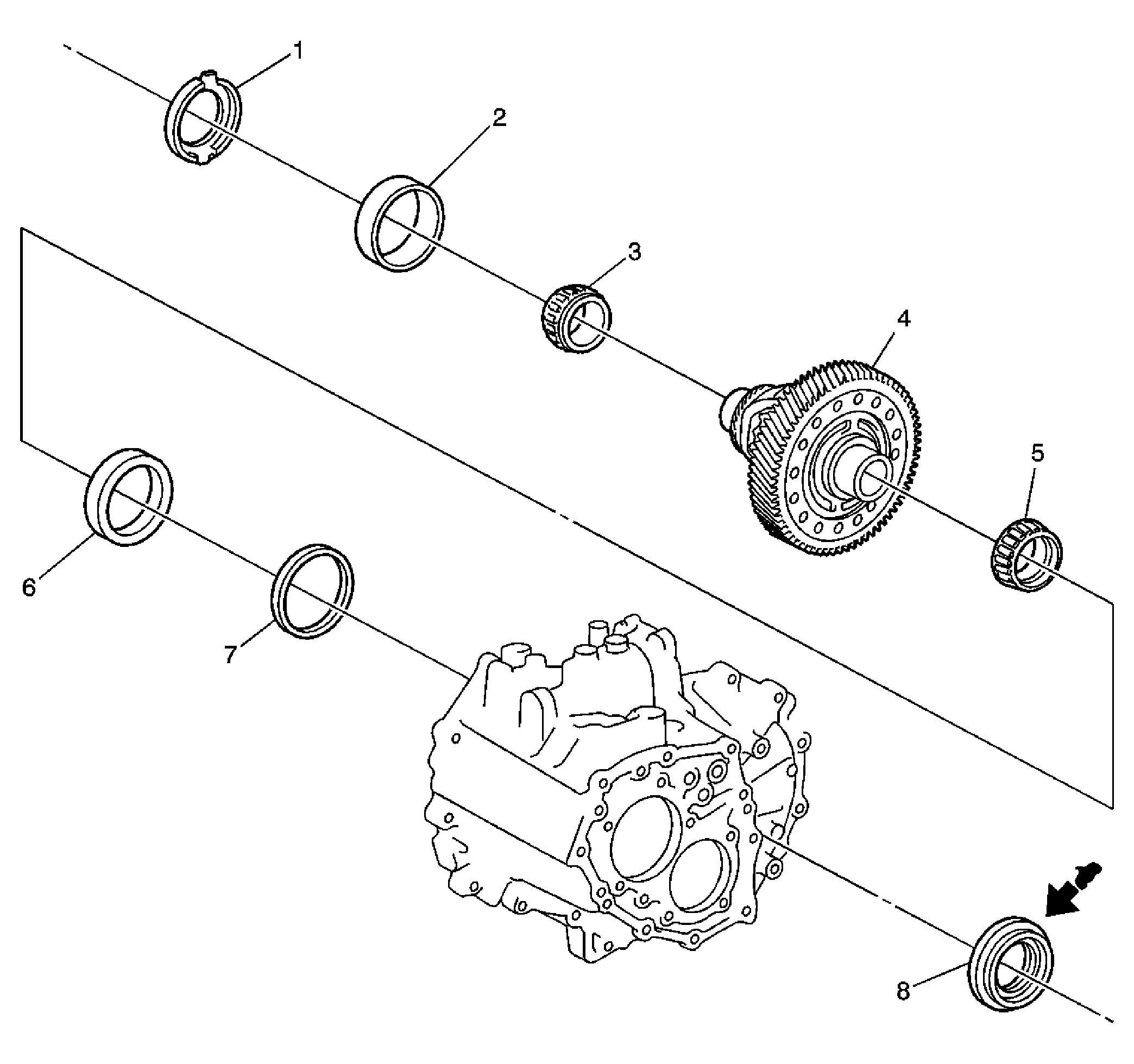

Fig 2: Differential Case Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Differential Oil Baffle
2	Outer Race
3	Front Differential Case Front Tapered Roller Bearing
4	Differential Case Assembly
5	Front Differential Case Rear Tapered Roller Bearing
6	Outer Race
7	Front Differential Case Rear Shim
8	Transmission Case Oil Seal

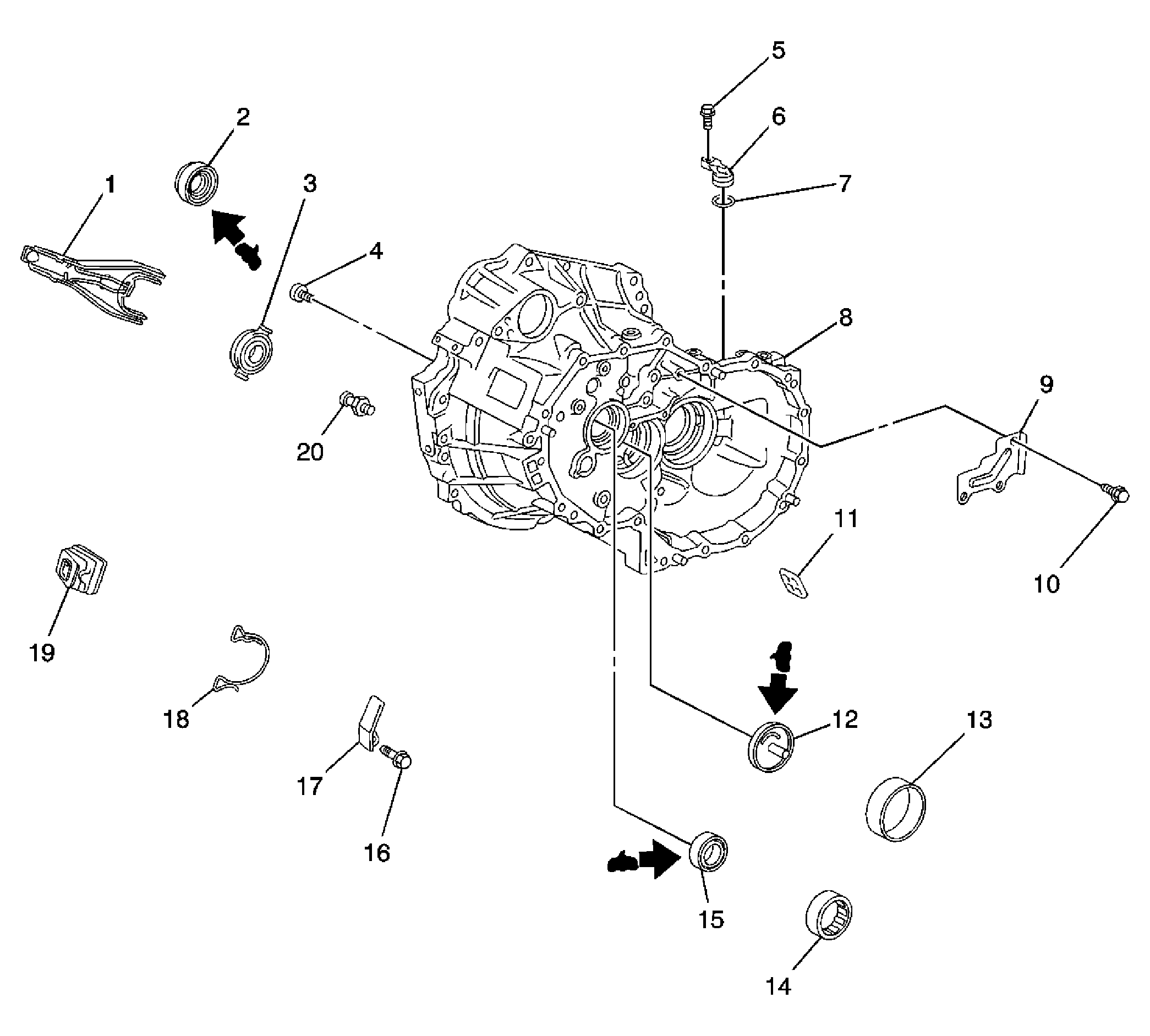

Fig 3: External Transmission Components 1 of 3

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Clutch Release Fork Sub-Assembly
2	Transaxle Case Oil Seal
3	Clutch Release Bearing Assembly
4	Bolt
5	Bolt
6	Speedometer Driven Hole Cover Sub-Assembly
7	O-Ring
8	Manual Transaxle Case
9	Manual Transaxle Case Receiver
10	Bolt
11	Transmission Magnet
12	Output Shaft Cover
13	Output Shaft Front Bearing
14	Input Shaft Front Bearing
15	Front Transaxle Case Cover Oil Seal
16	Bolt
17	No. 2 Clutch Tube Bracket
18	Clutch Release Bearing Hub Clip
19	Clutch Release Fork Boot

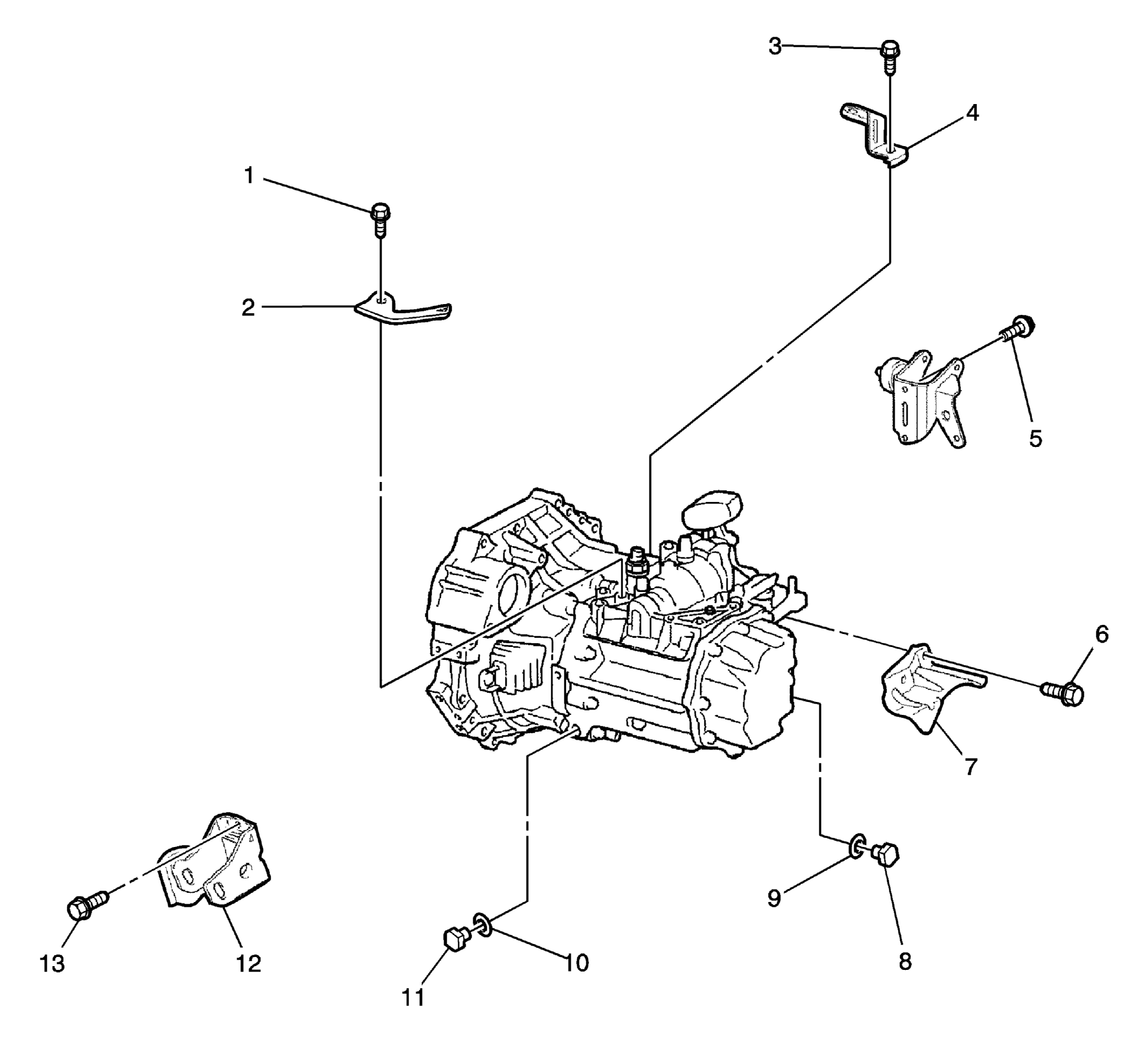

Fig 4: External Transmission Components 2 of 3

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Bolt
2	Wire Harness Clamp Bracket
3	Bolt
4	Wire Harness Clamp Bracket
5	Bolt
6	Bolt
7	Manual Transmission Case Protector
8	Drain Plug
9	Gasket
10	Gasket
11	Filler Plug
12	Front Engine Mounting Bracket
13	Bolt

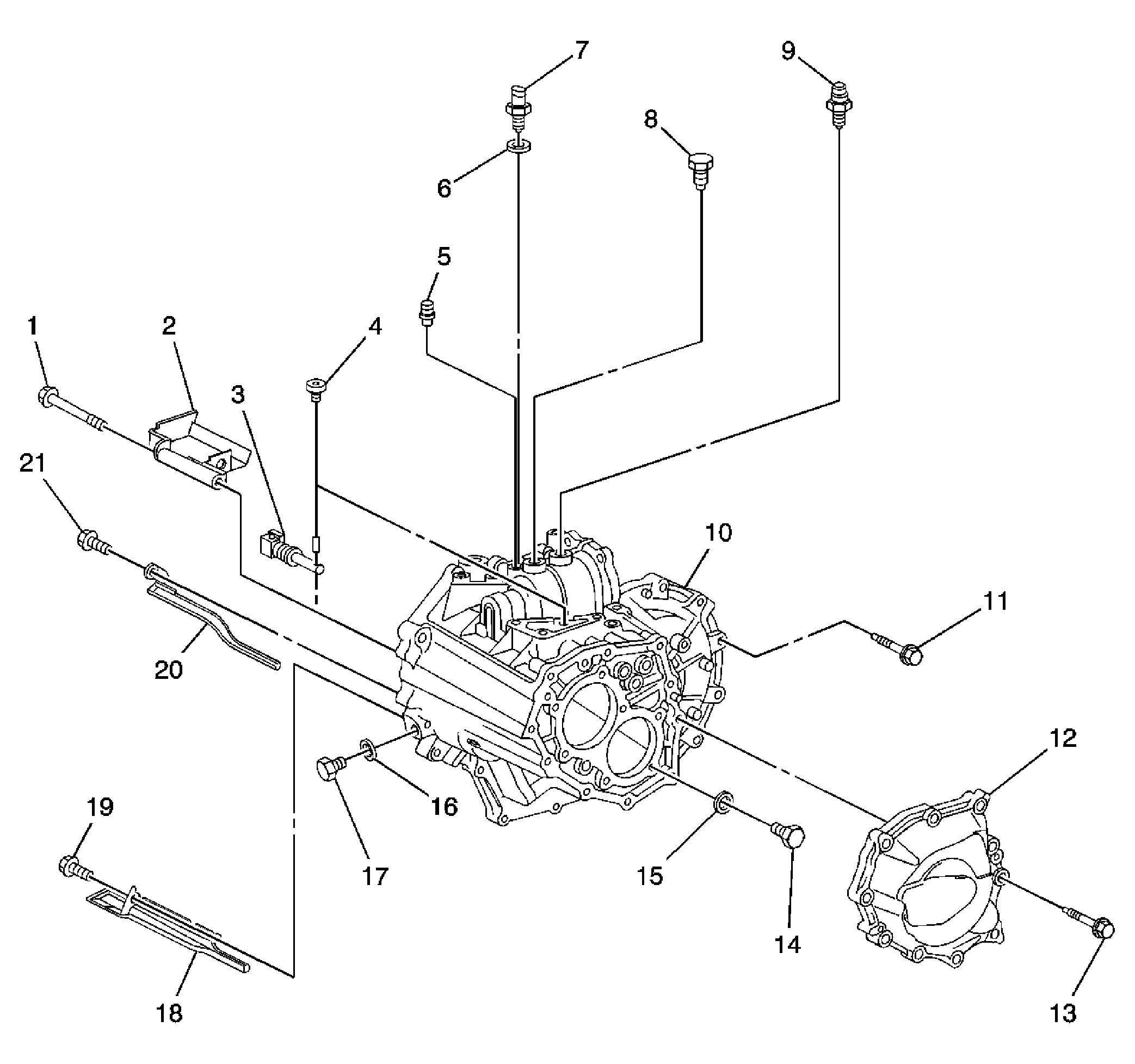

Fig 5: External Transmission Components 3 of 3

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transmission Oil Baffle Bolt
2	Transmission Oil Baffle
3	Reverse Restrict Pin Assembly
4	Reverse Restrict Pin Plug
5	Manual Transmission Breather Plug
6	Gasket
7	Backup Light Switch Assembly
8	Shift Gate Pin
9	No. 1 Lock Ball Assembly
10	Manual Transmission Case
11	Transmission Case Bolt
12	Manual Transmission Case Cover Sub-Assembly
13	Transmission Case Cover Sub-Assembly Bolt
14	Drain Plug Sub-Assembly
15	Gasket
16	Gasket
17	Manual Transmission Filler Plug
18	No. 1 Oil Receiver Pipe
19	Bolt
20	No. 2 Oil Receiver Pipe
21	Bolt

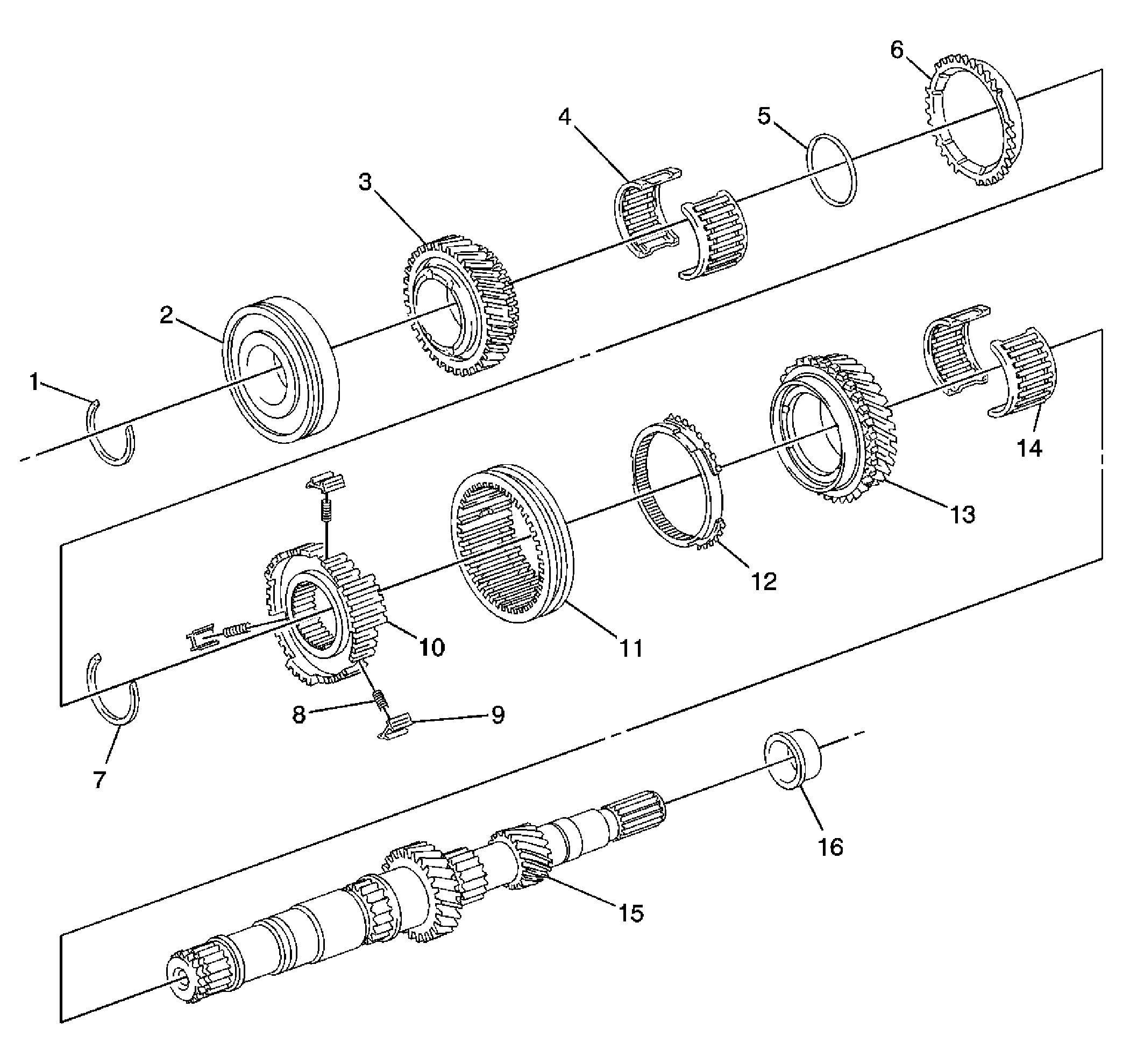

Fig 6: Input Shaft

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Input Shaft Rear Bearing Shaft Snap Ring
2	Input Shaft Rear Radial Ball Bearing
3	4th Gear
4	4th Gear Needle Roller Bearing
5	4th Gear Bearing Spacer
6	No. 4 Synchronizer Ring
7	No. 2 Clutch Hub Setting Shaft Snap Ring
8	No. 2 Synchromesh Shifting Key Spring
9	No. 2 Synchromesh Shifting Key
10	No. 2 Transmission Clutch Hub
11	No. 2 Transmission Hub Sleeve
12	No. 3 Synchronizer Ring
13	3rd Gear
14	3rd Gear Needle Roller Bearing
15	Input Shaft
16	Input Shaft Front Bearing (Inner Race)

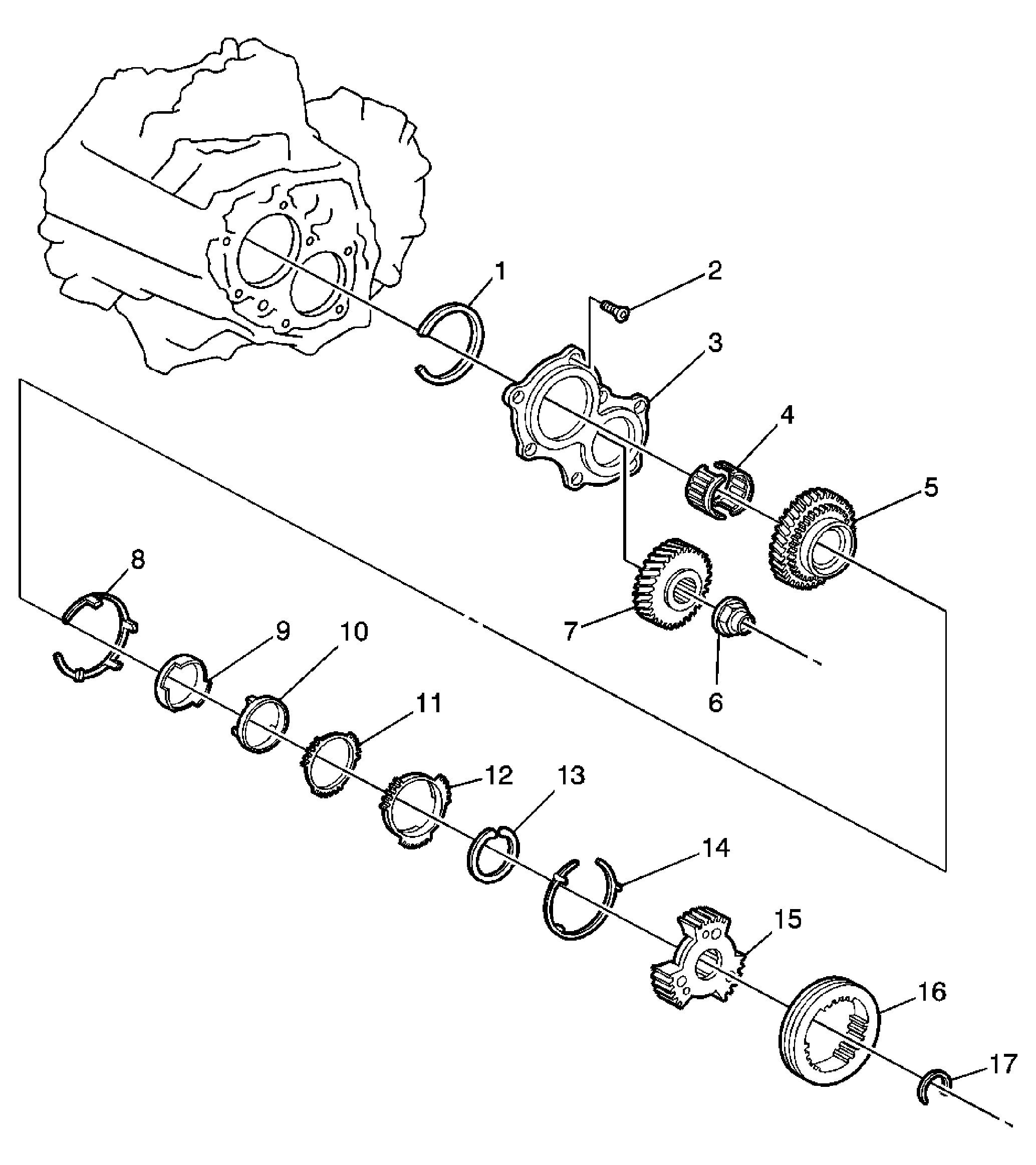

Fig 7: Internal Transmission Components 1 of 3

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Input Shaft Rear Bearing Shaft Snap Ring
2	Bolt
3	Rear Bearing Retainer
4	5th Gear Needle Roller Bearing
5	5th Gear
6	Manual Transmission Output Shaft Rear Set Nut
7	5th Driven Gear
8	No. 3 Synchromesh Shifting Key Spring
9	No. 5 Synchronizer Ring Inner
10	No. 5 Synchronizer Ring Middle
11	No. 5 Synchronizer Ring Outer
12	Synchronizer Pull Ring
13	Synchronizer Pull Ring Snap Ring
14	No. 3 Synchromesh Shifting Key Spring
15	No. 3 Transmission Clutch Hub
16	No. 3 Transmission Hub Sleeve
17	Transmission Clutch Hub No. 3 Shaft Snap Ring

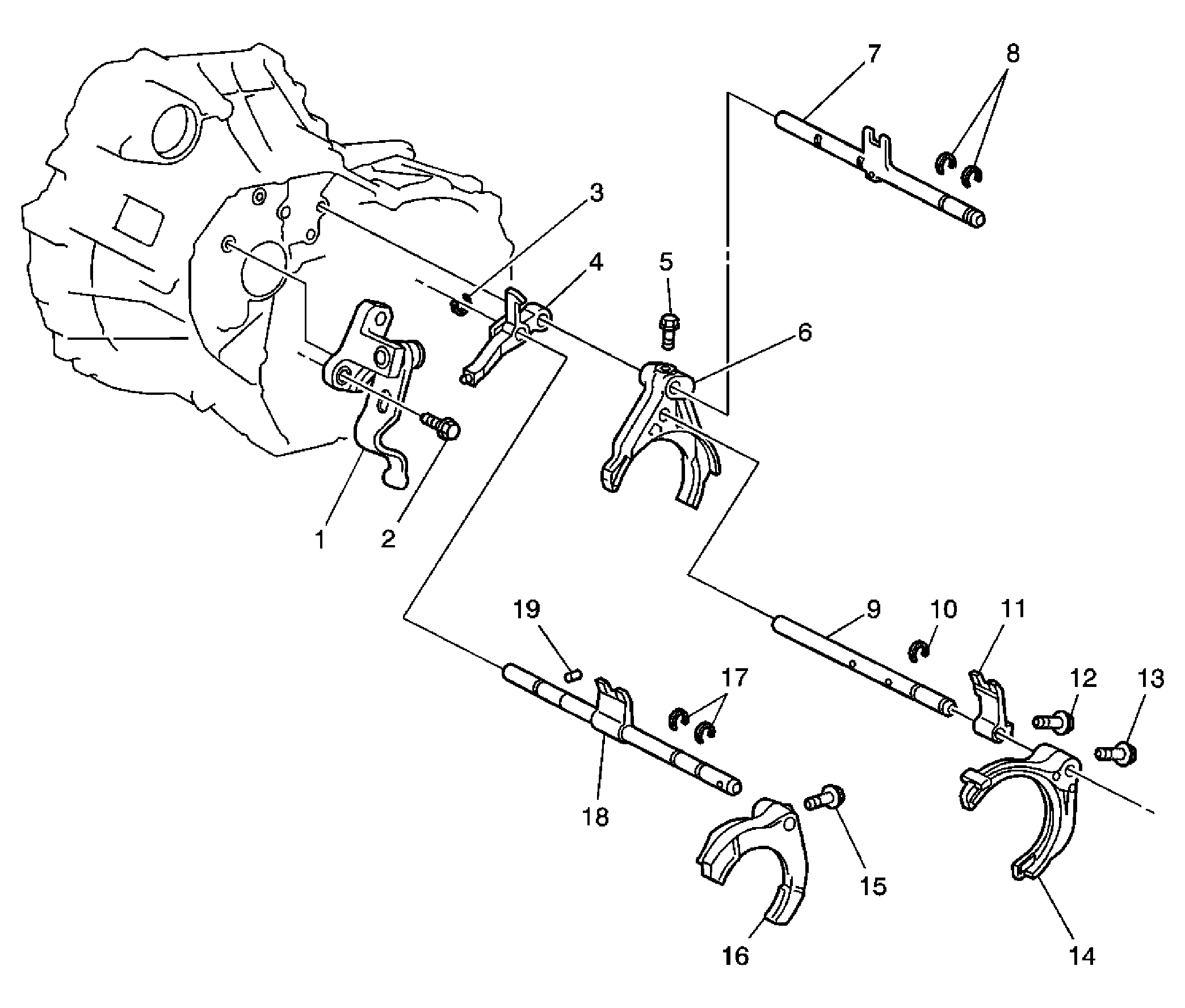

Fig 8: Internal Transmission Components 2 of 3

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Reverse Shift Arm Bracket Assembly
2	Bolt
3	Shift Form Shaft Snap Ring
4	Reverse Shift Fork
5	Shift Fork Set Bolt
6	No. 1 Gear Shift Fork
7	No. 1 Gear Shift Fork Shaft
8	Shift Fork Shaft Snap Ring
9	No. 2 Gear Shift Fork Shaft
10	Shift Fork Shaft Snap Ring
11	No. 1 Gear Shift Head
12	Shift Head Set Bolt
13	Shift Fork Set Bolt
14	No. 2 Gear Shift Fork
15	Shift Fork Set Bolt
16	No. 3 Gear Shift Fork
17	Shift Fork Shaft Snap Ring
18	No. 3 Gear Shift Fork Shaft
19	Reverse Shift Fork Roller

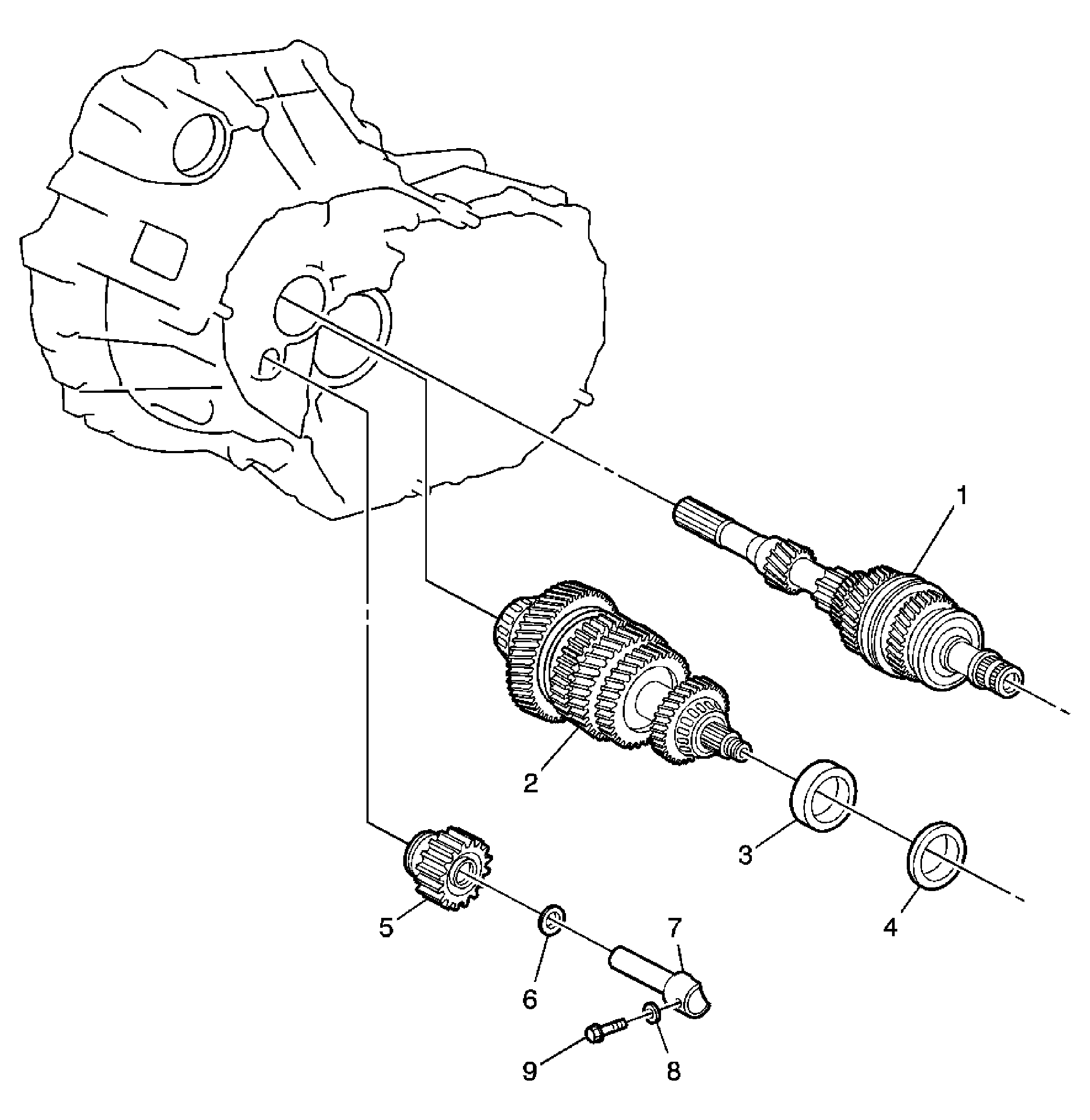

Fig 9: Internal Transmission Components 3 of 3

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Input Shaft Assembly
2	Output Shaft Assembly
3	Output Shaft Rear Bearing (Outer Race)
4	Output Shaft Rear Bearing Shim
5	Reverse Idler Gear Sub-Assembly
6	Reverse Idler Thrust Washer
7	Reverse Idler Gear Shaft
8	Reverse Idler Gear Shaft Gasket
9	Reverse Idler Gear Shaft Bolt

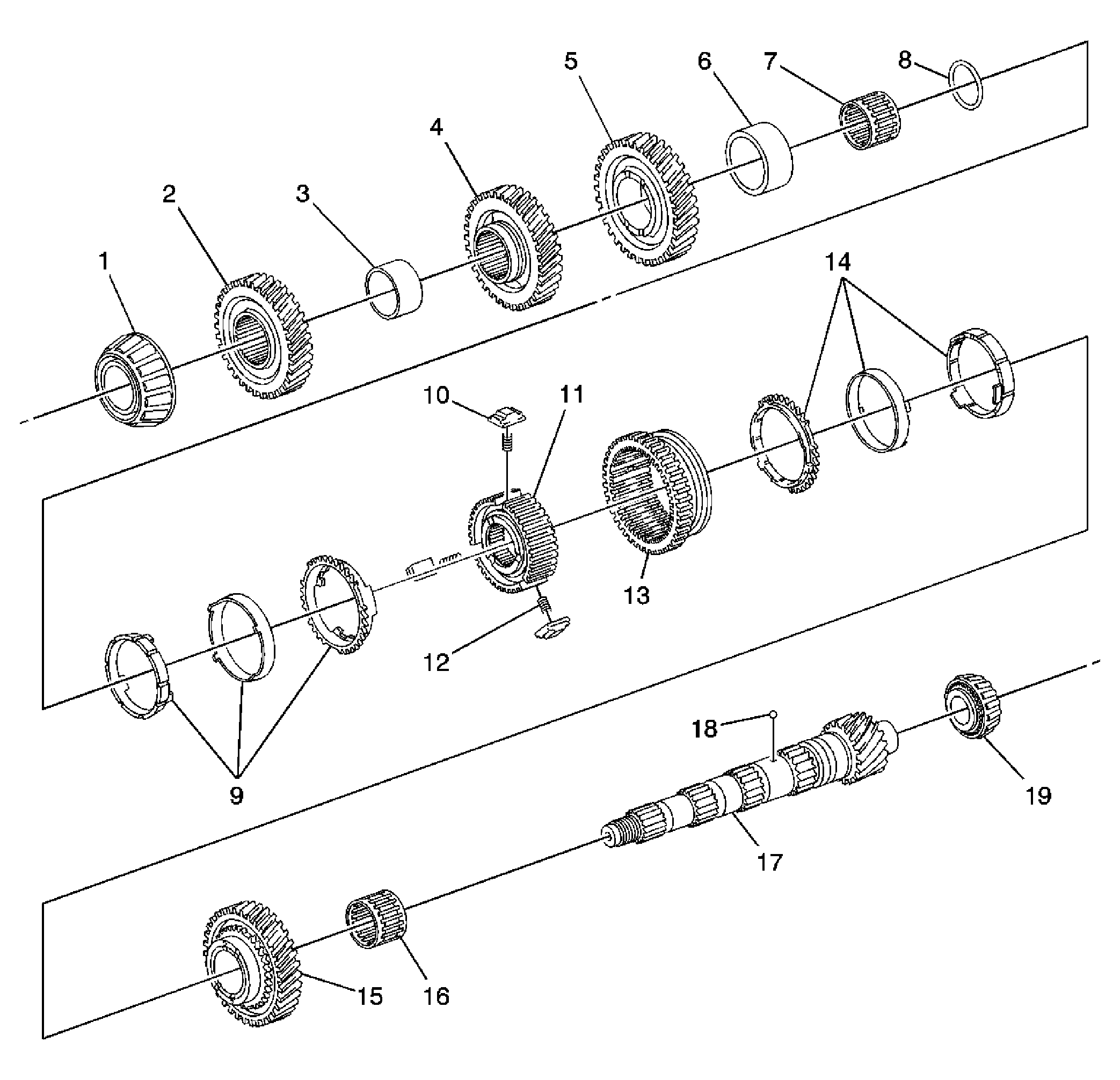

Fig 10: Output Shaft

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Output Shaft Rear Bearing (Inner Race)
2	4th Driven Gear
3	Output Gear Spacer
4	3rd Driven Gear
5	2nd Gear
6	2nd Gear Bearing
7	2nd Gear Needle Roller Bearing
8	2nd Gear Bearing Spacer
9	No. 2 Synchronizer Ring Set
10	No. 1 Synchromesh Shifting Key
11	No. 1 Transmission Clutch Hub
12	No. 1 Synchromesh Shifting Key Spring
13	Reverse Gear
14	No. 1 Synchronizer Ring Set
15	1st Gear
16	1st Gear Needle Roller Bearing
17	Output Shaft
18	2nd Gear Bushing Ball
19	Output Shaft Front Bearing

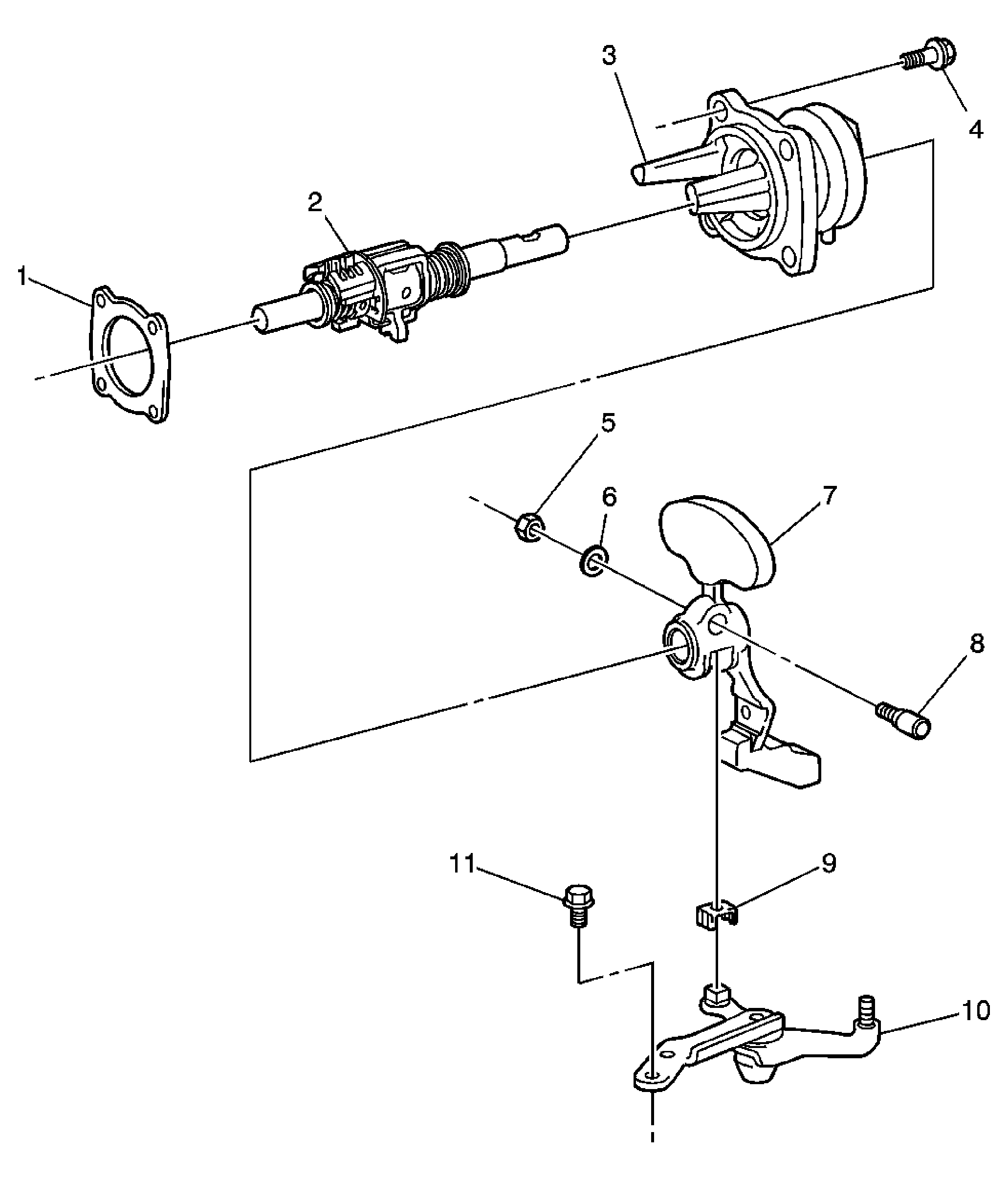

Fig 11: Shift and Select Lever Shaft Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Gasket
2	Shift and Select Lever Shaft Assembly
3	Control Shaft Cover
4	Bolt
5	Nut
6	Spring Washer
7	Control Shift Lever
8	Shift Outer Lever Lock Pin
9	Shift and Select Lever Bushing
10	Selecting Bellcrank Assembly
11	Bolt
