Section 4 (Manual Transmission - MVC 5 Speed)
>>
Schematic and Routing Diagrams
>>
Manual Transmission Schematics
Manual Transmission Schematics
WARNING:
This page is about a different variant/trim than selected.

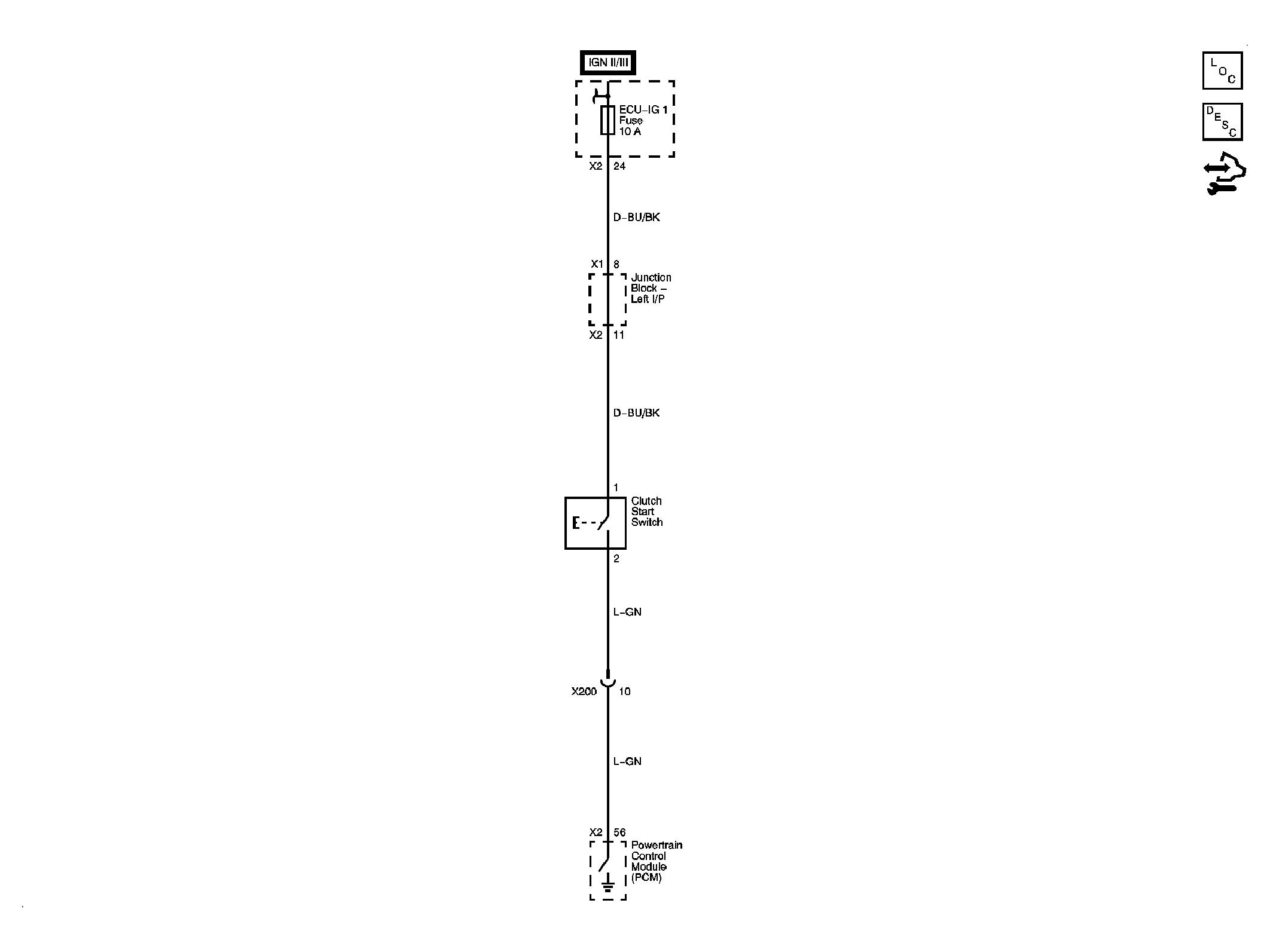

Fig 1: Manual Transmission Schematic
Courtesy of GENERAL MOTORS CORP.
