Installation Procedure

WARNING: This page is about a different variant/trim than selected.

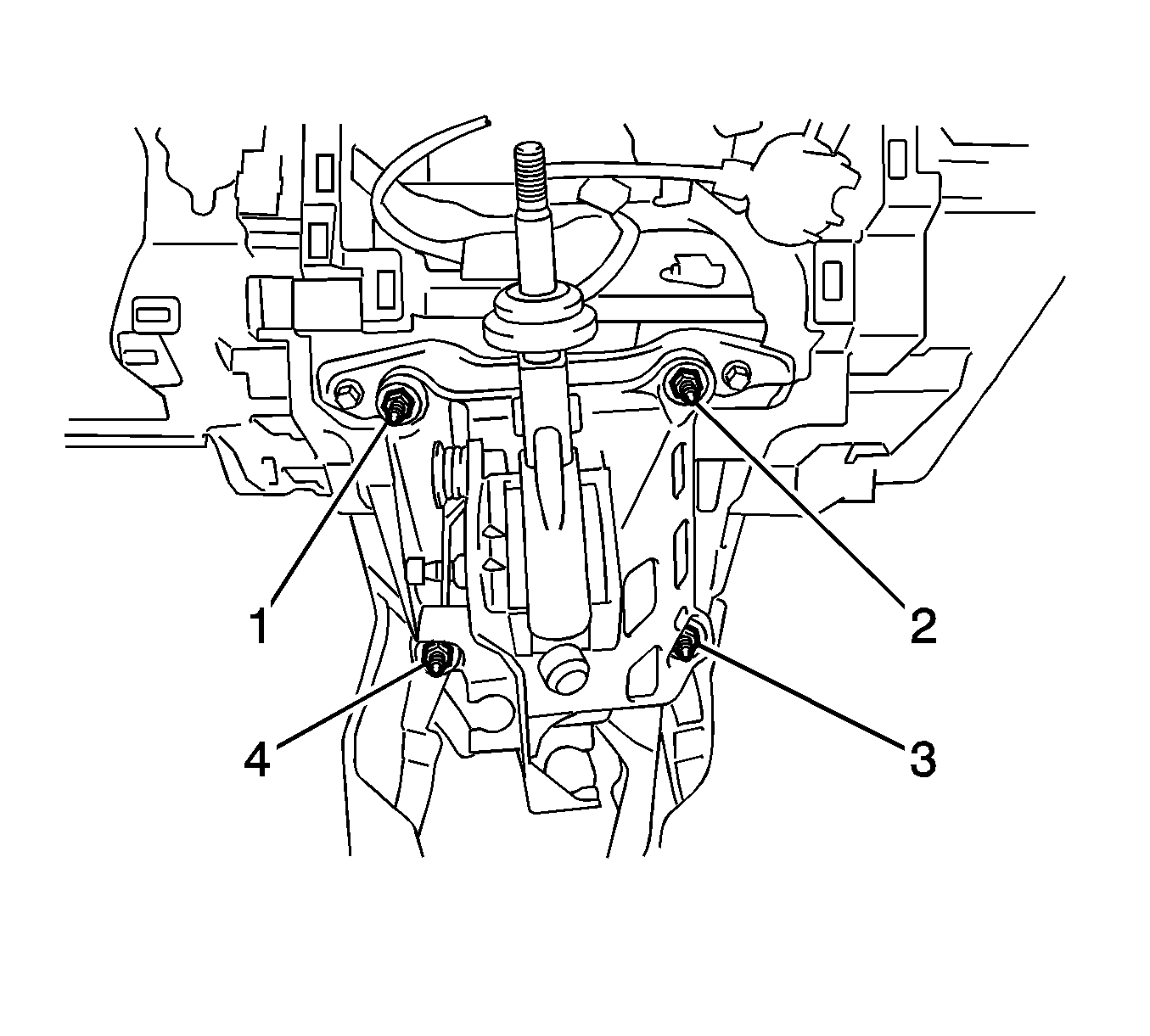

Fig 1: Identifying Shift Lever Assembly Bolts

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution

Install the shift lever assembly with the 4 bolts (1) and tighten to 12 N.m (9 lb ft).

Fig 2: Rotating Transmission Control Cable Nut While Holding Nut In Position

Courtesy of GENERAL MOTORS CORP.

Rotate the transmission control cable nut (1) counterclockwise approximately 180 degrees, while holding the nut in that position, push in the stopper until it makes 2 "click" sounds.

Fig 3: View Of Outer Part Of Transmission Control Cable & Shift Lever Retainer

Courtesy of GENERAL MOTORS CORP.

Install the outer part of the transmission control cable to the shift lever retainer, check that the position of the spring is the same as (2) shown in the illustration, and push in the stopper.
If the stopper cannot be pushed in, slightly rotate the nut (3) clockwise and then push in the stopper.

Fig 4: Pulling Lock Piece Out From Adjuster Case Using A Screwdriver

Courtesy of GENERAL MOTORS CORP.

Fig 5: Exploded View Of Adjuster Case Lock Piece

Courtesy of GENERAL MOTORS CORP.

NOTE:

NOTE: Securely press in the lock piece until the lock engages.

Press in and lock the lock piece to the adjuster case.
Adjust the transmission shift lever cable.
Install the front floor console assembly. Refer to Front Floor Console Replacement .
