Manual Transmission Shift Lever Cable Adjustment

WARNING: This page is about a different variant/trim than selected.

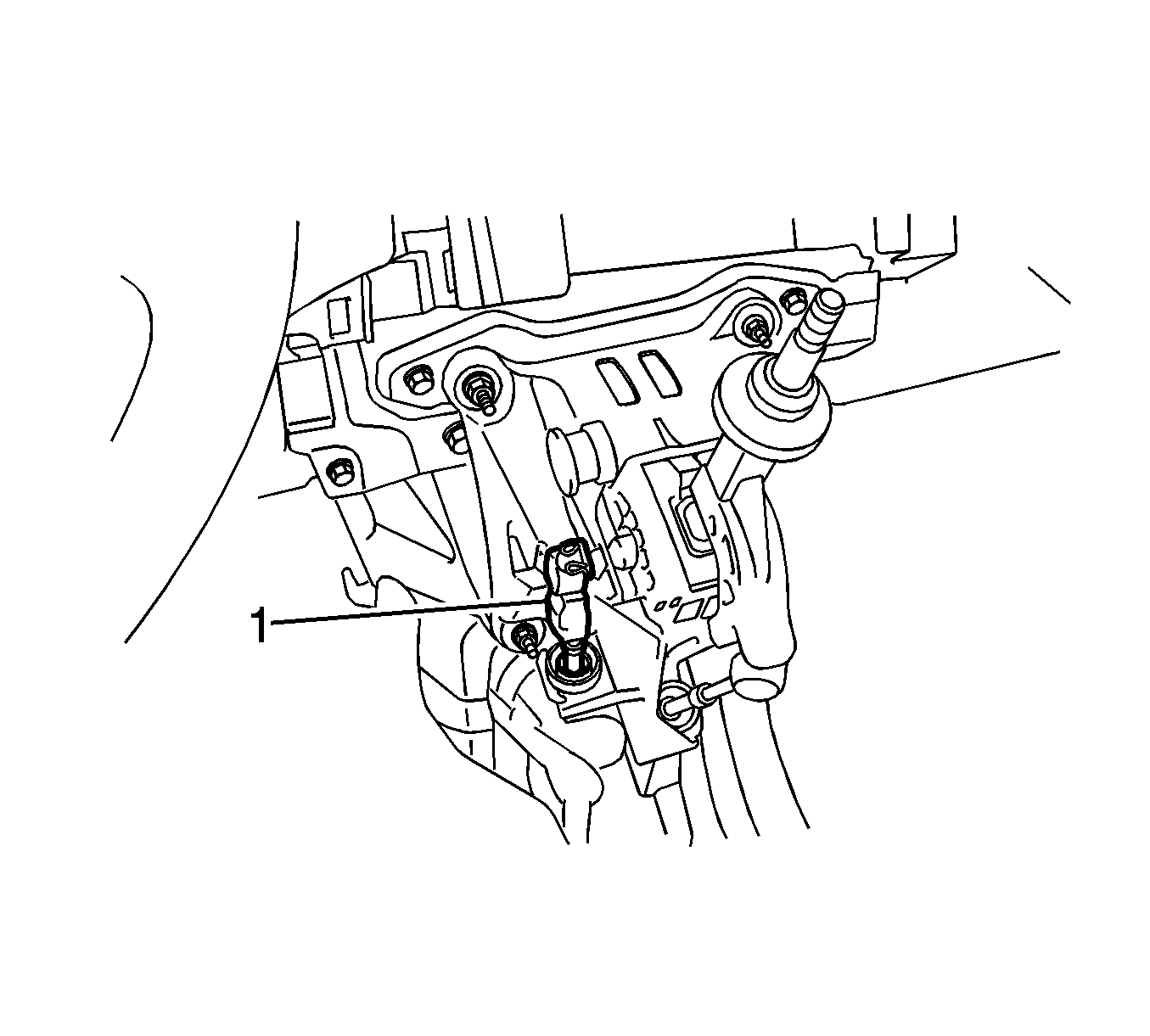

    Fig 1: Identifying Shift Lever Assembly Cable
    GM2010197Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the shift lever cable (1) from the shift lever assembly.
    2. Fig 2: Pulling Lock Piece Out From Adjuster Case Using A Screwdriver
    GM2010199Courtesy of GENERAL MOTORS CORP.
  2. Using a screwdriver, pull the lock piece (1) out from the adjuster case.
    3. Fig 3: Exploded View Of Adjuster Case Lock Piece
    GM2010200Courtesy of GENERAL MOTORS CORP.
    NOTE:
    • Ensure that the lock piece is protruding from the adjuster case.
    • Make sure to adjust the length at the neutral shift position.
  3. Install the shift lever cable to the shift lever assembly.
    4. NOTE: Securely press in the lock piece until the lock engages.
  4. Press in and lock the lock piece (1) to the adjuster case.
