Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Drain the manual transaxle oil.
  2. Remove the front drive shaft assembly. Refer to Front Wheel Drive Shaft Replacement - Left Side or Front Wheel Drive Shaft Replacement - Right Side .

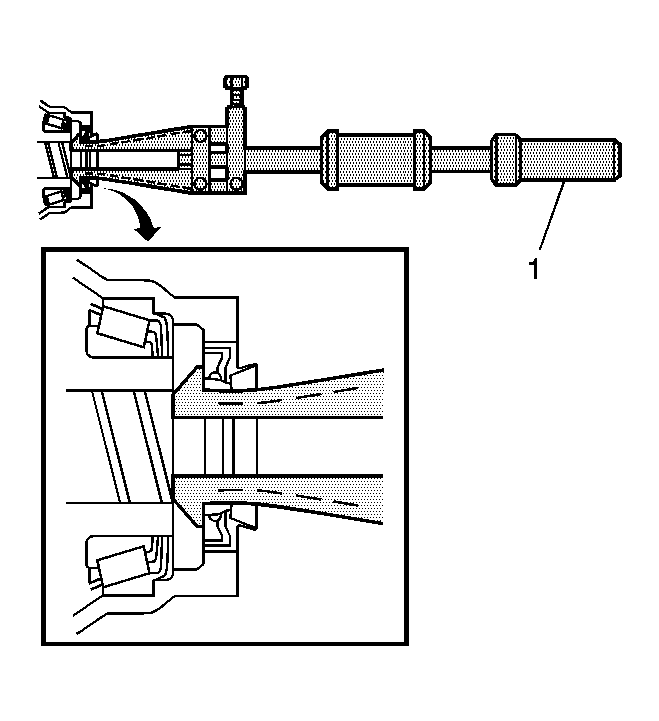

    3. Fig 1: Identifying Transaxle Case Oil Seal Puller
    GM2010226Courtesy of GENERAL MOTORS CORP.
  3. Using a suitable puller (1), remove the transaxle case oil seal.

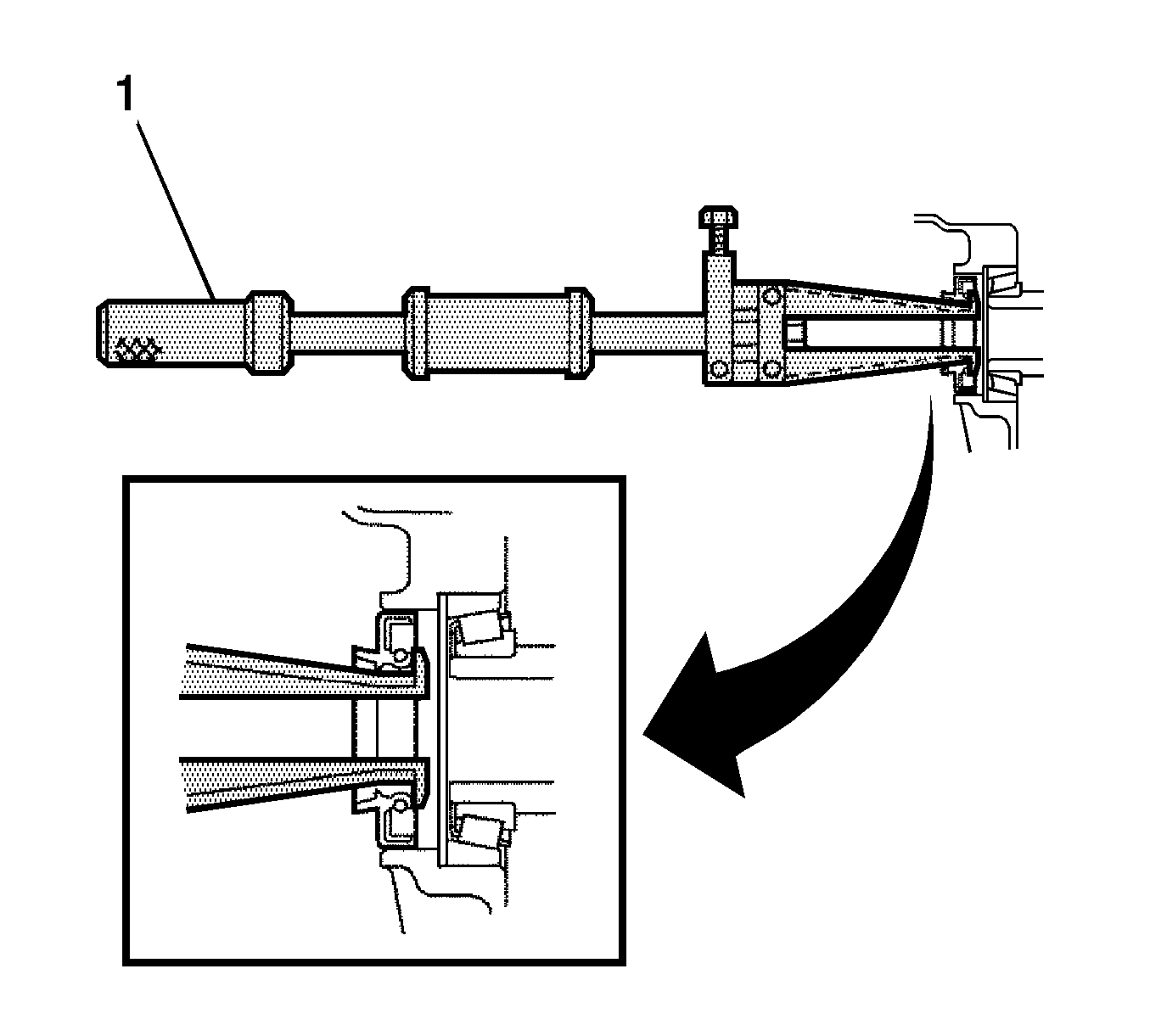

    4. Fig 2: Removing Transmission Case Oil Seal Using A Suitable Puller
    GM2010175Courtesy of GENERAL MOTORS CORP.
  4. Using a suitable puller (1), remove the transmission case oil seal.
