Installation Procedure

WARNING: This page is about a different variant/trim than selected.

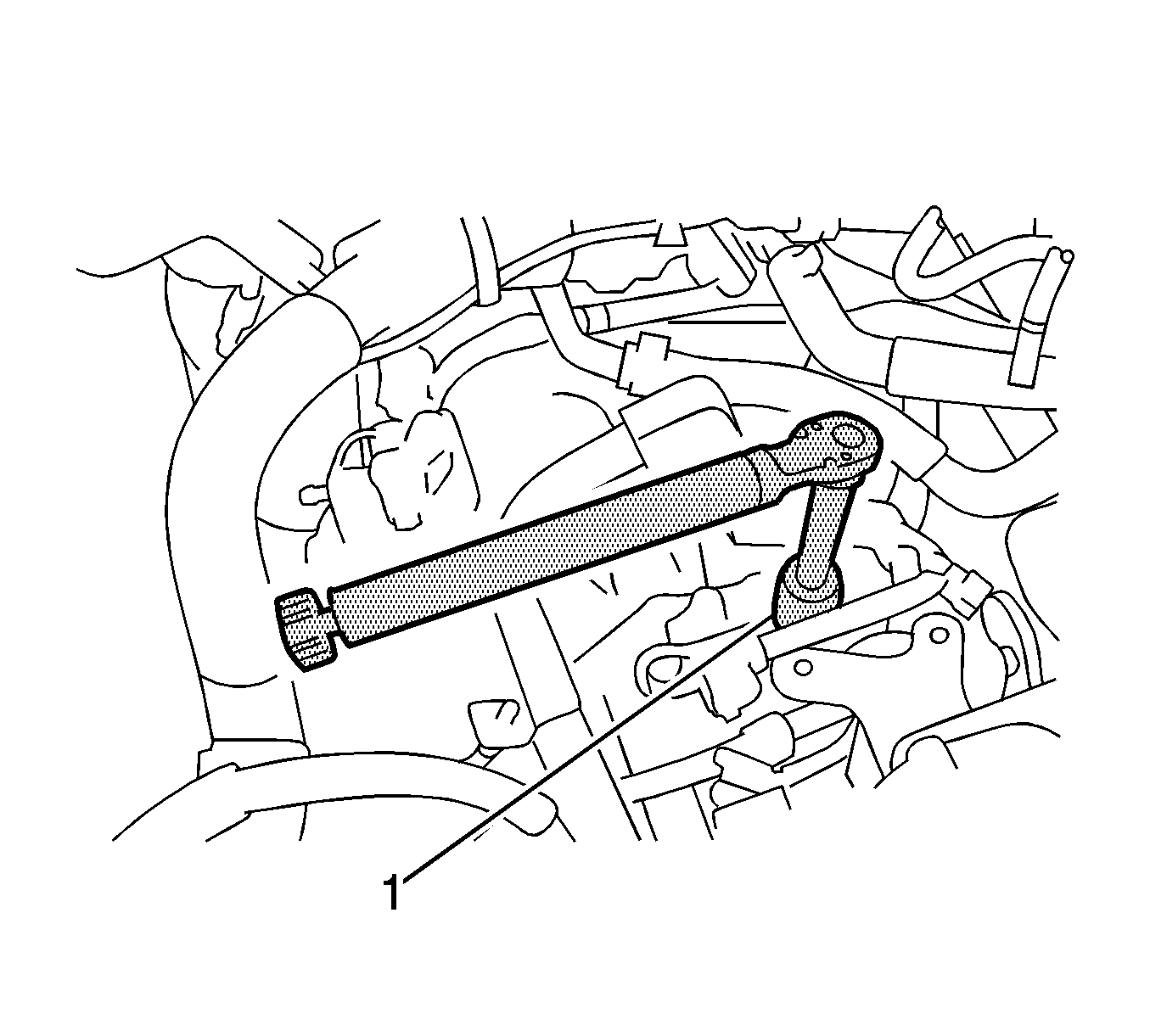

    Fig 1: Locating Back-Up Light Switch At Transaxle Case
    GM2010471Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution
  1. Install the back-up light switch and a new gasket to the transaxle case and tighten to 40 N.m (30 lb ft).

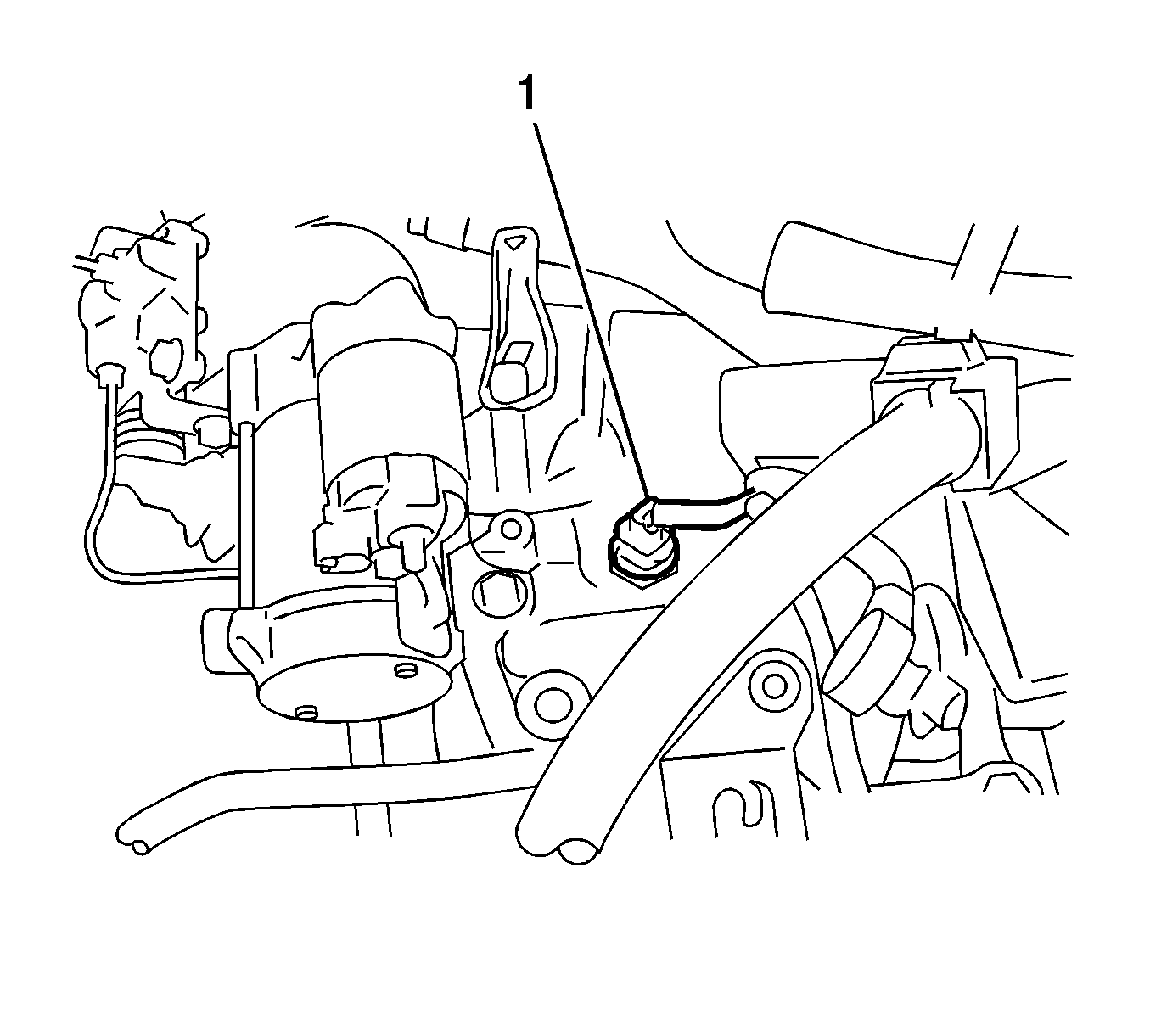

    2. Fig 2: Locating Back-Up Light Switch Connector
    GM2010460Courtesy of GENERAL MOTORS CORP.
  2. Connect the back-up light switch connector (1).

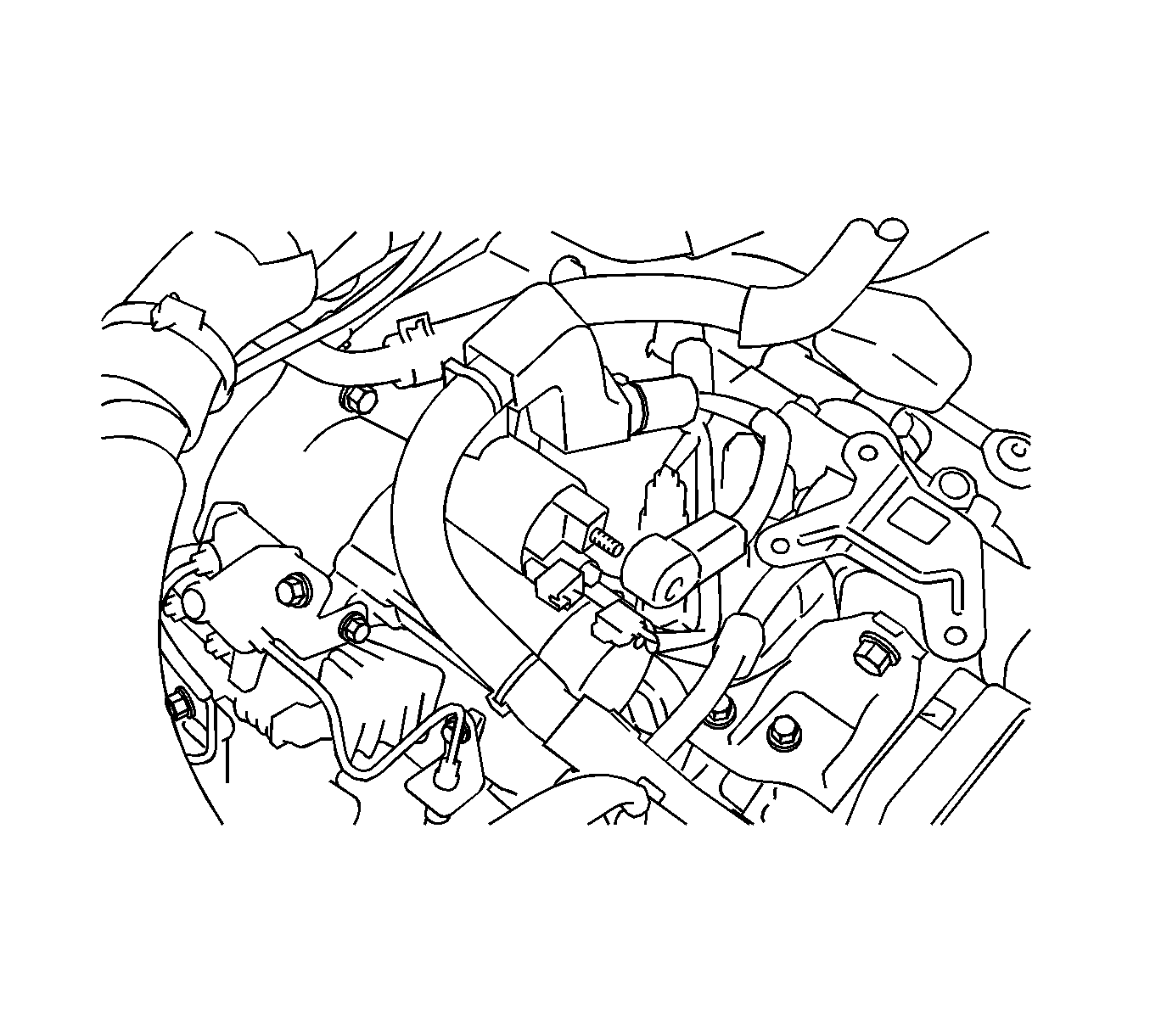

    3. Fig 3: View Of Wire Harness Clamp
    GM2010455Courtesy of GENERAL MOTORS CORP.
  3. Connect the wire harness to the wire harness clamp.

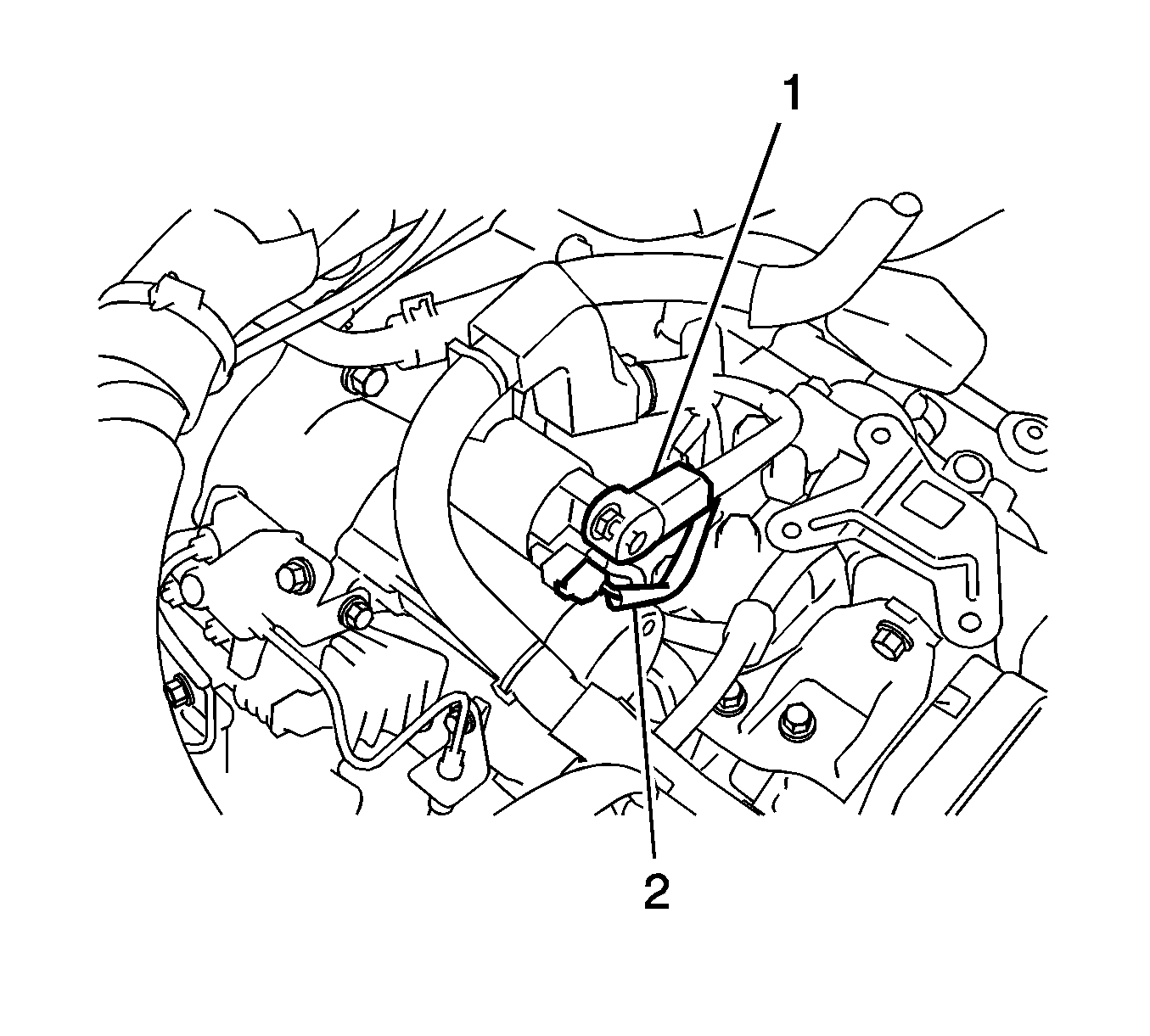

    4. Fig 4: Identifying Starter Assembly Terminal 50 Connector
    GM2010452Courtesy of GENERAL MOTORS CORP.
  4. Connect the terminal 50 connector (1) to the starter assembly.
  5. Connect the wire harness to terminal 30 and install the nut. Then, attach the terminal cap.
  6. Install the air cleaner assembly
  7. Install the engine cover assembly.
