Automatic Transmission Controls Schematics

WARNING: This page is about a different variant/trim than selected.

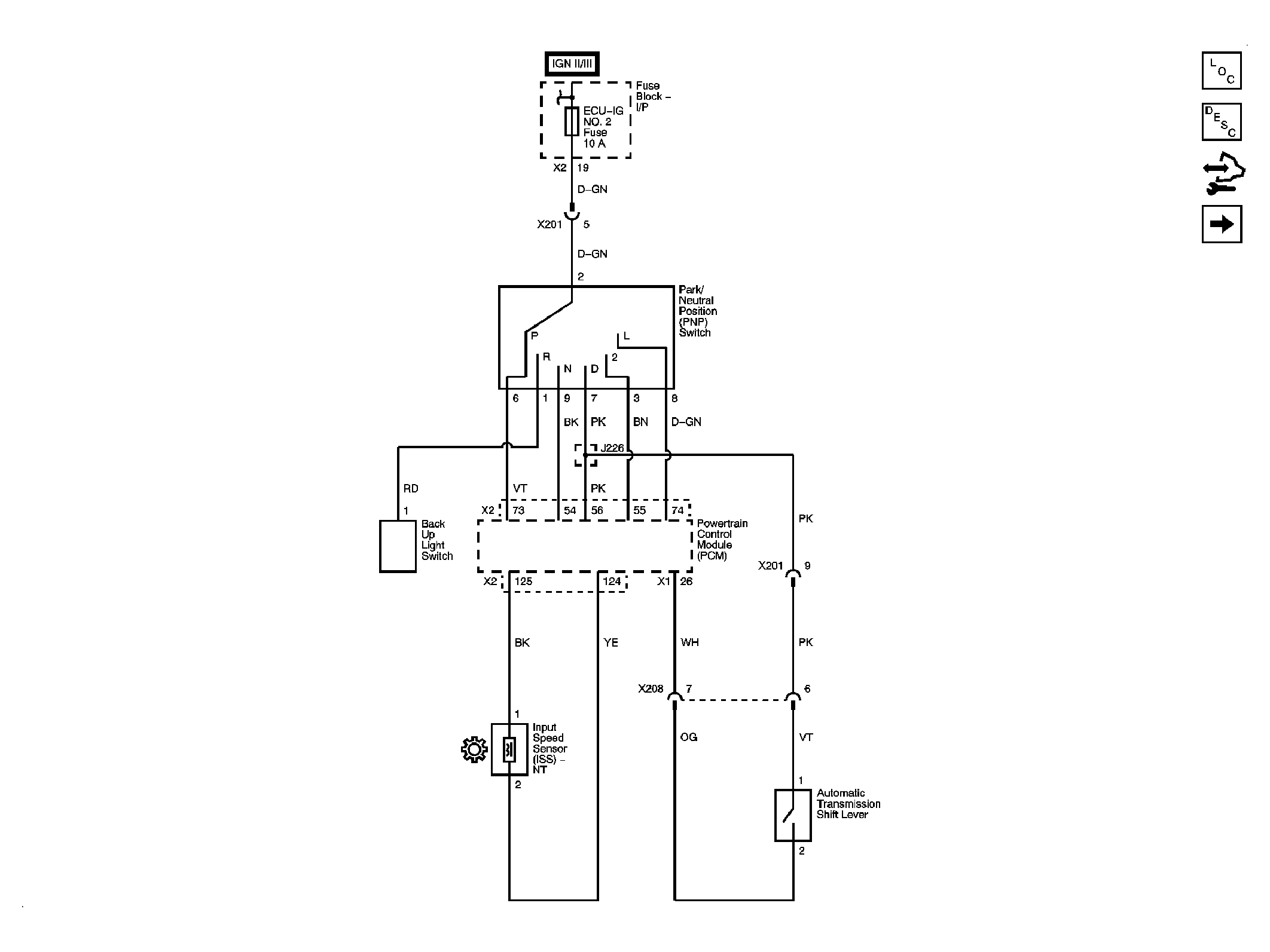

Fig 1: Power, PNP Switch, Shift Lever, Sensors
GM2036547Courtesy of GENERAL MOTORS CORP.

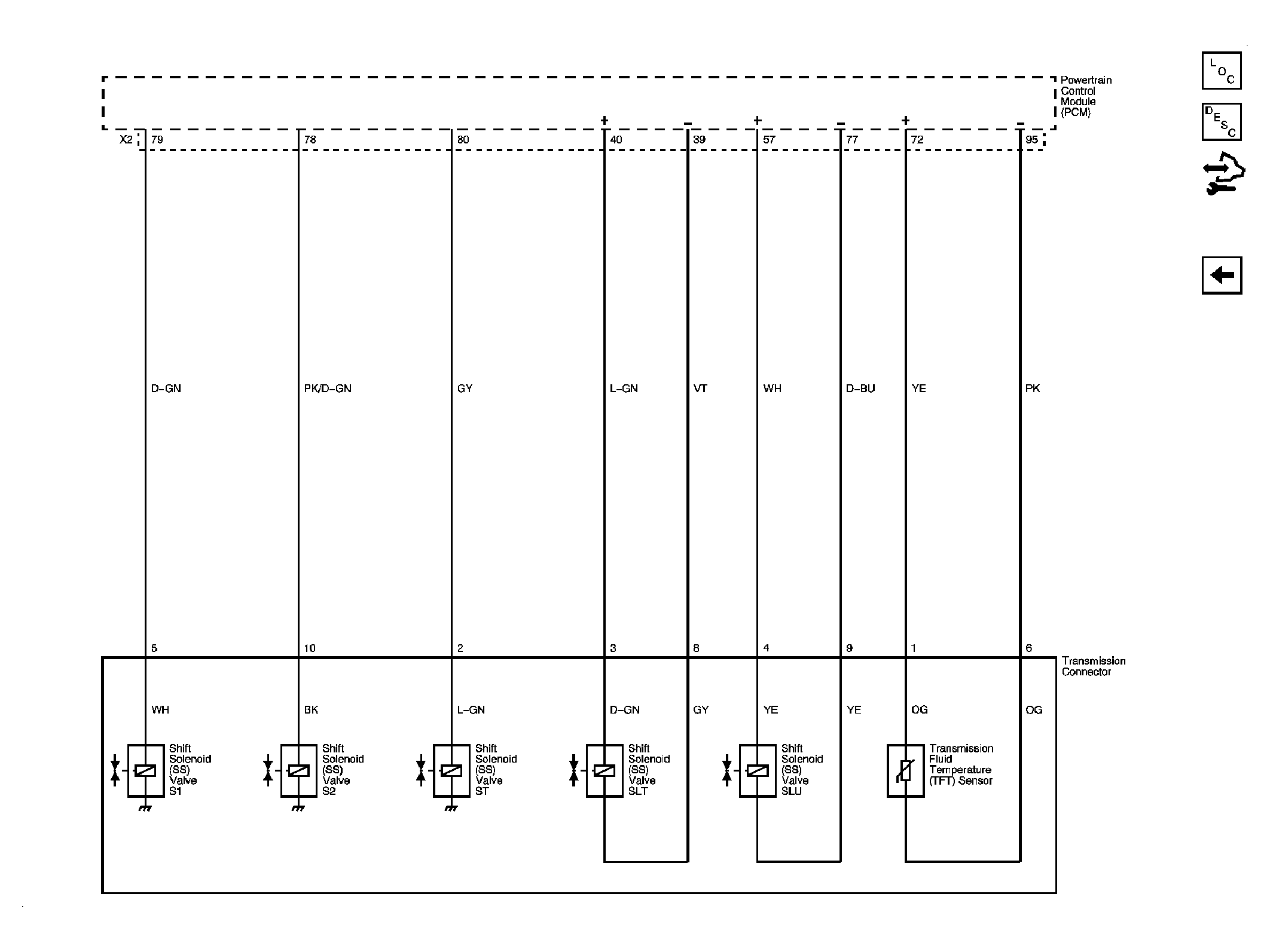

Fig 2: Transaxle Controls
GM2036548Courtesy of GENERAL MOTORS CORP.
