Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the No. 2 cylinder head cover.
  2. Remove the air cleaner cap sub-assembly.
  3. Remove the air cleaner case.

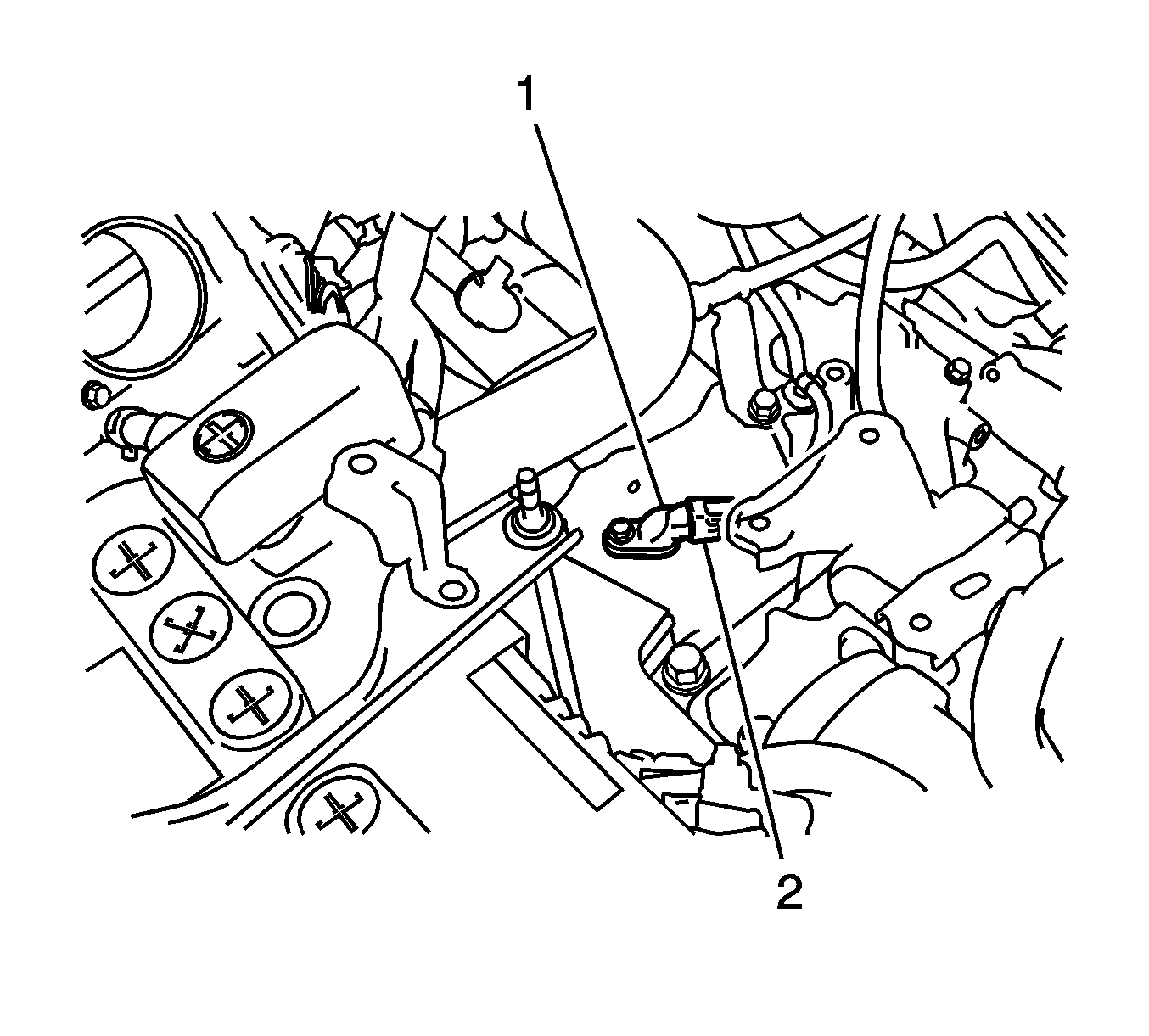

    4. Fig 1: Identifying Speed Sensor Connector & Bolt
    GM2011791Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the speed sensor connector (2).
  5. Remove the bolt and speed sensor (1).

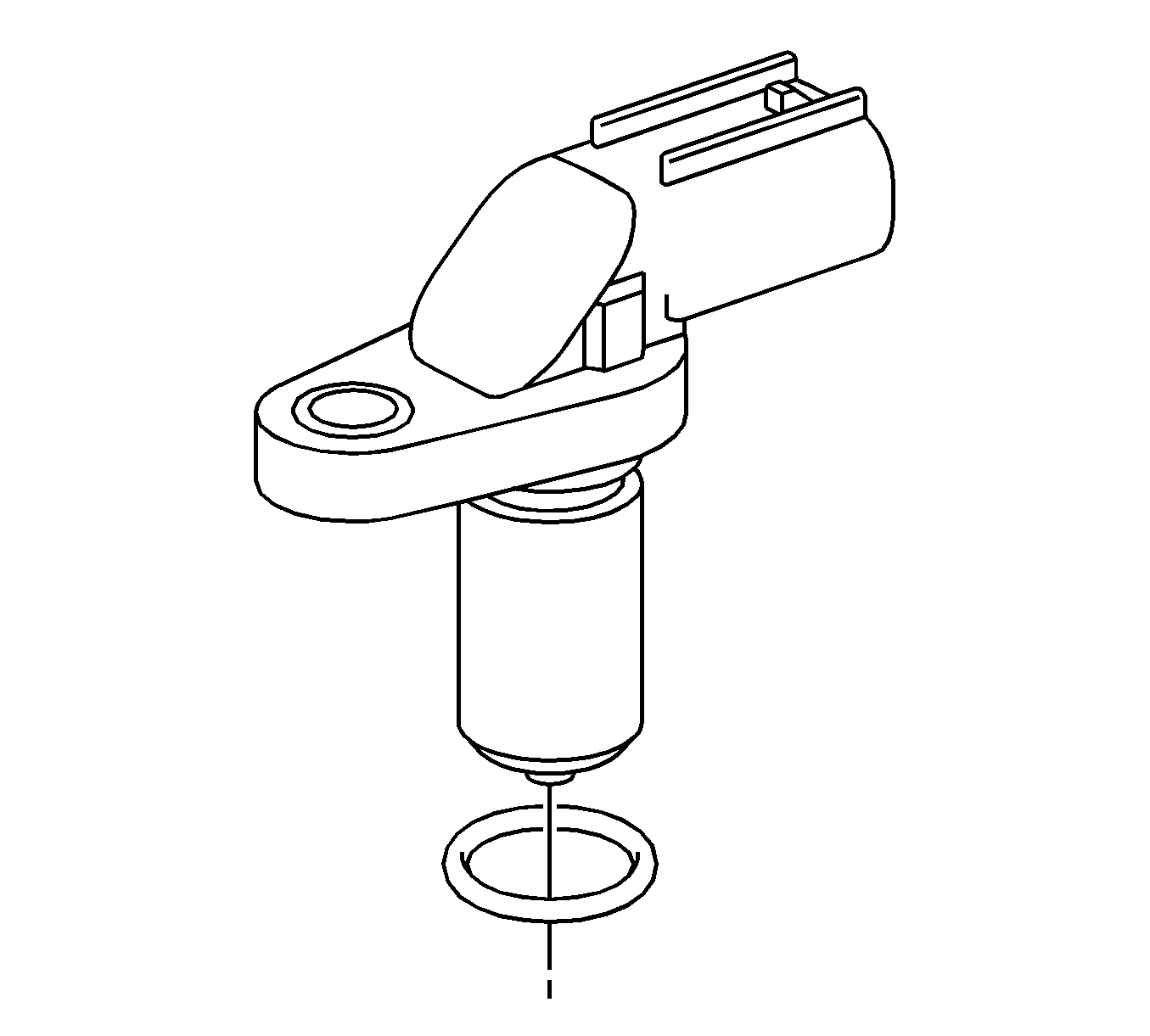

    6. Fig 2: View Of Speed Sensor O-Ring
    GM2011792Courtesy of GENERAL MOTORS CORP.
  6. Remove the O-ring from the speed sensor.
