Inspection Procedure

WARNING: This page is about a different variant/trim than selected.

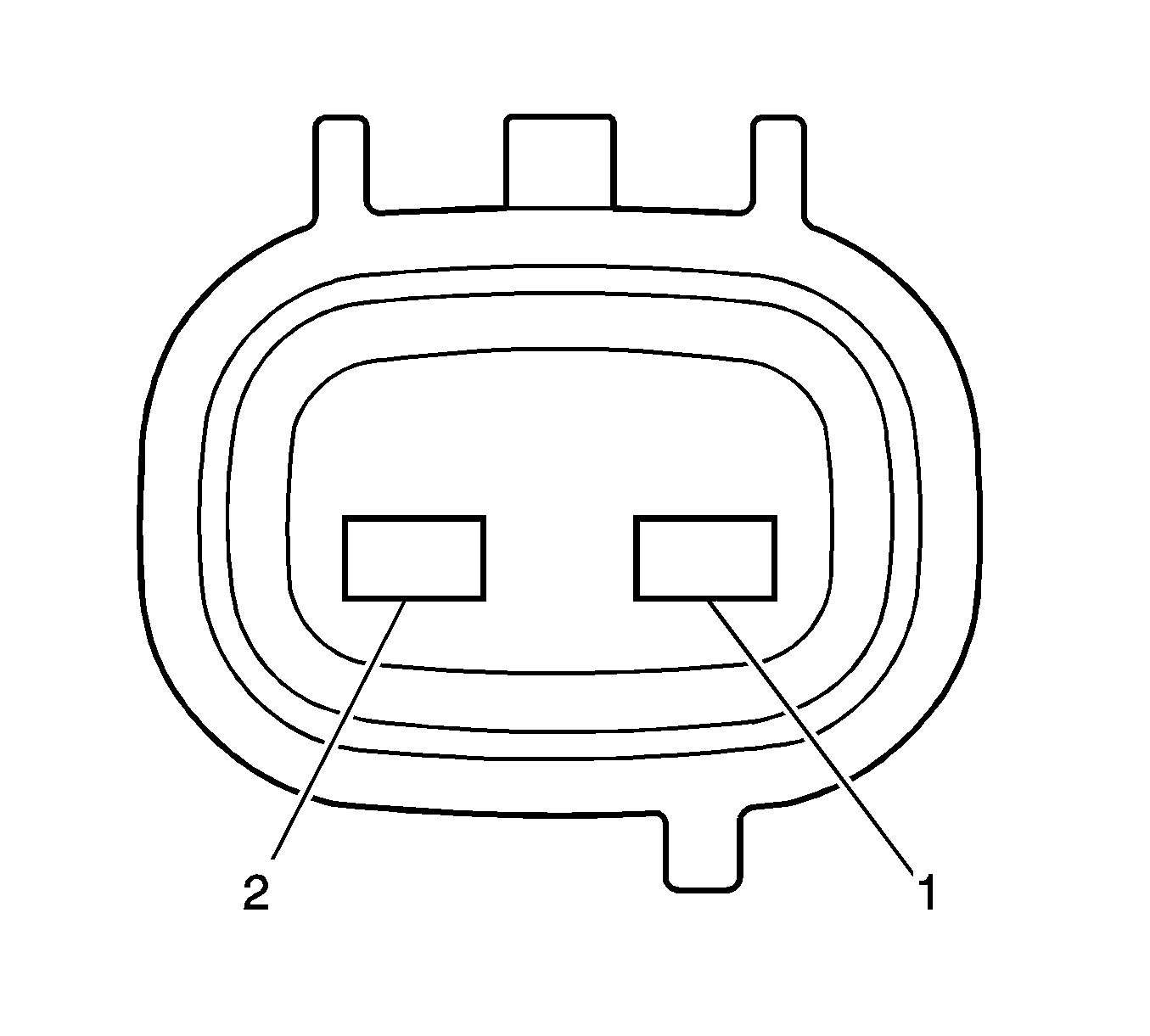

    Fig 1: View Of Speed Sensor
    GM2011794Courtesy of GENERAL MOTORS CORP.
  1. Inspect the speed sensor.
  2. Measure the resistance according to the value(s).

    Standard Resistance

    • Tester Connection: 1-2
    • Condition: 20°C (68°F)
    • Specified Condition: 560 to 680 Ω
  3. If the resistance value is not as specified, replace the speed sensor.
