Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the cable from the negative battery terminal.
  2. Remove the battery.
  3. Remove the battery tray.

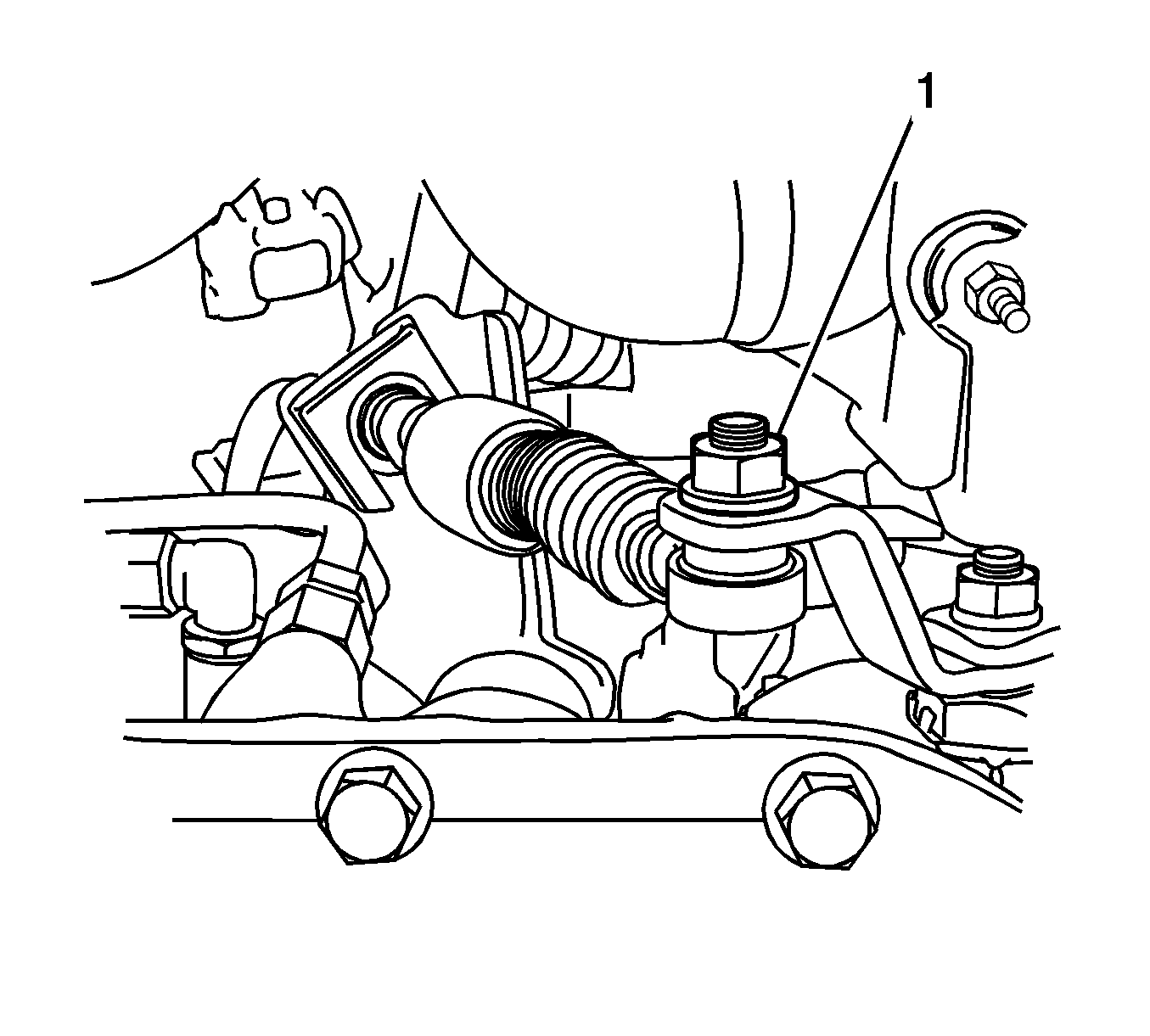

    4. Fig 1: Locating Control Cable Assembly Nut
    GM2011849Courtesy of GENERAL MOTORS CORP.
  4. Separate the transmission control cable assembly
  5. Remove the nut (1) and disconnect the control cable assembly from the control shaft lever.
  6. Remove the clip and disconnect the control cable assembly from the control cable bracket.

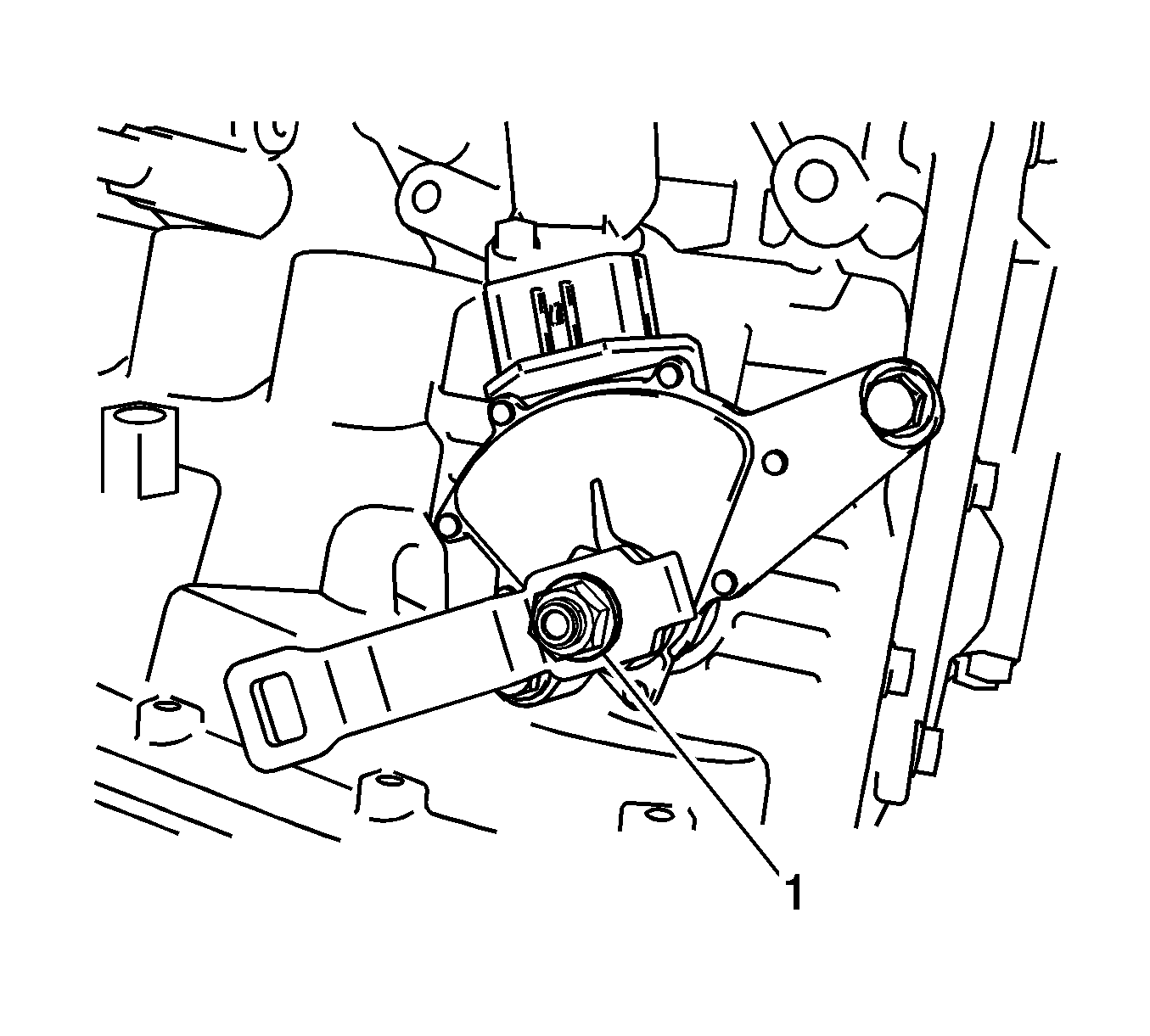

    7. Fig 2: Locating Control Shaft Lever Nut & Washer
    GM2011851Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the connector from the park/neutral position switch assembly.
  8. Remove the park/neutral position switch assembly.
  9. Remove the nut (1), washer and control shaft lever.

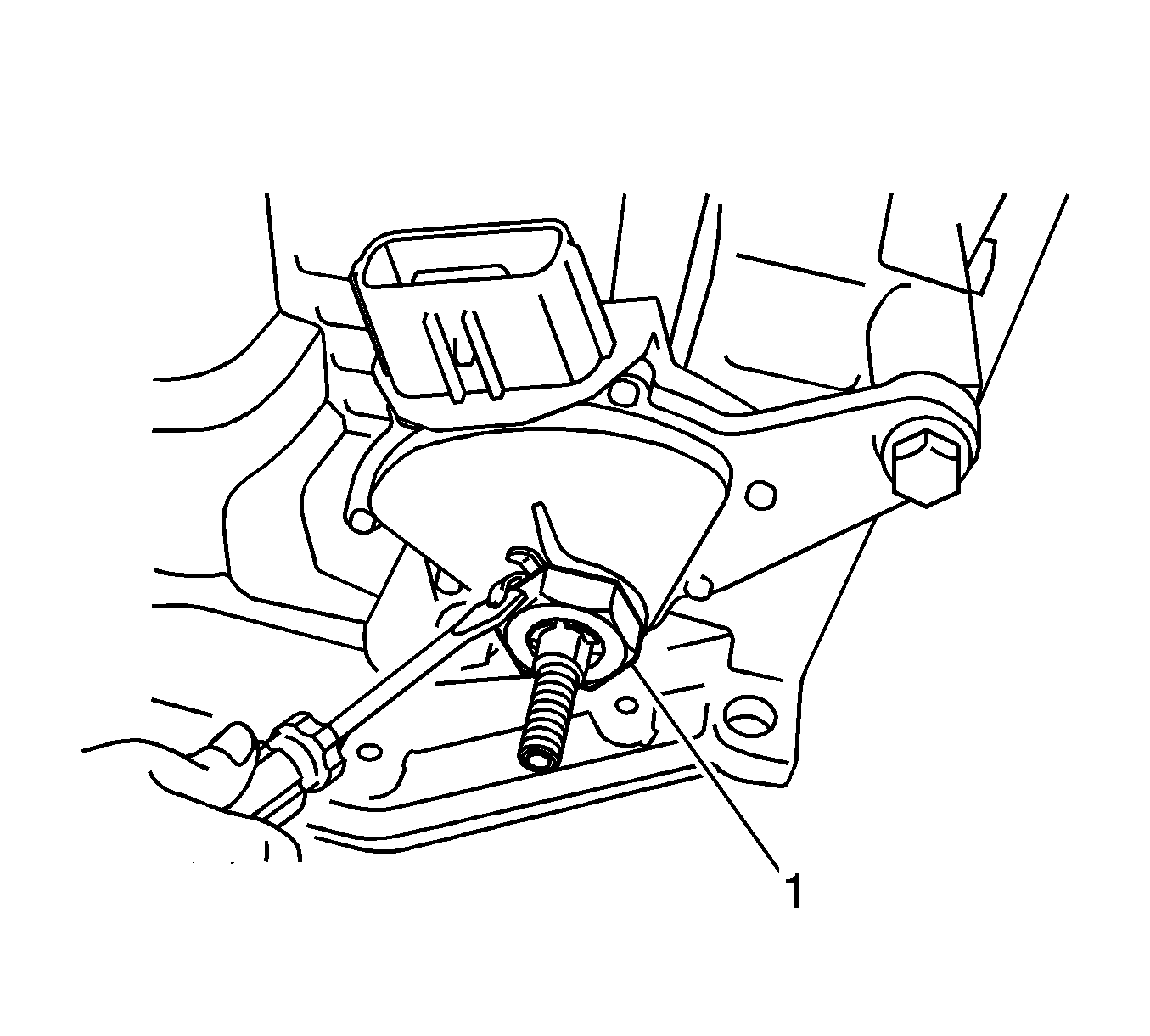

    10. Fig 3: Prying Out Lock Plate & Removing Manual Valve Shaft Nut
    GM2011852Courtesy of GENERAL MOTORS CORP.
  10. Pry out the lock plate and remove the manual valve shaft nut (1).

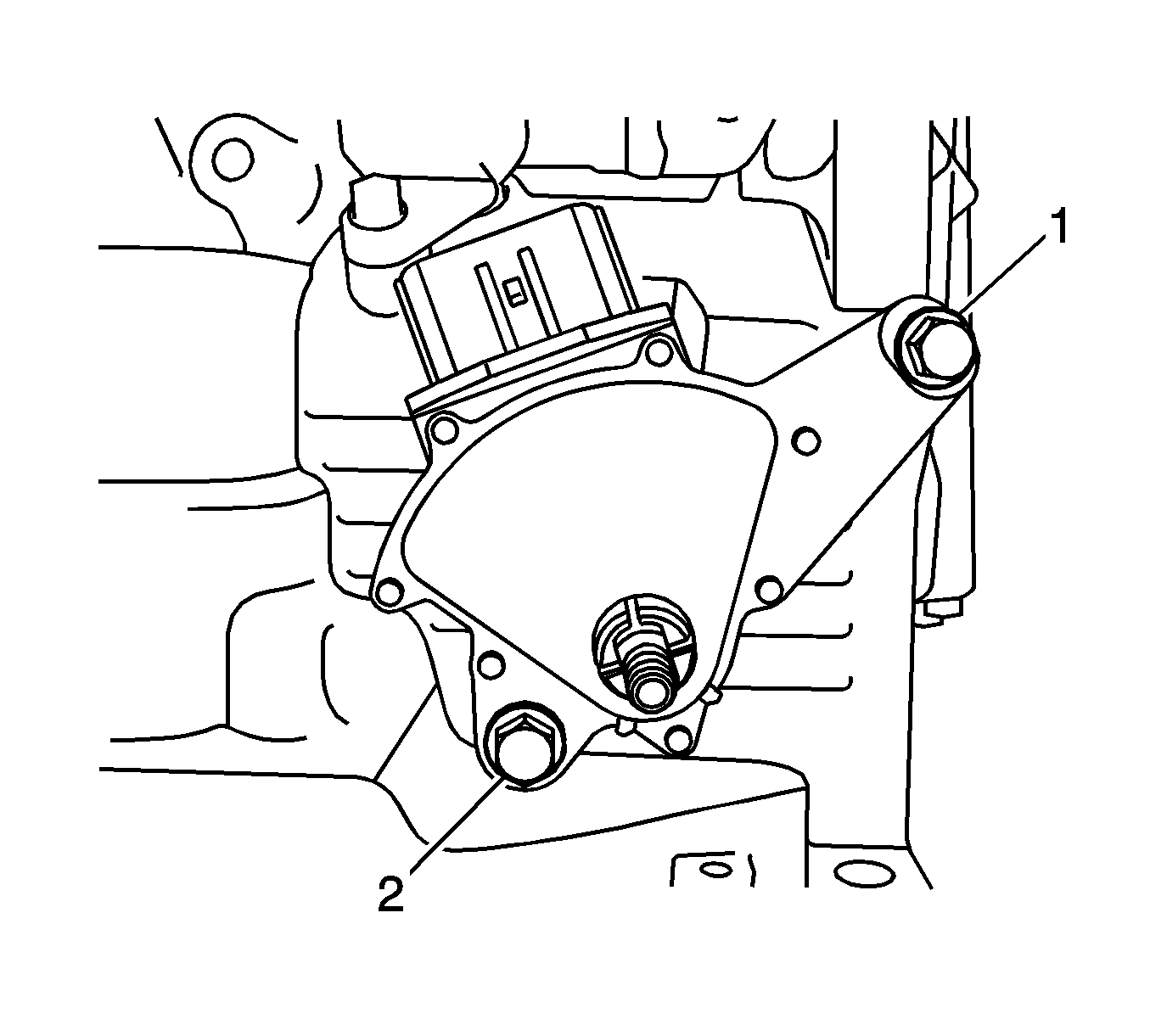

    11. Fig 4: Locating Park/Neutral Position Switch Assembly Bolts
    GM2011855Courtesy of GENERAL MOTORS CORP.
  11. Remove the 2 bolts (1, 2) and pull out the park/neutral position switch assembly.
